John Deere 6910

Last Updated: June 2024

Overview

The John Deere 6910 is a robust row-crop tractor designed for numerous farming tasks. This model comes with a 4x4 MFWD 4WD chassis, providing reliable traction for various agricultural applications. The hydraulically powered steering system facilitates maneuverability, while the tractor has a range of transmission options, including the John Deere PowrQuad, PowrShift, and AutoPowr, with forward gear options reaching up to 24. Under the hood, a turbocharged diesel engine designed by John Deere with six cylinders and a 414 cubic-inch displacement provides a solid 140 horsepower. The tractor’s optimal operation is seen at 2100 RPM, and it can navigate easily with its large radial tires, often sized at 16.9R28 for the front and 20.8R38 for the rear. The 6910 has a substantial operating weight of 11400 pounds, ensuring stability and effectiveness in fieldwork. Overall, this model is well-regarded for its durability, power, and versatility in the row-crop sector.

Key Specifications

Category: Row Crop

Power Output: 140

Transmission: PowrQuad, PowrShift, AutoPowr (Assuming the tractor might come with any of the mentioned transmission types)

Drive Type: 4WD

Operating Weight: 11400

Fuel Type: Diesel

Image Gallery

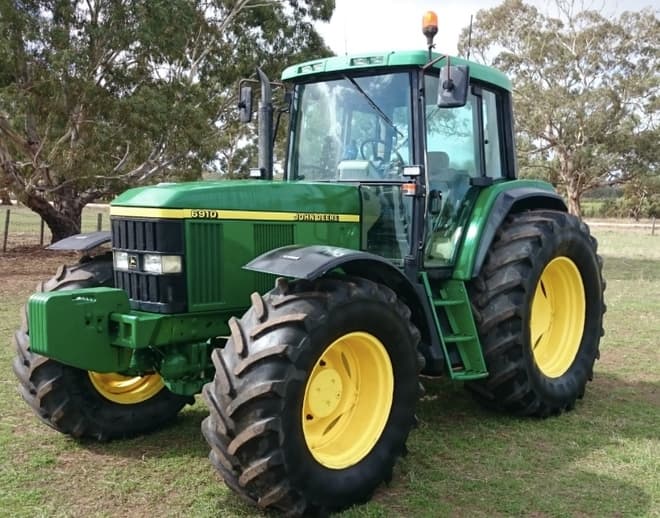

John Deere 6910 Tractor

John Deere 6910 vs. Similar Tractors

Power Output

Average

Greater than 48% of similar tractors.

Operating Weight

Average

Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: Unknown (Typically, large diesel engines are liquid-cooled, but this is not explicitly stated, so it remains unknown)
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 414
Bore (in): 4.19
Stroke (in): 5
Rated RPM: 2100
Power Output (hp): 140

Transmission

Type: PowrQuad, PowrShift, AutoPowr (Assuming the tractor might come with any of the mentioned transmission types)
Forward Gears: 24
Reverse Gears: Unknown (Given that there are multiple transmission types with different reverse gear counts, this remains unknown without specific information about which transmission is being referred to)
Total Gears: -

Dimensions

Length (in): 179.6
Width (in): 93
Height (in): 113.5
Operating Weight (lb): 11400

Power Take-Off (PTO)

PTO Type: Optional Transmission or Live PTO (Assumption based on the usage and type of tractor)
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 16.4
Front Tire Diameter (in): Unknown (The tire size could imply a certain range of diameters but not an exact figure)
Front Tire Width (in): Unknown (The specification as 16.9R28 indicates a nominal width of 16.9 inches)
Rear Tire Diameter (in): Unknown (The tire size could imply a certain range of diameters but not an exact figure)
Rear Tire Width (in): Unknown (The specification as 20.8R38 indicates a nominal width of 20.8 inches)
Front/Rear Rim Diameter (in): 28/38 (Inferred from tire specifications: 16.9R28 and 20.8R38, where the 'R' indicates radial and the number following 'R' is the rim diameter in inches)
Tire Type: Radial (Implied by the 'R' in the tire specification)
Manufacture - End Year: -
Hitch Type: Unknown (Rear Type II implies a three-point hitch but it is not specifically stated)
Hitch Category: Unknown (Category 3 is mentioned but is not explicitly linked to this model)
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (Implied by "Engine - Starter volts: 12")
Brake Type: -
Hydraulic System Type: Closed-center load sensing
