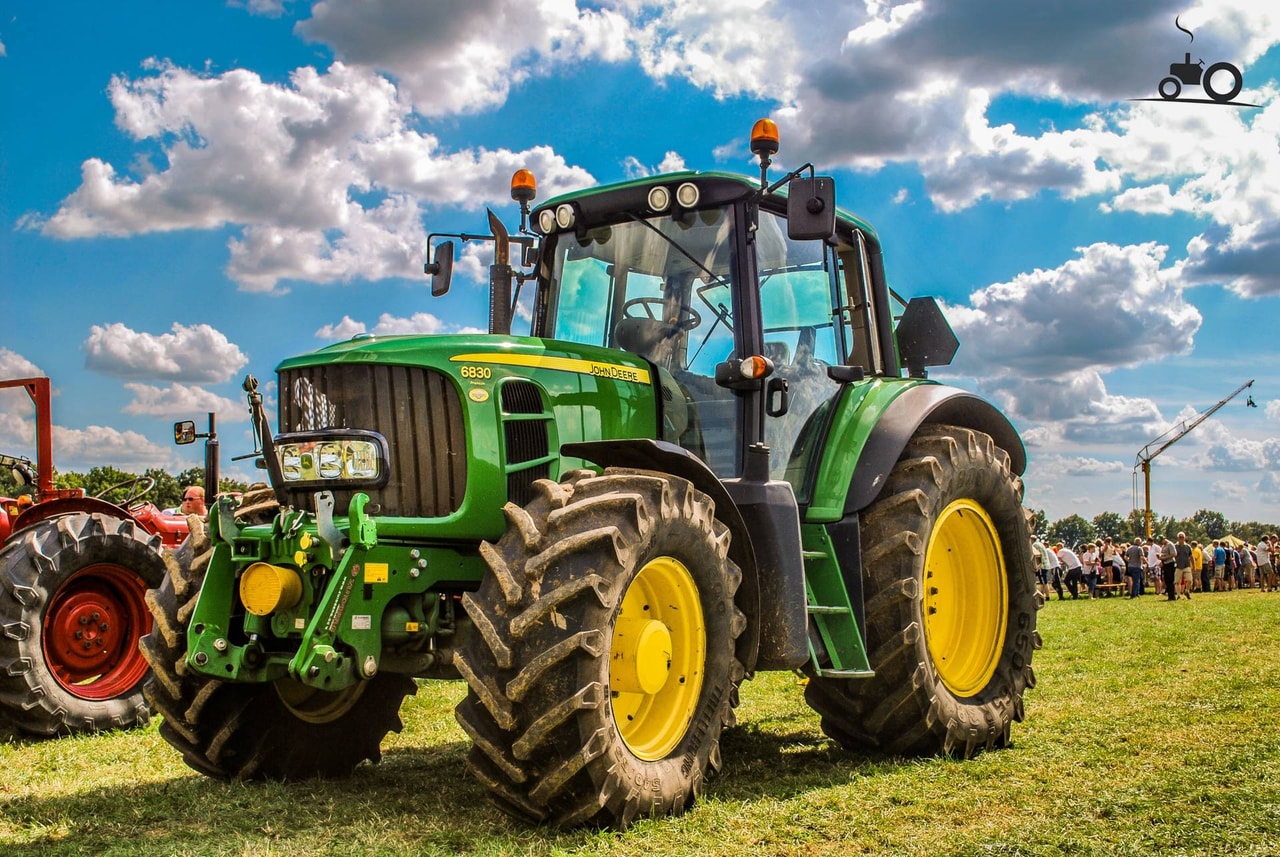

John Deere 6830

Last Updated: June 2024

Overview

The John Deere 6830 is a versatile utility tractor designed for various agricultural tasks. With a 6.8L six-cylinder turbocharged diesel engine, it provides a solid power output ranging from 135 to 147 horsepower, depending on the rating system used. It features a 20-speed partial power shift transmission, making it adaptable for different field conditions with the convenience of not needing to fully stop to change gears. The 4x4 MFWD 4WD chassis ensures improved traction on rough terrains. The tractor's liquid cooling system, along with a viscous fan and high-pressure common rail injection, highlights an advanced engine design. With a wheelbase of 104.3 inches and a hefty operating weight of 12,420 lbs, the 6830 is built for stability and durability in demanding farm operations. Standard tires for this model are ag type, with sizes 16.9R28 for the front and 20.8R38 for the rear. While maintaining the status of a workhorse, the tractor's dimensions and features ensure effective and efficient farming work.
Show more...

Key Specifications

Category: Utility

Power Output: 140

Transmission: Partial Power Shift

Drive Type: 4WD

Operating Weight: 12,420

Fuel Type: Diesel

John Deere 6830 vs. Similar Tractors

Power Output
Above Average
Greater than 90% of similar tractors.
Operating Weight
Poor
Greater than 5% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068HL281
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
12-valve
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
413.7
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
140

Transmission

Type
Partial Power Shift
Forward Gears
20
Reverse Gears
20
Total Gears
-

Dimensions

Length (in)
187.3
Width (in)
93.8
Height (in)
115.1
Operating Weight (lb)
12,420

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
29.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Three-Point Hitch II/IIIN
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
