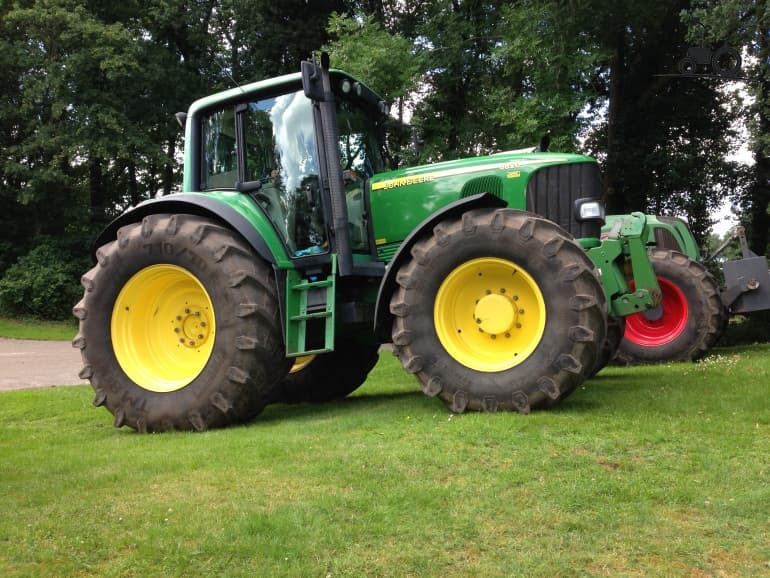

John Deere 6820 Premium

Last Updated: June 2024

Overview

The John Deere 6820 Premium is categorized as a utility tractor, featuring a four-wheel drive (4x4 MFWD 4WD) chassis with hydrostatic power steering. The passenger cabin layout, additional features, or safety systems included are not specified; these could greatly influence operator comfort and functionality. The lack of information about the manufacturing years prevents establishing its generational technology level. Key specifications like the PTO types and speeds, brake type, and dimensions of the tractor are not detailed. This might limit the ability to compare or confirm compatibility with various implements. However, the tractor is equipped with a robust John Deere 6068T six-cylinder, turbocharged intercooled diesel engine that delivers a power output of 135 hp at a rated RPM of 2100. It has a high torque of 456.0 lb-ft at 1400 RPM, which indicates its capacity to handle heavy-duty applications. The versatile transmission system supports both the PowrQuad Plus and AutoQuad II transmission types, offering 20 total gears for various working conditions. A closed center load sensing hydraulic system is installed, but further details on hydraulics are missing. It's operational weight is stated as 12,304 lbs, ensuring stability and traction. The rear hitch can lift an impressive 23,145 lbs, highlighting the tractor's considerable lifting power. The tire sizes fit agricultural standards, with front tires at 16.9R28 and rear tires at 20.8R38, although the widths and rim diameters are not provided. Overall, the John Deere 6820 Premium is a powerful tractor for large scale farming or utility work that requires significant lifting and pulling capacity.
Show more...

Key Specifications

Category: Utility

Power Output: 135

Transmission: Partial power shift

Drive Type: 4WD

Operating Weight: 12,304

Fuel Type: Diesel

John Deere 6820 Premium vs. Similar Tractors

Power Output
Above Average
Greater than 89% of similar tractors.
Hitch Capacity
Below Average
Greater than 14% of similar tractors.
Operating Weight
Poor
Greater than 5% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
414.1
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
135

Transmission

Type
Partial power shift
Forward Gears
-
Reverse Gears
-
Total Gears
20

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
12,304

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
23,145 lbs
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Closed center load sensing
