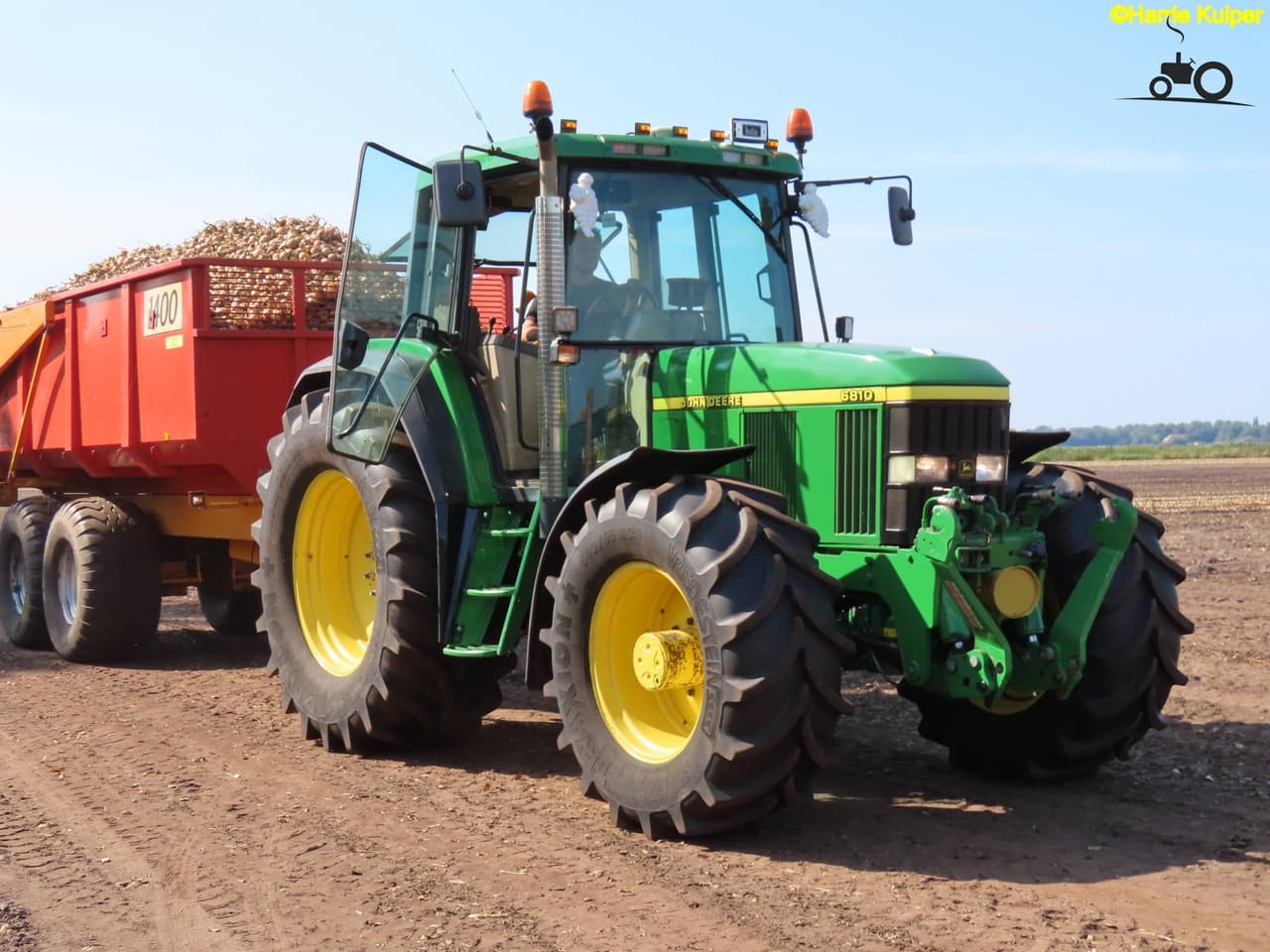

John Deere 6810

Last Updated: June 2024

Overview

The John Deere 6810 is a row-crop tractor that boasts a powerful 125 hp turbocharged diesel engine with a displacement of 414 cubic inches. It features a 4x4 full-time four-wheel drive system (MFWD), providing dependable traction for various farming tasks. Equipped with hydrostatic power steering, operating this tractor is made easier and more efficient. The chassis of the 6810 provides a solid foundation for an array of agricultural applications, and with a wheelbase of 104.3 inches, it strikes a balance between stability and maneuverability. The operator can select from 20 forward gears through its full power shift transmission, adapting to different working conditions with ease. With a substantial operating weight of 11,400 lbs, the 6810 is built to handle heavy-duty tasks reliably. However, specifics such as the type of hitch, PTO speeds, brake type, and operator station type remain unspecified. The John Deere 6810 presents a versatile and powerful tractor option for those needing robust performance in the field.
Show more...

Key Specifications

Category: Row Crop

Power Output: 125

Transmission: Full power shift

Drive Type: MFWD / 4WD

Operating Weight: 11400

Fuel Type: Diesel

John Deere 6810 vs. Similar Tractors

Power Output
Average
Greater than 39% of similar tractors.
Operating Weight
Average
Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
414
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
125

Transmission

Type
Full power shift
Forward Gears
20
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
179.6
Width (in)
93
Height (in)
113.5
Operating Weight (lb)
11400

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD / 4WD
Steering Type
Power/Hydrostatic power
Coolant Capacity (qts)
16.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 2
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed-center load-sensing
