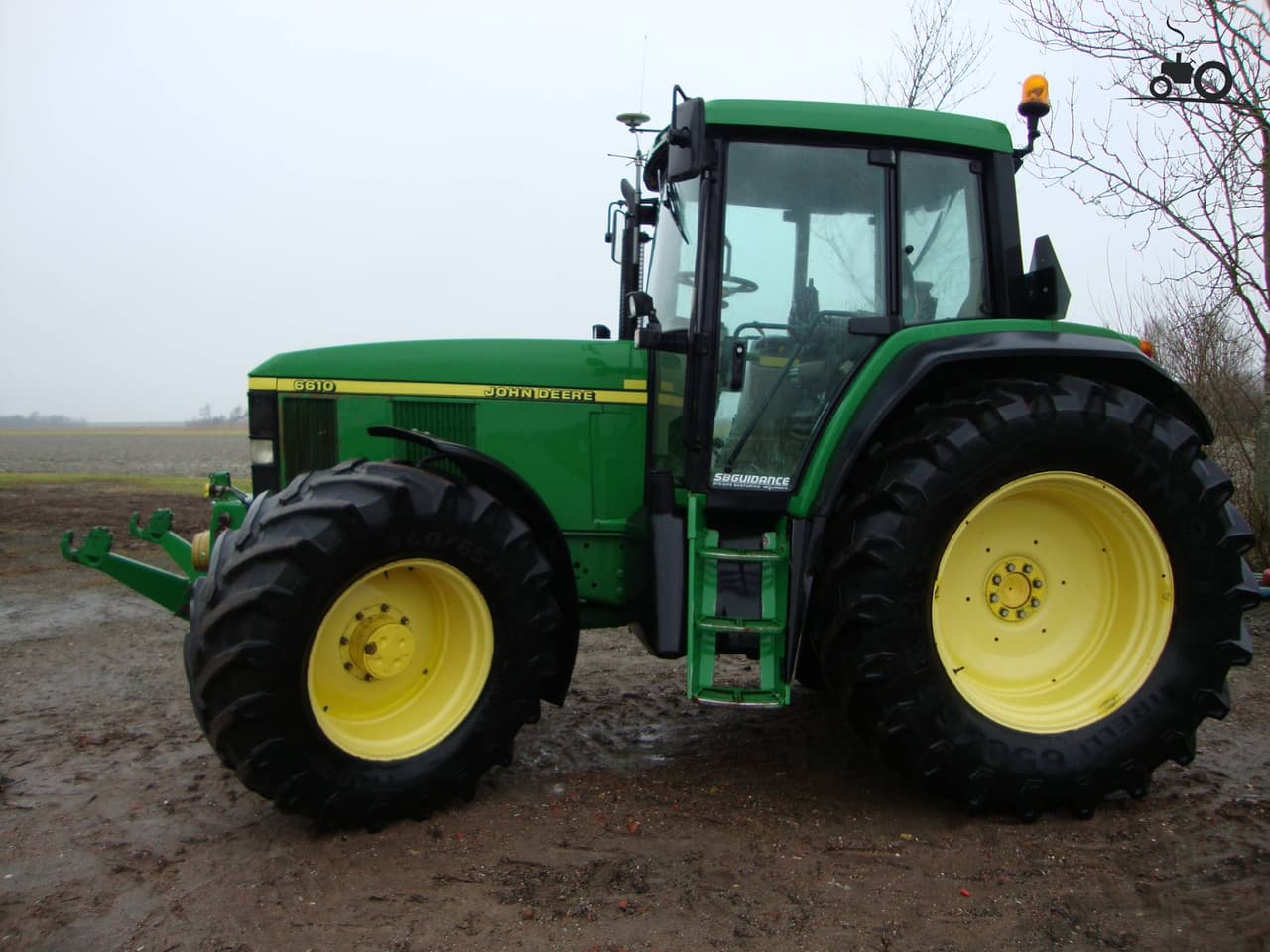

John Deere 6610

Last Updated: June 2024

Overview

The John Deere 6610 is a row-crop tractor known for its robustness and versatility, suitable for a variety of farming tasks. This model features a 4-wheel drive chassis with a Mechanical Front Wheel Drive (MFWD) and is powered by a turbocharged 6-cylinder, 414-cubic-inch diesel engine delivering 114 horsepower. The tractor's transmission offers 24 forward and reverse gears, accommodating various speeds and tasks, while its hydraulic system is of the closed-center load sensing type, enhancing efficiency and operator control. The sizable wheelbase of 104.3 inches provides stability during operation, and with a base operating weight of 10,400 pounds, the tractor is well-sized for row-crop work. Practical details such as the front axle clearance of 20.5 inches allows for good maneuverability in diverse farm conditions. The 6610 model maintains the signature John Deere build quality famous among farmers and agriculturists worldwide.
Show more...

Key Specifications

Category: Row Crop

Power Output: 114

Drive Type: 4WD

Operating Weight: 10400

Fuel Type: Diesel

John Deere 6610 vs. Similar Tractors

Power Output
Average
Greater than 31% of similar tractors.
Operating Weight
Average
Greater than 37% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
414
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
114

Transmission

Type
-
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
178.5
Width (in)
91.3
Height (in)
110.6
Operating Weight (lb)
10400

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
13.6
Front Tire Diameter (in)
26
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed-center load sensing
