John Deere 6605

Last Updated: June 2024

Overview

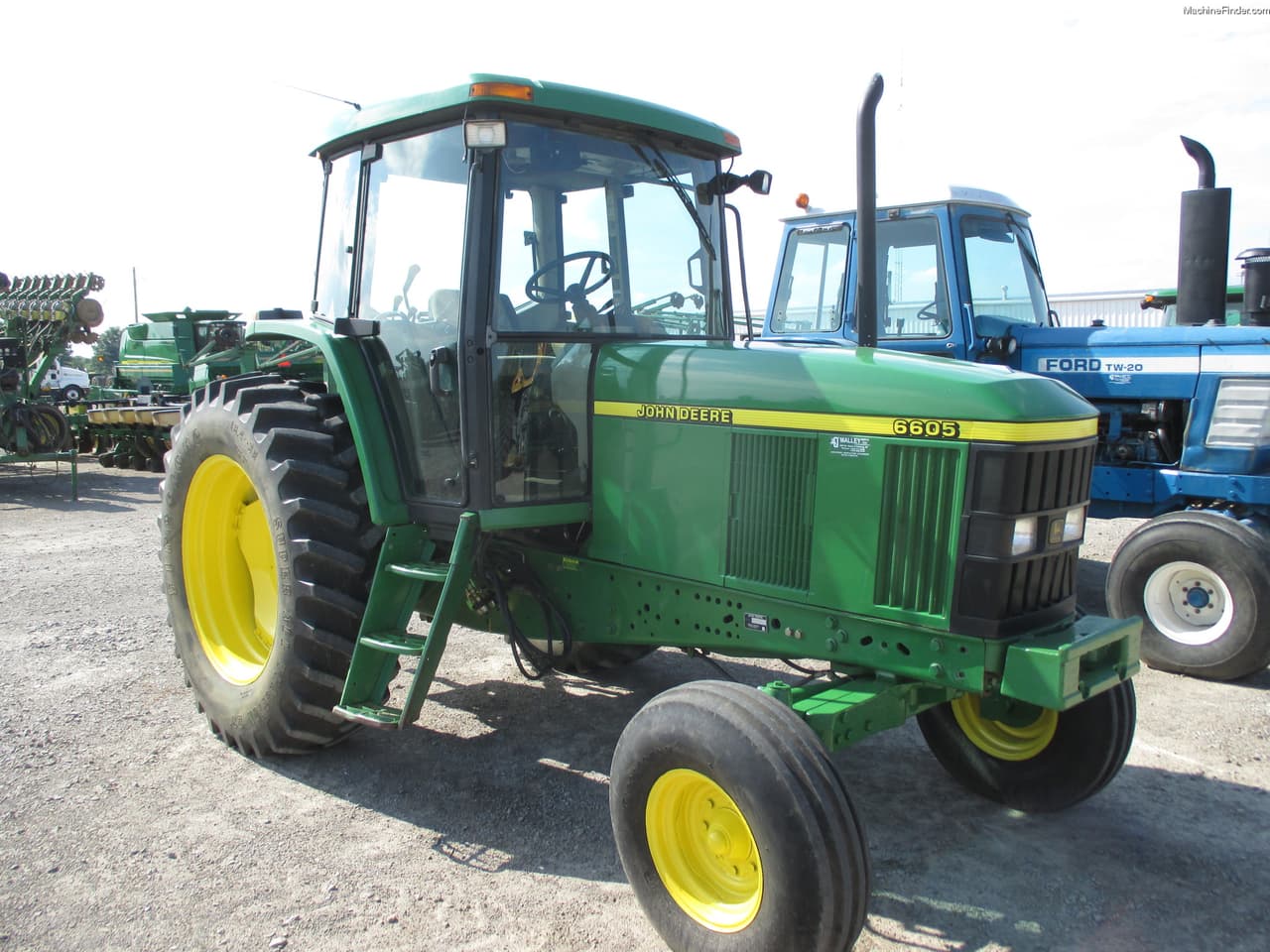

The John Deere 6605 is a versatile utility tractor manufactured by John Deere in Germany between 1998 and 2002. This model can come equipped with either a two-wheel-drive (4x2) or four-wheel-drive (4x4) system and is steered through a power steering system for ease of handling. It is powered by a turbocharged, six-cylinder, John Deere 6068 diesel engine with a 414 cubic inch (6.8 L) displacement, capable of delivering between 94.9 to 121 horsepower, depending on the specific engine configuration. The tractor can be equipped with one of two transmission options: a fully synchronized gearbox with 12 forward and 4 reverse gears, or a power shuttle transmission with 16 forward and reverse gears. Its hydraulic system operates under a closed-center flow-compensated type and the tractor provides a three-point hitch system at the rear with a lift capacity of 5,920 lbs, which is suitable for a wide range of attachments and implements. Operational comfort is provided by either a two-post foldable ROPS or an optional enclosed cab, while maintenance is simplified by electric starting and hydraulic wet disc brakes.
Show more...

Key Specifications

Category: Utility

Power Output: 94.9 - 121 (Depending on the source)

Transmission: Fully synchronized or Power shuttle

Drive Type: 2WD or 4WD

Operating Weight: 8776 to 10252

Fuel Type: Diesel

John Deere 6605 vs. Similar Tractors

Power Output
Above Average
Greater than 78% of similar tractors.
Hitch Capacity
Below Average
Greater than 12% of similar tractors.
Operating Weight
Excellent
Greater than 93% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
414
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
94.9 - 121 (Depending on the source)

Transmission

Type
Fully synchronized or Power shuttle
Forward Gears
12 (SyncroVantage) or 16 (Power Reverser)
Reverse Gears
4 (SyncroVantage) or 16 (Power Reverser)
Total Gears
-

Dimensions

Length (in)
177.2
Width (in)
-
Height (in)
112.6 (ROPS)
Operating Weight (lb)
8776 to 10252

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
2WD or 4WD
Steering Type
Power
Coolant Capacity (qts)
13.7 (ROPS) or 16.4 (Cab)
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2002
Hitch Type
Three-Point Hitch
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
5,920 lbs
Operator Station Type
Two-post foldable ROPS or Cab (optional)
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Closed-center flow-compensated
