John Deere 6600

Last Updated: June 2024

Overview

The John Deere 6600 is a row-crop tractor that was part of the 6000 series. Manufactured by John Deere in Germany from 1993 to 1997, it comes equipped with a turbocharged, six-cylinder diesel engine that produces 110 hp and power shift transmission. Notable features for the John Deere 6600 include power steering, wet disc brakes, a standard cab with air-conditioning, and a closed center hydraulic system. It is designed with a 4x4 MFWD 4WD chassis, supporting operation in diverse farm operations with ease of maneuverability and versatility, presenting solid lifting and hauling capabilities.

Key Specifications

Category: Row Crop

Power Output: 110

Transmission: Partial power shift

Drive Type: MFWD 4WD

Operating Weight: 10250

Fuel Type: Diesel

Image Gallery

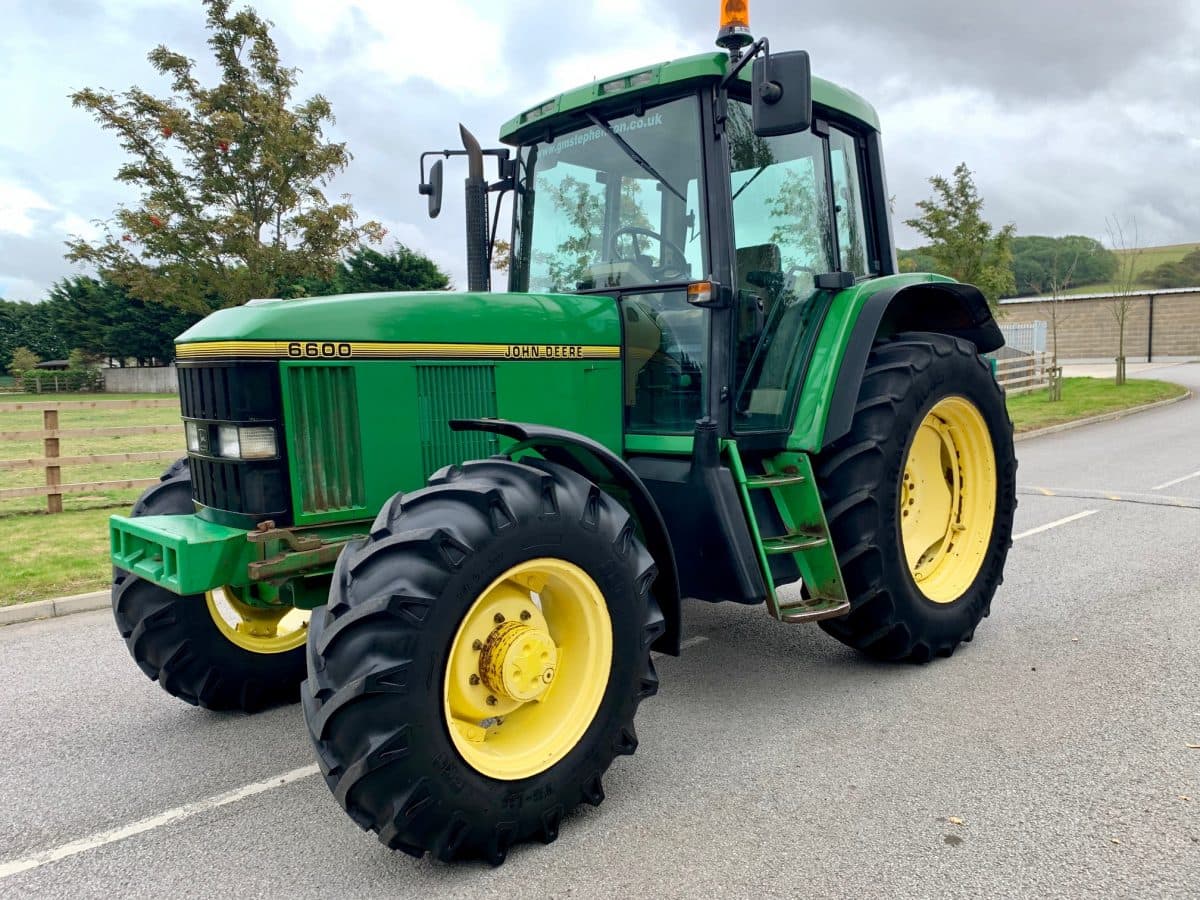

John Deere 6600 Tractor

John Deere 6600 vs. Similar Tractors

Power Output

Below Average

Greater than 29% of similar tractors.

Operating Weight

Average

Greater than 35% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 6068
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 359
Bore (in): 4.17
Stroke (in): 4.33
Rated RPM: 2100
Power Output (hp): 110

Transmission

Type: Partial power shift
Forward Gears: 20
Reverse Gears: -
Total Gears: -

Dimensions

Length (in): 177.2
Width (in): 90.9
Height (in): 110.6
Operating Weight (lb): 10250

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): 540E (assumed based on standard John Deere options)

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1997
Hitch Type: -
Hitch Category: III/IIIN
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Cab (standard) with air-conditioning
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Closed center
