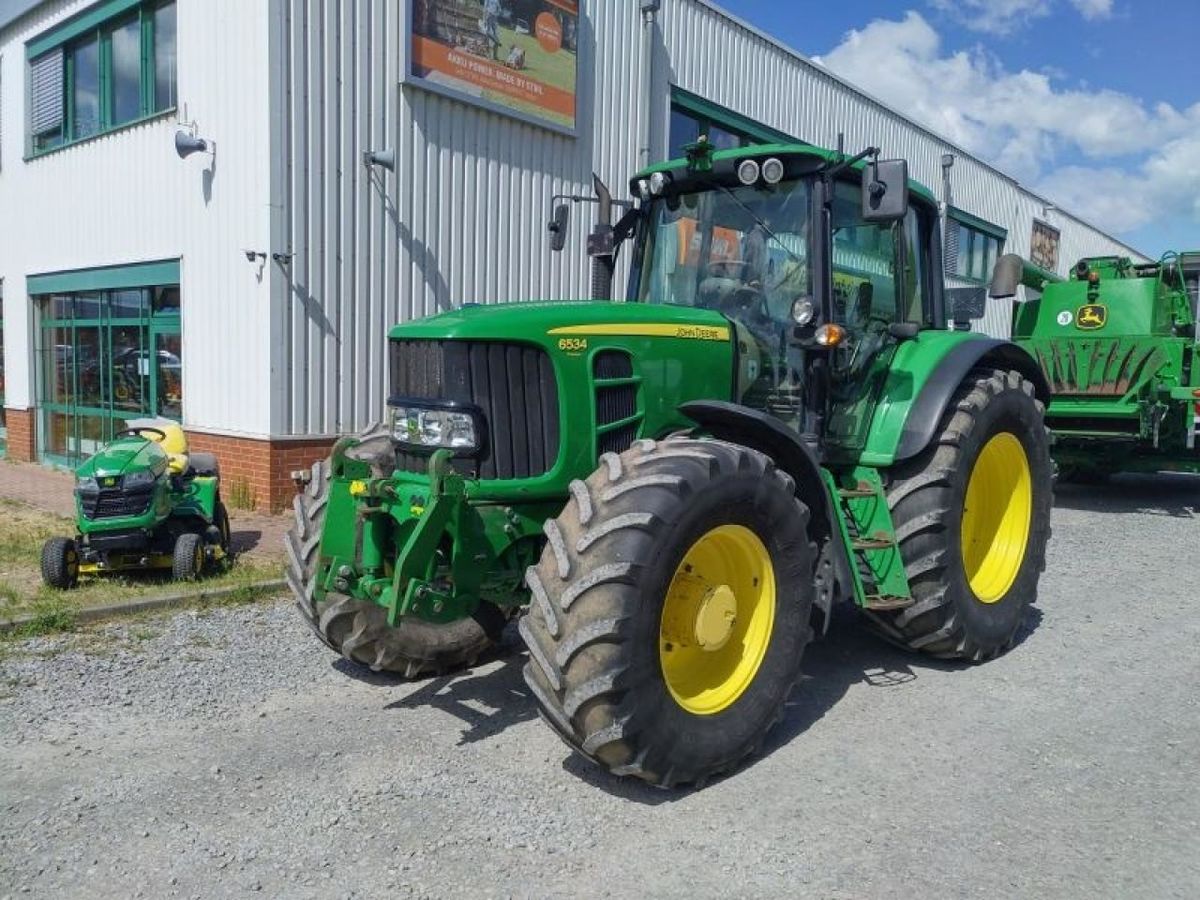

John Deere 6534 Premium

Last Updated: June 2024

Overview

The John Deere 6534 Premium is a 4-wheel-drive tractor that embodies a blend of power and advanced technology. At its core lies the John Deere PowerTech Plus 4V-CR engine, a 4-cylinder turbocharged diesel power unit with a displacement of 276.4 cubic inches, delivering between 120 to 134 horsepower, depending on the rating considered. It's equipped with a 24-speed partial power shift transmission—a notable choice for versatility in field operations, though an infinitely variable transmission (IVT) option also exists for those preferring that linearity and precision. Its Tier III emission compliance marks it as environmentally considerate for its manufacturing period, utilizing exhaust gas recirculation (EGR) to reduce emissions. Cooling is managed by a viscous fan liquid-cooled system, ensuring optimal engine temperature during heavy operation. It is designed to handle demanding tasks, reflected in its substantial operating weight of 10,910 lbs and maximum allowable weight of 20,940 lbs. The John Deere 6534 Premium functions on a hydraulic system that is load-sensing and pressure-flow compensating, tailored to assist with a variety of attachments and implements. While specific details on the hitch and power take-off (PTO) system are not provided, it does feature a Category 3 hitch which indicates robust lifting capability.
Show more...

Key Specifications

Power Output: 120, 125 (Rated); 129, 134 (Maximum)

Transmission: Partial Power Shift, Infinitely Variable Transmission (IVT)

Drive Type: 4WD

Operating Weight: 10,910

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
John Deere
Model
PowerTech Plus 4V-CR
Cooling Type
Viscous Fan Liquid-cooled
Cylinder Orientation
-
Valve Configuration
16-valve
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
276.4
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
120, 125 (Rated); 129, 134 (Maximum)

Transmission

Type
Partial Power Shift, Infinitely Variable Transmission (IVT)
Forward Gears
24, Infinite (IVT)
Reverse Gears
24, Infinite (IVT)
Total Gears
24 (Partial Power Shift), Infinite (IVT)

Dimensions

Length (in)
168.9
Width (in)
91.2
Height (in)
108
Operating Weight (lb)
10,910

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
25.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric, 12 volts
Brake Type
-
Hydraulic System Type
Load-sensing pressure-flow compensating (PFC)
