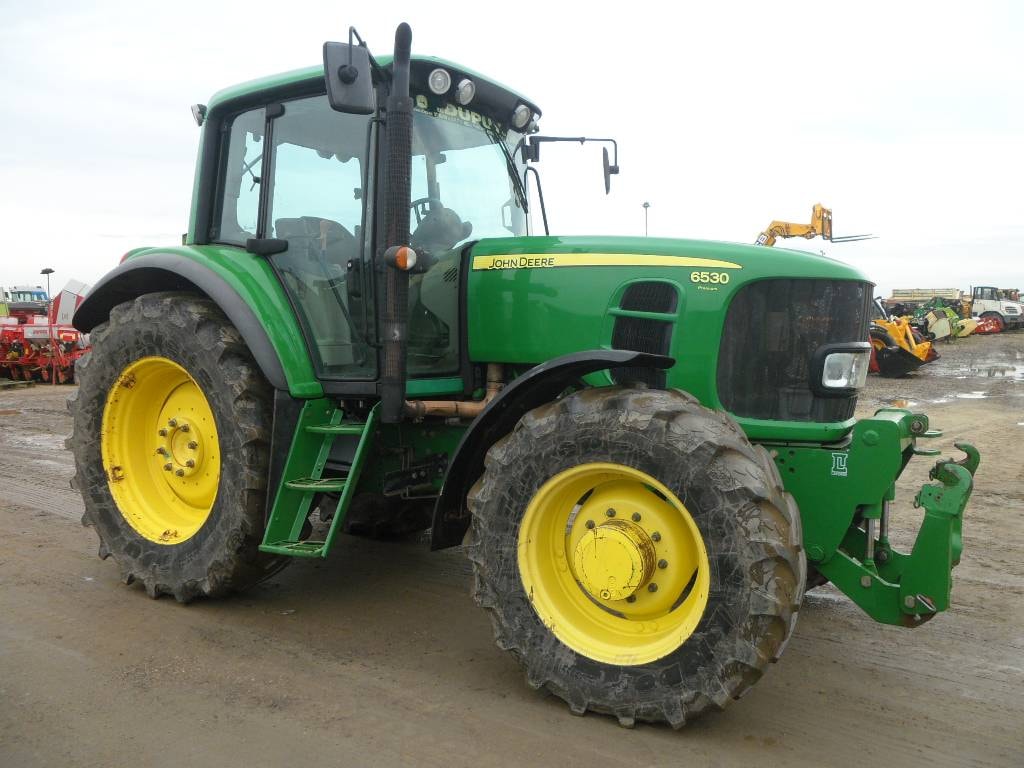

John Deere 6530 Premium

Last Updated: June 2024

Overview

The John Deere 6530 Premium is a 4-wheel drive tractor that is part of John Deere's 6030 series, designed to meet a variety of tasks on the farm with its multiple transmission options, including PowrQuad Plus, AutoQuad Plus, Creeper, and AutoPowr. Its powerful John Deere 6068HL480 engine is a 6-cylinder, 24-valve, turbocharged diesel unit with liquid cooling, providing several power output ratings ranging from 115 to 128 horsepower, depending on the testing standard. The tractor's high-pressure common rail fuel injection system and viscous fan cooling system are key components contributing to its engine efficiency. The tractor is also designed with emissions in mind, featuring a Tier III emission level with exhaust gas recirculation (EGR) technology. Transmission options for the 6530 Premium indicate versatility for various tasks, from standard field work to specialized operations requiring the Creeper gear. Furthermore, the tractor's dimensions and weight make it substantial but maneuverable, with a notable wheelbase of 104.3 inches contributing to its stability.
Show more...

Key Specifications

Power Output: Multiple ratings (115 ECE R24, 120 EC 97/98, 123 ECE R24 Max, 128 EC 97/68 Max)

Transmission: Multiple options (PowrQuad Plus, AutoQuad Plus, Creeper, AutoPowr)

Drive Type: 4WD

Operating Weight: 11,200

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068HL480
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
413.7
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
Multiple ratings (115 ECE R24, 120 EC 97/98, 123 ECE R24 Max, 128 EC 97/68 Max)

Transmission

Type
Multiple options (PowrQuad Plus, AutoQuad Plus, Creeper, AutoPowr)
Forward Gears
24 (for PowrQuad Plus, AutoQuad Plus, 36 for Creeper), infinite (for AutoPowr)
Reverse Gears
24 (for PowrQuad Plus, AutoQuad Plus, 36 for Creeper), infinite (for AutoPowr)
Total Gears
-

Dimensions

Length (in)
168.9
Width (in)
91.2
Height (in)
108
Operating Weight (lb)
11,200

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
29.6
Front Tire Diameter (in)
Unknown (standard: 420/70R28, actual diameter not provided)
Front Tire Width (in)
Unknown (standard: 420/70R28, width not provided)
Rear Tire Diameter (in)
Unknown (standard: 18.4R38, actual diameter not provided)
Rear Tire Width (in)
Unknown (standard: 18.4R38, width not provided)
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Load-sensing pressure-flow compensating (PFC)
