John Deere 6530

Last Updated: June 2024

Overview

The John Deere 6530 is a utility tractor equipped with a powerful turbocharged diesel engine, providing up to 126 horsepower. Known for its robust design and versatility, the 6530 model comes with a variety of transmission options to cater to different farming requirements, including SyncroPlus, PowrReverser, PowrQuad, and PowrQuad Plus. The tractor’s liquid-cooled John Deere 6068 HL280 engine features a high-pressure common rail injection system and a 6-cylinder 12-valve configuration, enabling efficient operation. Additional features include a PermaClutch wet disc clutch system and a viscous fan. This model's weight is 11390 pounds and its dimensions assure a stable and comfortable operation for a range of agricultural tasks. With a chassis configuration of 4x2 2WD, it is likely designed for general-purpose tasks on a farm.

Key Specifications

Category: Utility

Power Output: 126 (Assumed from the highest power listed among the details)

Transmission: SyncroPlus, PowrReverser, PowrQuad, PowrQuad Plus (Assumed as these are the listed transmission types)

Drive Type: 2WD

Operating Weight: 11390

Fuel Type: Diesel

Image Gallery

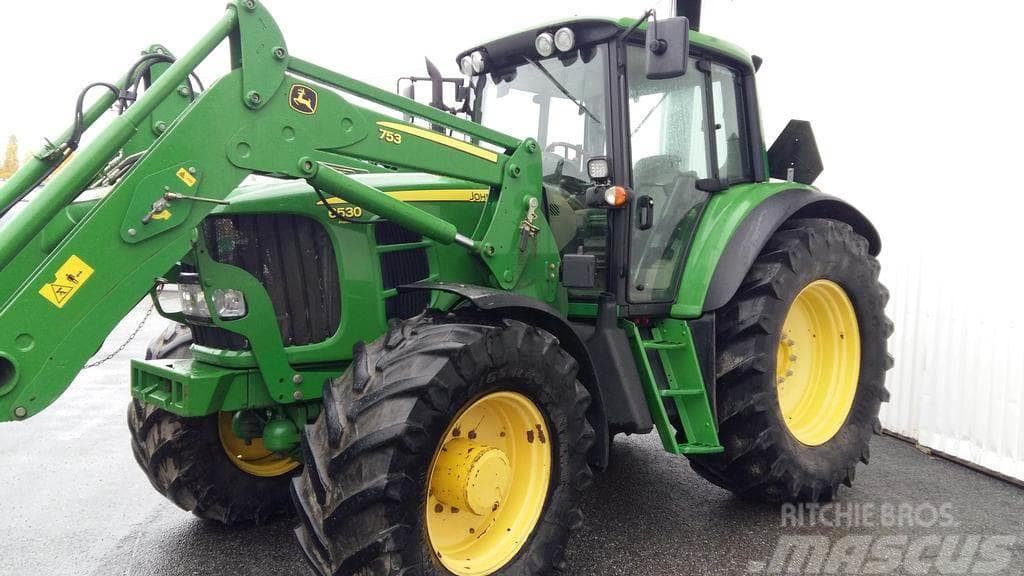

John Deere 6530 Tractor

John Deere 6530 vs. Similar Tractors

Power Output

Above Average

Greater than 88% of similar tractors.

Operating Weight

Average

Greater than 65% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 6068 HL280
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: 12-valve (Assumed based on "6-cylinder 12-valve" detail)
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 413.7
Bore (in): 4.19
Stroke (in): 5
Rated RPM: 2300
Power Output (hp): 126 (Assumed from the highest power listed among the details)

Transmission

Type: SyncroPlus, PowrReverser, PowrQuad, PowrQuad Plus (Assumed as these are the listed transmission types)
Forward Gears: 24 (Assumed from the highest number of gears listed among the transmission types)
Reverse Gears: 24 (Assumed from the highest number of gears listed among the transmission types)
Total Gears: -

Dimensions

Length (in): 186.1
Width (in): 91.2
Height (in): 111.5
Operating Weight (lb): 11390

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD (Assumed from the front and rear tire configurations provided)
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): 29.6
Front Tire Diameter (in): Unknown (Assumed, standard ag tire metric sizing provided, actual inch diameter not listed)
Front Tire Width (in): Unknown (Ditto above)
Rear Tire Diameter (in): Unknown (Ditto above)
Rear Tire Width (in): Unknown (Ditto above)
Front/Rear Rim Diameter (in): -
Tire Type: Standard ag
Manufacture - End Year: -
Hitch Type: Three-Point Hitch (Assumed based on "Rear Type: II")
Hitch Category: Category 2
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (Assumed based on "Engine - Starter volts: 12")
Brake Type: -
Hydraulic System Type: -
