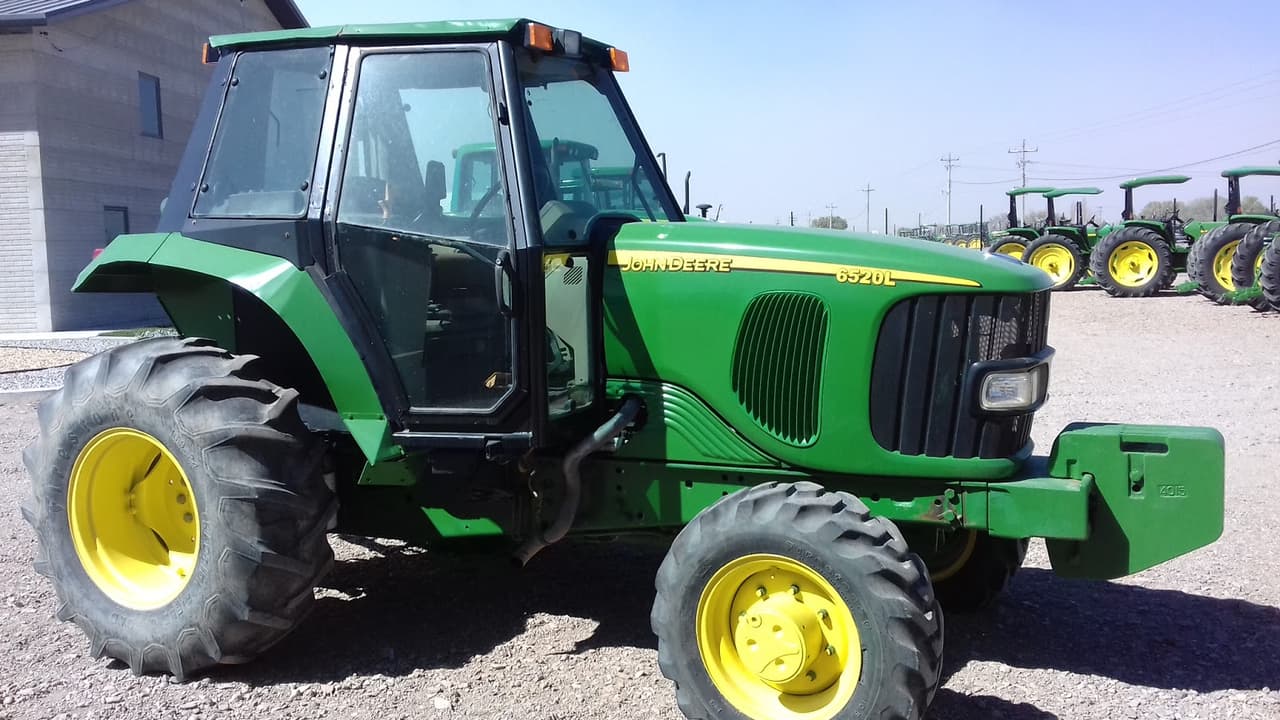

John Deere 6520L

Last Updated: June 2024

Overview

The John Deere 6520L is an orchard/vineyard tractor known for its agility and power. It's equipped with a liquid-cooled, turbocharged diesel PowerTech 4045HL071 engine and a displacement of 276 cubic inches. The tractor can operate at a rated RPM of 2300, and it is available with different transmission types including fully synchronized, power shuttle, and partial power shift, with varying gears. Specifically, it provides a comfortable and powerful solution for specialized farming with power ranging from 95 to 110 horsepower. The tractor's steering is hydrostatic power and the chassis type is a 4x2 2WD configuration. This model is robust in design and suitable for a variety of tasks in the orchard or vineyard, offering the reliability and efficiency expected from John Deere tractors.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 95/110 (assumed based on available data)

Transmission: fully synchronized/power shuttle/partial power shift

Drive Type: 2WD

Operating Weight: 8379.6

Fuel Type: diesel

John Deere 6520L vs. Similar Tractors

Power Output
Excellent
Greater than 99% of similar tractors.
Operating Weight
Average
Greater than 44% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
PowerTech 4045HL071
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged
Cylinders
4
Displacement (ci)
276
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
95/110 (assumed based on available data)

Transmission

Type
fully synchronized/power shuttle/partial power shift
Forward Gears
12/16/2024
Reverse Gears
4/16/2024
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
8379.6

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
14.4
Front Tire Diameter (in)
-
Front Tire Width (in)
9.5
Rear Tire Diameter (in)
26
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
ag
Manufacture - End Year
-
Hitch Type
II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
pressure and flow compensated
