John Deere 6415

Last Updated: June 2024

Overview

The John Deere 6415 is a versatile utility tractor produced between 2003 and 2007 in Mannheim, Baden-Württemberg, Germany, as part of the 6015 series. Configured as either a 2WD or 4WD tractor, it is powered by a 4.5 L four-cylinder turbocharged diesel engine. Engine specifications suggest different versions with variable horsepower ranging from 100 to 108 hp. Transmission options vary, with 12 forward and 4 reverse gears in the basic model, and up to 16 forward and reverse gears with the Power shuttle or PowrQuad options. It boasts a Category 3 three-point hitch with a lift capacity of 5028 pounds, and operator comfort is addressed with options for ROPS or a ComfortVantage Cab. It's equipped with an electro-hydraulic rear differential lock and a hydraulic wet disc brake system. The tractor is fitted with hydrostatic power steering, making it suitable for various utility tasks on a farm or land.

Key Specifications

Category: Utility

Power Output: 100 hp / 104.6 hp / 108 hp

Transmission: Fully synchronized / Power shuttle / Four-speed power shift

Drive Type: 4x2 2WD / 4x4 MFWD 4WD

Operating Weight: 7695 lbs / 8102 lbs / 8130 lbs / 8580 lbs / 8987 lbs

Fuel Type: Diesel

Image Gallery

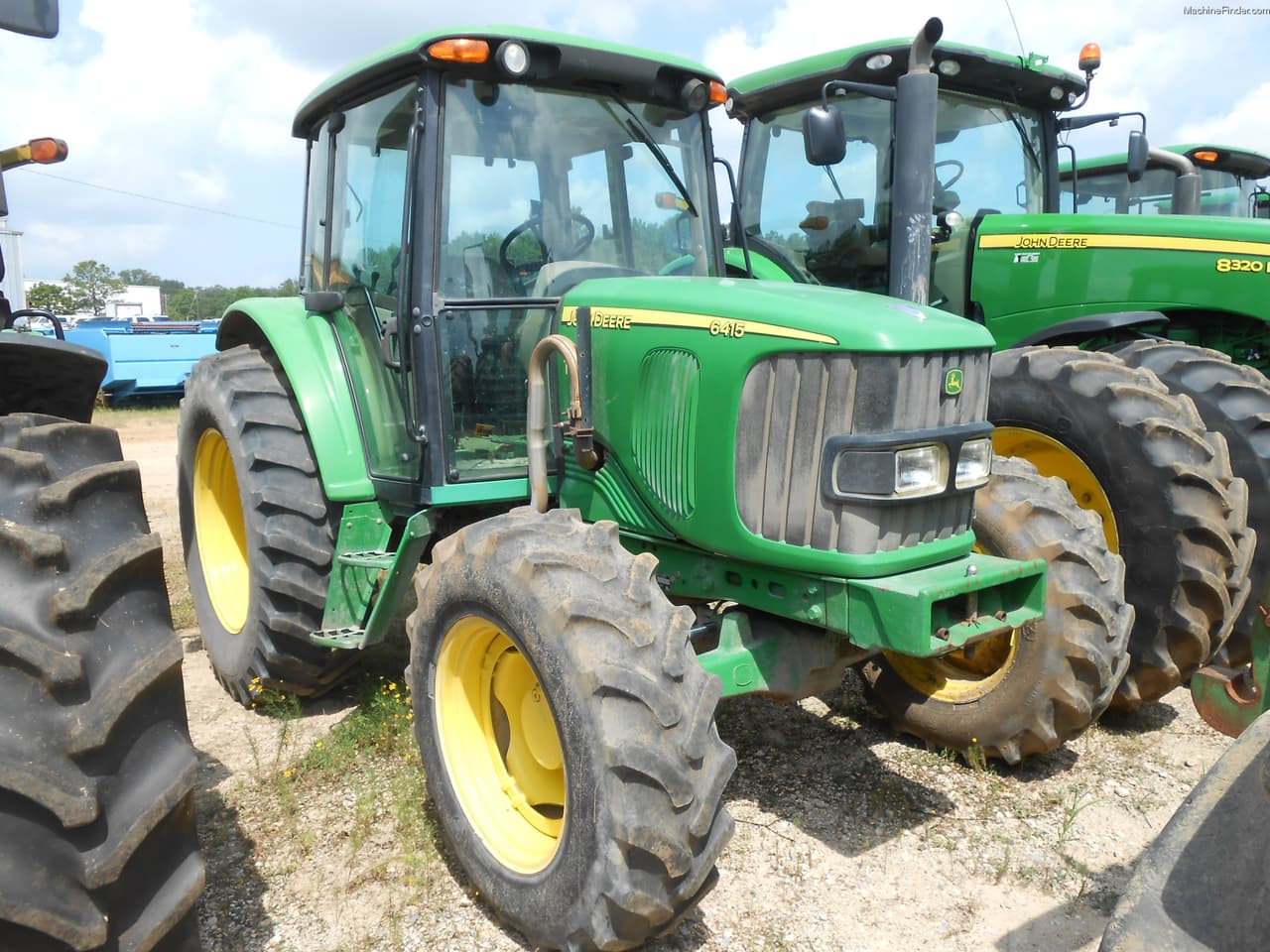

John Deere 6415 Tractor

John Deere 6415 vs. Similar Tractors

Power Output

Excellent

Greater than 99% of similar tractors.

Hitch Capacity

Above Average

Greater than 76% of similar tractors.

Operating Weight

Excellent

Greater than 100% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 4045 / 4045T
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged and Intercooler
Cylinders: 4
Displacement (ci): 276 ci
Bore (in): 4.19 inches / 4.17 inches / 4.15 inches
Stroke (in): 5.00 inches
Rated RPM: 2300
Power Output (hp): 100 hp / 104.6 hp / 108 hp

Transmission

Type: Fully synchronized / Power shuttle / Four-speed power shift
Forward Gears: 16-Dec
Reverse Gears: 16-Apr
Total Gears: -

Dimensions

Length (in): 162.6 inches / 180 inches
Width (in): -
Height (in): 96.9 inches / 106.9 inches
Operating Weight (lb): 7695 lbs / 8102 lbs / 8130 lbs / 8580 lbs / 8987 lbs

Power Take-Off (PTO)

PTO Type: Independent with electro-hydraulic clutch
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: 4x2 2WD / 4x4 MFWD 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 2007
Hitch Type: Three-Point Hitch
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): 5028 lbs
Operator Station Type: ROPS / Cab
Starter Type: Electric Starter
Brake Type: Hydraulic wet disc
Hydraulic System Type: Constant-flow load-sensing
