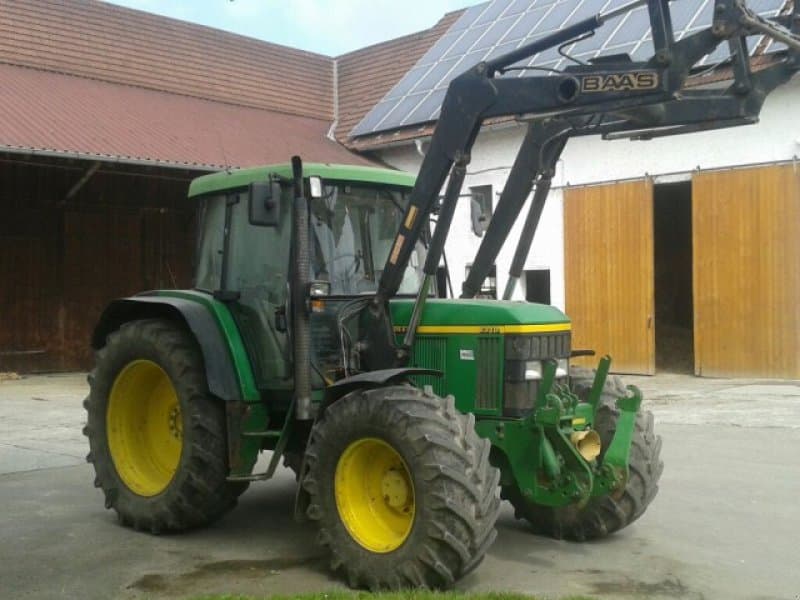

John Deere 6310SE

Last Updated: June 2024

Overview

The John Deere 6310SE is a utility tractor known for its solid performance and versatility. It features a turbocharged four-cylinder, liquid-cooled, diesel engine with a displacement of 276.4 cubic inches and a power output of 100 horsepower. The tractor's powertrain is supported by a 4x2 2WD chassis and a power steering system, making maneuverability on a variety of terrains simple. It has a 12-speed synchronized transmission and a top engine-rated RPM of 2300. The 6310SE carries on the John Deere tradition of reliable and durable machinery, suitable for a wide range of agricultural tasks. The operating weight of this model is 8924 pounds, and it is designed to handle substantial loads with its Category 3 hitch capability. The standard tire configuration uses agricultural tires with dry air cleaner and viscous-drive fan systems to ensure optimum performance. This model also features a 12-volt electric starting system, contributing to its user-friendly operation.
Show more...

Key Specifications

Category: Utility

Power Output: 100

Transmission: Synchronized

Drive Type: 2WD

Operating Weight: 8924

Fuel Type: Diesel

John Deere 6310SE vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.
Operating Weight
Average
Greater than 60% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
276.4
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
100

Transmission

Type
Synchronized
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
163.2
Width (in)
85.8
Height (in)
104.1
Operating Weight (lb)
8924

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
14.3
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
