John Deere 6210R

Last Updated: July 2024

Overview

The John Deere 6210R is a high-powered 4WD row-crop tractor from the esteemed 6R series, offering versatility and robust performance for a range of agricultural tasks. Engineered with precision, this model features the robust John Deere PowerTech PSX six-cylinder, 6.8L turbocharged aftercooled diesel engine with two turbochargers and an air-to-air intercooler, providing a rated power of 210 hp and a maximum power of 205.18 hp as per independent test results. The engine has a compression ratio of 17.0 to 1 and produces a maximum torque of 666 lb-ft at 1601 rpm with a torque rise of 48.7%. Assuring smooth operation, the 6210R comes with hydrostatic power steering and a choice of advanced transmission systems, including partial power shift and infinitely variable transmission (IVT) options, with detailed forward and reverse gear speeds listed in the test results. The tractor's hydraulic system delivers impressive performance with a pump delivery rate of 42.8 GPM at rated engine speed. Alongside integrated technologies like GreenStar and AutoTrac support, the 6210R stands out as a tractor designed for modern farming needs, backed by comprehensive independent test data.

Key Specifications

Category: Row Crop

Power Output: 210 hp (Rated Power), 205.18 hp (Maximum Power)

Transmission: Partial power shift, AutoPowr/IVT, DirectDrive ECO, PowerQuad Plus, PowrQuad Plus, AutoQuad Plus

Drive Type: 4WD

Operating Weight: 17,196 to 18,180 lbs

Fuel Type: Diesel

Image Gallery

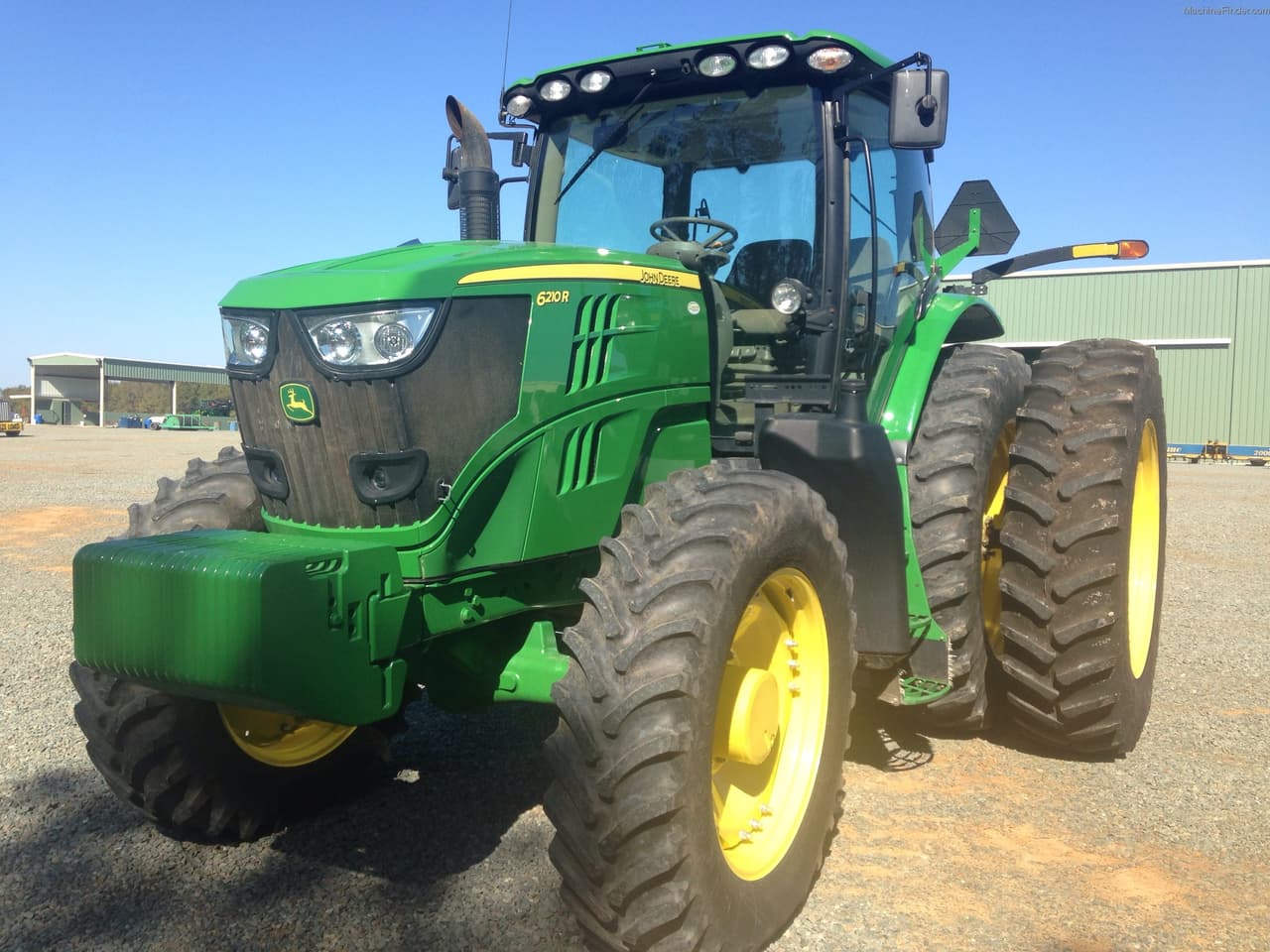

John Deere 6210R Tractor

John Deere 6210R vs. Similar Tractors

Power Output

Above Average

Greater than 75% of similar tractors.

Hitch Capacity

Below Average

Greater than 27% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: PowerTech PSX
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged with two turbochargers and air to air intercooler
Cylinders: 6
Displacement (ci): 414 ci (6788 ml)
Bore (in): 4.19 in
Stroke (in): 5.00 in
Rated RPM: 2100 RPM
Power Output (hp): 210 hp (Rated Power), 205.18 hp (Maximum Power)

Transmission

Type: Partial power shift, AutoPowr/IVT, DirectDrive ECO, PowerQuad Plus, PowrQuad Plus, AutoQuad Plus
Forward Gears: 20 (AutoQuad Plus Eco, PowrQuad Plus), 24 (DirectDrive), Infinite (AutoPowr IVT), Unknown (PowerQuad Plus), Unknown (AutoQuad Plus); Specific speeds listed in test results for up to 20 speeds in AutoQuad-Plus (e.g., 1.74 mph to 26.10 mph)
Reverse Gears: 20 (AutoQuad Plus Eco, PowrQuad Plus), 24 (DirectDrive), Infinite (AutoPowr IVT), Unknown (PowerQuad Plus), Unknown (AutoQuad Plus); Detailed reverse speeds listed in test results (1.81 mph up to 26.10 mph, electronically limited)
Total Gears: -

Dimensions

Length (in): 198.4 in
Width (in): 100.4 in
Height (in): 124 in
Operating Weight (lb): 17,196 to 18,180 lbs

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 29.6-29.8 qts
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: -
Hitch Type: Three-Point Hitch
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): 21,060 lbs
Operator Station Type: ComfortView cab (standard)
Starter Type: Electric Starter
Brake Type: Hydraulic wet disc
Hydraulic System Type: Closed center, pressure/flow compensated (PFC)

Test Results

Nebraska Tractor Test Laboratory - Test Date: September 7-19, 2012

Maximum Power and Fuel Consumption

Maximum Power at Rated Engine Speed: 179.12 HP (133.57 kW) at 2101 rpm
Fuel Consumption at Maximum Power: 10.67 Gal/hr (40.39 l/h) with a fuel efficiency of 0.420 lb/hp.hr (0.255 kg/kW.h)
Fuel Consumption at Standard PTO Speed (1000 rpm): 11.55 Gal/hr (43.71 l/h) with a fuel efficiency of 0.408 lb/hp.hr (0.248 kg/kW.h)
Maximum Power (1 hour): 205.18 HP (153.01 kW) at 1701 rpm

Drawbar Performance

Maximum Power in 7th Gear (B3): 170.30 HP (126.99 kW) with a drawbar pull of 12366 lbs (55.01 kN) at 5.17 mph (8.31 km/h) and 2.8% slip
Fuel Efficiency at Maximum Power: 0.445 lb/hp.hr (0.270 kg/kW.h) with a fuel efficiency of 15.86 Hp.hr/gal (3.12 kW.h/l)
Power at Reduced Engine Speed (10th Gear, C2): 133.17 HP (99.30 kW) with a drawbar pull of 9285 lbs (41.30 kN) at 5.38 mph (8.66 km/h)

Torque and Engine Performance

Maximum Torque: 666 lb.-ft. (903 Nm) at 1601 rpm
Torque Rise: 48.7% with a power increase at 1701 rpm of 14.5%

Hydraulic Performance

Maximum Force Exerted: 12660 lbs (56.3 kN) at hitch points
Pump Delivery Rate at Rated Engine Speed: 42.8 GPM (162.1 l/min) with delivery pressure of 2592 psi (179 bar)
Hydraulic Power: 64.2 HP (47.9 kW) at maximum hydraulic power

NTTL.(2013).Nebraska OECD Tractor test 2035 for John Deere 6210R Diesel. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2434
