John Deere 6195R

Last Updated: June 2024

Overview

The John Deere 6195R is a robust row-crop tractor designed to meet a variety of farming needs. It features a powerful 6.8L 6-cylinder turbocharged John Deere PowerTech PVS diesel engine that delivers 195 horsepower, with a peak output of 235 horsepower under certain conditions. Equipped with a liquid cooling system and a rated RPM of 2100, this engine is built for performance and longevity. The tractor offers several transmission options, including 24-speed DirectDrive, 20-speed AutoQuad Plus, Infinite AutoPowr IVT, and others, aiming to maximize efficiency and control for various agricultural tasks. With a wheelbase of 110.2 inches and operational weight of approximately 19,610 pounds, the 6195R provides stability and traction, which is further enhanced by its 4WD MFWD chassis and power steering. Keeping the operator's comfort in mind, it comes with a cab station, ensuring protection from the elements and a conducive working environment. This versatile tractor is suitable for a range of activities, from field work to transport, making it a reliable workhorse in the John Deere lineup.

Key Specifications

Category: Row Crop

Power Output: 195 (Rated Power)

Transmission: Partial power shift | four-speed power shift | eight-speed power shift | infinitely variable transmission (IVT)

Drive Type: 4WD

Operating Weight: 19610/18519 (Assume 19610 lbs as it may include additional equipment)

Fuel Type: Diesel

Image Gallery

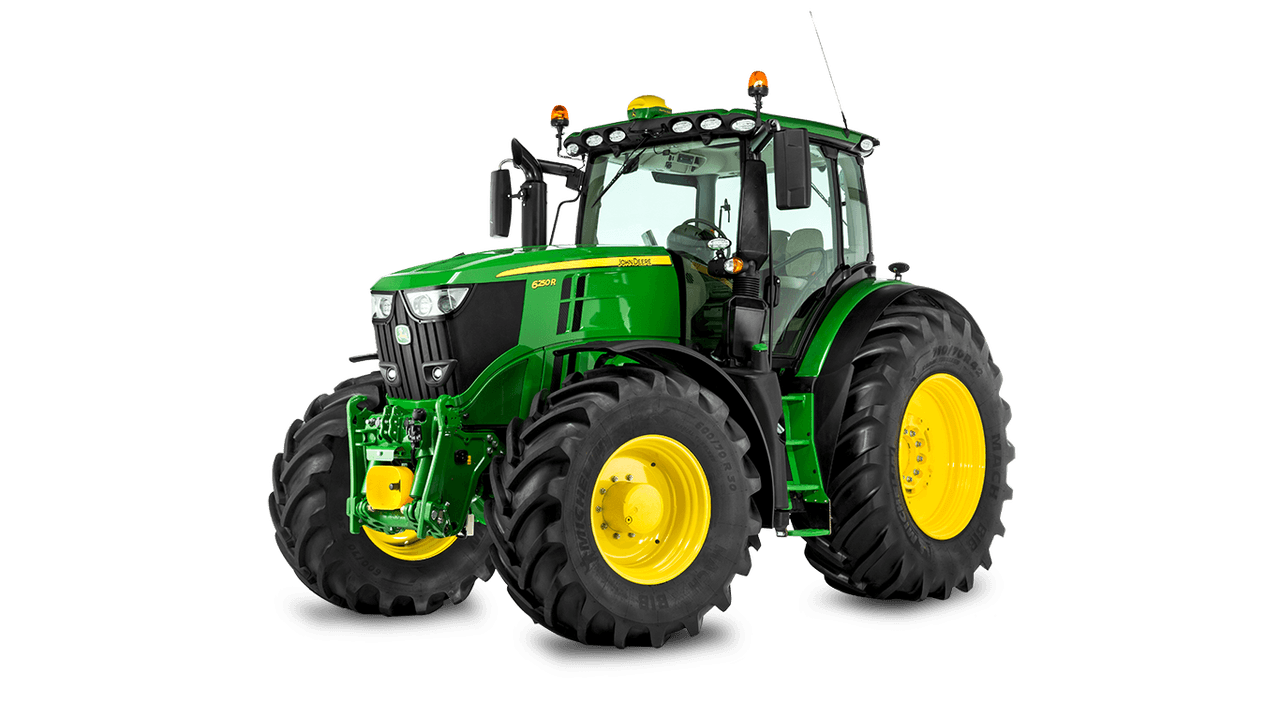

John Deere 6195R Tractor

John Deere 6195R vs. Similar Tractors

Power Output

Above Average

Greater than 71% of similar tractors.

Operating Weight

Excellent

Greater than 100% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: John Deere PowerTech PVS
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 415
Bore (in): 4.19/4.15 (Assume 4.19" as it's likely a rounding discrepancy)
Stroke (in): 5
Rated RPM: 2100
Power Output (hp): 195 (Rated Power)

Transmission

Type: Partial power shift | four-speed power shift | eight-speed power shift | infinitely variable transmission (IVT)
Forward Gears: -
Reverse Gears: -
Total Gears: Infinite forward and reverse with IVT | 24 forward and reverse with eight-speed power shift | 20 forward and reverse with four-speed power shift | 16 forward and reverse with partial power shift

Dimensions

Length (in): 198.6/198.8 (Assume 198.6" as it's likely a rounding discrepancy)
Width (in): 100.4
Height (in): 126.2/124.4 (Assume 126.2" as it's likely a rounding discrepancy)
Operating Weight (lb): 19610/18519 (Assume 19610 lbs as it may include additional equipment)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): 29.6
Front Tire Diameter (in): Unknown (But can assume a diameter given the size 420/90R30)
Front Tire Width (in): Unknown (But can assume a width given the size 420/90R30)
Rear Tire Diameter (in): Unknown (But can assume a diameter given the size 480/80R46)
Rear Tire Width (in): Unknown (But can assume a width given the size 480/80R46)
Front/Rear Rim Diameter (in): -
Tire Type: Standard (ag)
Manufacture - End Year: -
Hitch Type: III/IIIN | III (Assume III as it's compatible with III/IIIN)
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed center pressure flow compensated (PFC)
