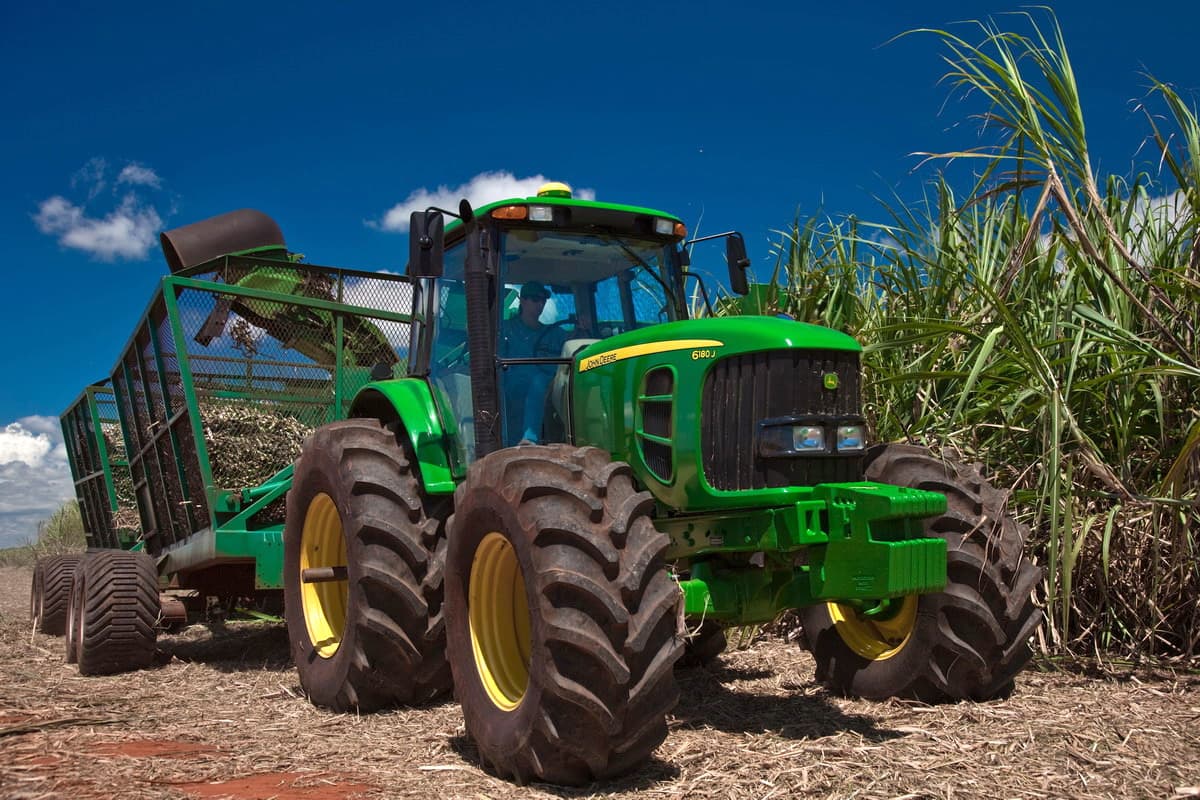

John Deere 6180J

Last Updated: June 2024

Overview

The John Deere 6180J is a utility class tractor, known for its versatility and robustness. It features a 4-wheel drive chassis with a Multi-Functional Four-Wheel Drive (MFWD), offering better traction and power delivery for various agricultural tasks. The tractor is powered by a 6.8 L, 414.4 cubic inch 6-cylinder John Deere 6068 PowerTech turbocharged intercooled diesel engine delivering 180 horsepower, ensuring strong performance for heavy-duty operations. It operates with a 16-speed partial power shift transmission, allowing for smooth gear shifts and efficient power transfer. This model comes equipped with a closed-center pressure-flow compensated hydraulic system for improved control and efficiency of the hydraulic functions. The tractor has a wheelbase of 107.5 inches, providing stability and comfort during work while the power steering enhances maneuverability. With an operating weight ranging from 15860 to 16480 pounds, the 6180J is built to handle substantial loads and maintain performance in various conditions. Its rear Category III hitch supports the use of a wide range of implements, making it a valuable asset for any farming operation. Overall, the 6180J is a formidable workhorse that delivers John Deere's reliability and functionality in agricultural settings.
Show more...

Key Specifications

Category: Utility

Power Output: 180

Transmission: Partial Power Shift

Drive Type: 4WD

Operating Weight: 15860 to 16480

Fuel Type: Diesel

John Deere 6180J vs. Similar Tractors

Power Output
Excellent
Greater than 92% of similar tractors.
Operating Weight
Excellent
Greater than 94% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068 PowerTech
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
6
Displacement (ci)
414.4
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
180

Transmission

Type
Partial Power Shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
213.4
Width (in)
-
Height (in)
115.4
Operating Weight (lb)
15860 to 16480

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard/agricultural
Manufacture - End Year
-
Hitch Type
Category III
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12-volt
Brake Type
-
Hydraulic System Type
Closed Center Pressure-Flow Compensated (PFC)
