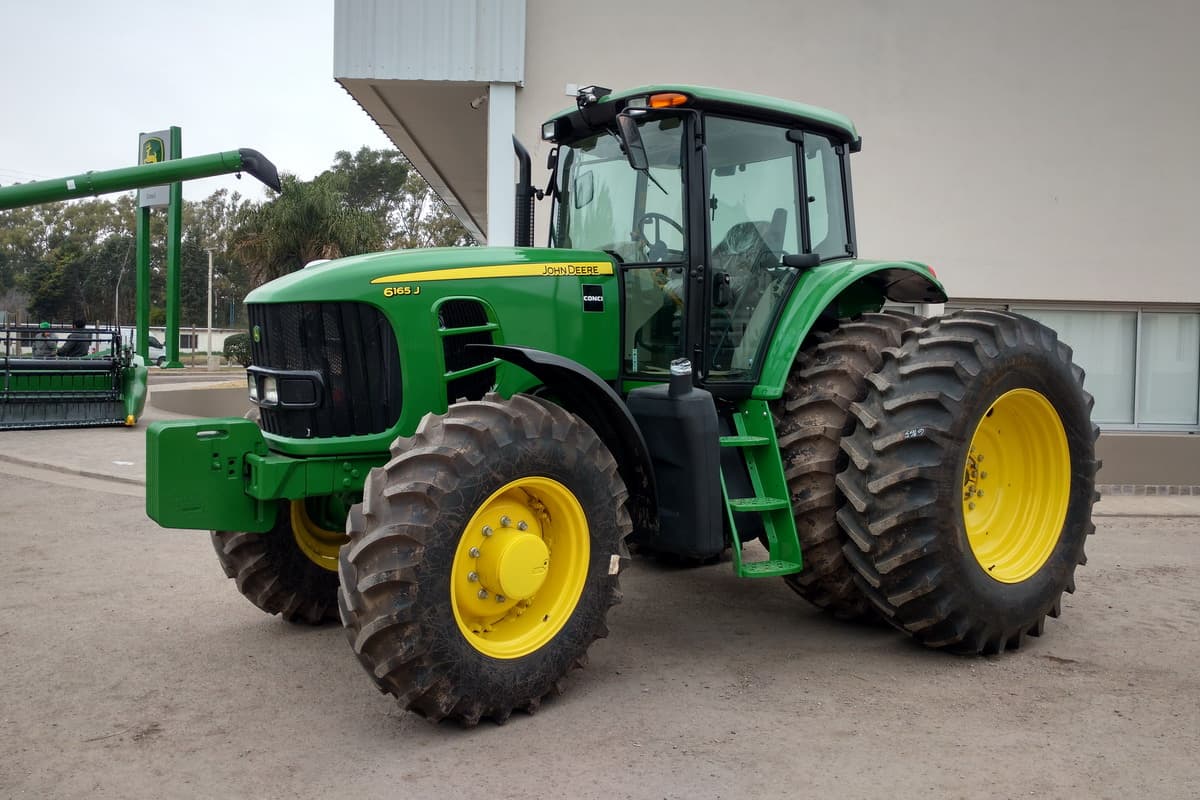

John Deere 6165J

Last Updated: June 2024

Overview

The John Deere 6165J is a utility tractor equipped with a 165 horsepower 6.8-liter 6-cylinder liquid-cooled John Deere 6068 PowerTech engine. Its turbocharged and intercooled diesel engine has a bore and stroke of 4.19 inches and 5.00 inches respectively. With a power steering system and a 4x4 MFWD 4WD chassis, this tractor offers a comfortable and potent performance for a variety of tasks. The partial power shift transmission with 16 gears for forward and reverse movements enables flexibility in speed and power range. The wheelbase measures 107.5 inches, contributing to its stability. The tractor is specified with a hydraulic system that is a closed center pressure-flow compensated type and operates at an engine rated RPM of 2100, where it also achieves its torque peak. Standard agricultural tires are 16.9-28 at the front and 20.8-38 at the rear, with optional larger sizes available. This model has a weight range between 15,190 and 16,290 pounds without ballast and can reach up to 20,720 pounds when ballasted.
Show more...

Key Specifications

Category: Utility

Power Output: 165

Transmission: Partial power shift

Drive Type: 4WD

Operating Weight: 15,190 - 16,290

Fuel Type: Diesel

John Deere 6165J vs. Similar Tractors

Power Output
Excellent
Greater than 91% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068 PowerTech
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
414.4
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
165

Transmission

Type
Partial power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
213.4
Width (in)
-
Height (in)
115.4
Operating Weight (lb)
15,190 - 16,290

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power steering
Coolant Capacity (qts)
-
Front Tire Diameter (in)
28
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12-volt
Brake Type
-
Hydraulic System Type
Closed center pressure-flow compensated (PFC)
