John Deere 6155R

Last Updated: June 2024

Overview

The John Deere 6155R is a versatile row-crop tractor that comes with either a two-wheel drive or mechanical front-wheel drive (4WD) chassis. Manufactured since 2015 in Waterloo, Iowa, USA, this tractor features a robust 6.8L six-cylinder diesel engine that provides 155 horsepower. Equipped with a variety of transmission options, including 16-speed partial power shift, 20-speed partial power shift, 24-speed eight-speed power shift, and an infinitely variable transmission (IVT), the 6155R adapts to a variety of tasks. Notable for its hydraulic wet disc brakes, power steering, and a standard cab for operator comfort, this tractor also features a 3-point hitch with a lift capacity of 9,195 lbs, suitable for handling substantial implements. The 6155R is a fitting choice for those seeking a reliable and powerful companion for row-crop work.
Show more...

Key Specifications

Category: Row Crop

Power Output: 155 hp

Transmission: Partial power shift

Drive Type: 2WD or 4WD

Operating Weight: 17028 lbs

Fuel Type: Diesel

Image Gallery

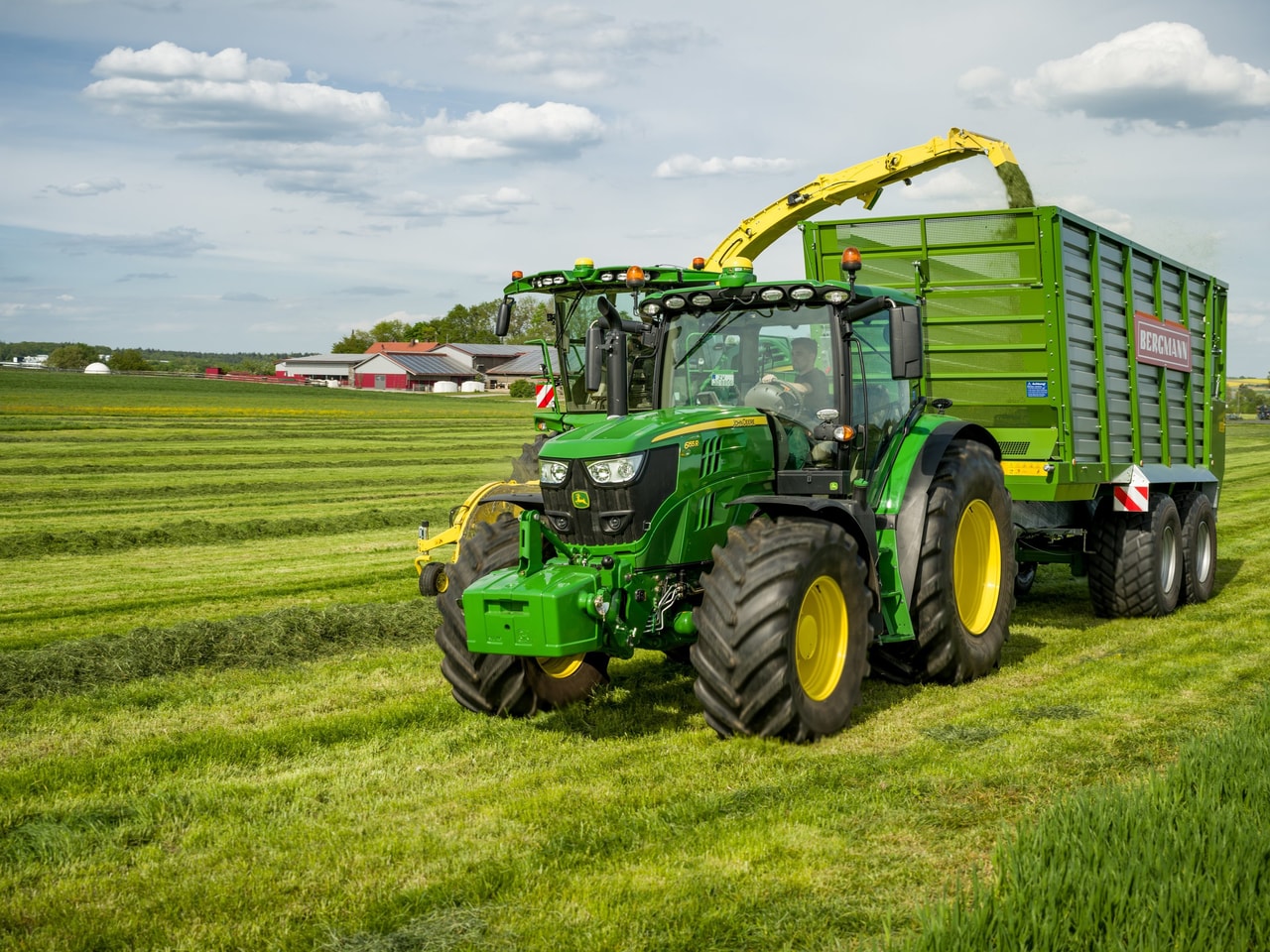

John Deere 6155R Tractor John Deere 6155R Tractor John Deere 6155R Tractor John Deere 6155R Tractor John Deere 6155R Tractor John Deere 6155R Tractor John Deere 6155R Tractor John Deere 6155R Tractor

John Deere 6155R vs. Similar Tractors

Power Output
Average
Greater than 56% of similar tractors.
Hitch Capacity
Average
Greater than 57% of similar tractors.
Operating Weight
Average
Greater than 64% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
PowerTech PVS
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
6
Displacement (ci)
414 ci
Bore (in)
4.13 in
Stroke (in)
5 in
Rated RPM
2100
Power Output (hp)
155 hp

Transmission

Type
Partial power shift
Forward Gears
16 or 20 or 24 (depending on the transmission model)
Reverse Gears
16 or 20 or 24 (depending on the transmission model)
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
17028 lbs

Power Take-Off (PTO)

PTO Type
Independent with electro-hydraulic clutch
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
2WD or 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (Specification not explicitly stated for 2WD or 4WD)
Front Tire Width (in)
-
Rear Tire Diameter (in)
Unknown (Specification not explicitly stated for 2WD or 4WD)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
3-point hitch III/IIIN
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
9195 lbs
Operator Station Type
Cab
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Closed-center pressure and flow compensated (PFC)

Test Results

Nebraska Tractor Test Laboratory - Test Date: March 31 to April 14, 2016

Maximum Power and Fuel Consumption

  • Maximum Power: 151.66 HP (113.09 kW) at 1700 rpm
  • Fuel Consumption at Maximum Power: 8.64 Gal/hr (32.69 l/h) with a fuel efficiency of 0.399 lb/hp.hr (0.243 kg/kW.h)
  • DEF Consumption: 0.21 Gal/hr (0.80 l/h)

Drawbar Performance

  • Power at Rated Engine Speed (7th Gear): 123.38 HP (92.00 kW) with a drawbar pull of 9627 lbs (42.82 kN) and a speed of 4.81 mph (7.74 km/h)
  • Fuel Consumption at Rated Speed: 0.474 lb/hp.hr (0.288 kg/kW.h) with a fuel efficiency of 14.79 Hp.hr/gal (2.91 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 495 lb.-ft. (672 Nm) at 1499 rpm
  • Torque Rise: 52.2% with a power increase at 1700 rpm of 16.6%

Hydraulic Performance

  • Maximum Force Exerted: 9244 lbs (41.1 kN) at hitch points
  • Pump Delivery Rate: 30.7 GPM (116.2 l/min) at minimum pressure and rated engine speed
  • Hydraulic Power: 46.2 HP (34.4 kW) at delivery pressure of 2747 psi (189 bar)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 16.18 Hp.hr/gal (3.19 kW.h/l)
  • Fuel Consumption: 8.67 Gal/hr (32.81 l/h) at 2010 rpm



Nebraska Tractor Test Laboratory. (2016). Test 2147: John Deere 6155R AutoQuad-Plus. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2569
