John Deere 6120

Last Updated: June 2024

Overview

The John Deere 6120 utility tractor was manufactured by John Deere in their Mannheim factory in Germany during 2002 to 2007. Available with either a two-wheel-drive (2WD) chassis or an optional four-wheel-drive (4WD) chassis, it is powered by a John Deere 4.6L four-cylinder turbocharged diesel engine, producing 80 horsepower at 2,300 RPM. Equipped with hydrostatic power steering and hydraulic wet disc brakes, this tractor offers various transmission options, including a fully synchronized, power shuttle, and partial power shift with different gear configurations, offering versatility for a range of tasks. The tractor can be fitted with a two-post ROPS or an optional ConfortGard Cab for improved operator comfort. The John Deere 6120 is designed for various utility functions, supported by its category II hitch and a lift capacity of 4,740 lbs.

Key Specifications

Category: Utility

Power Output: 80

Transmission: Fully synchronized / Power shuttle / Partial power shift

Drive Type: 2WD and Optional 4WD

Operating Weight: 9350 (2WD) or 9590.2 (4WD cab)

Fuel Type: Diesel

Image Gallery

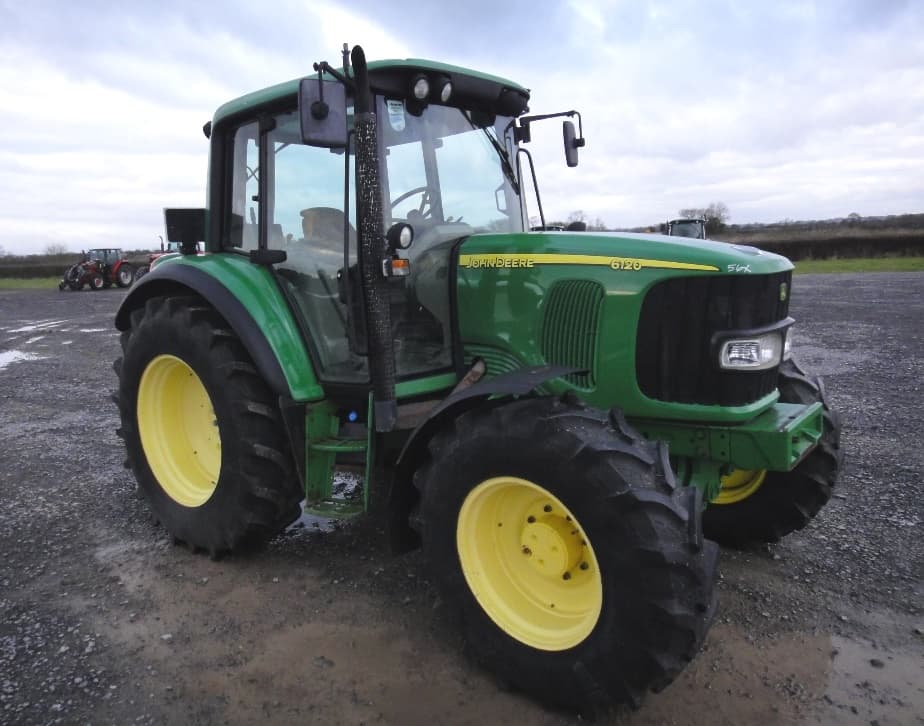

John Deere 6120 Tractor

John Deere 6120 vs. Similar Tractors

Power Output

Above Average

Greater than 71% of similar tractors.

Hitch Capacity

Above Average

Greater than 75% of similar tractors.

Operating Weight

Excellent

Greater than 93% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: PowerTech 4045TL070 / PowerTech 4045TL271
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 276
Bore (in): 4.19
Stroke (in): 5
Rated RPM: 2300
Power Output (hp): 80

Transmission

Type: Fully synchronized / Power shuttle / Partial power shift
Forward Gears: 12 or 16 or 24 (Depending on transmission type)
Reverse Gears: 4 or 16 (Depending on transmission type)
Total Gears: -

Dimensions

Length (in): 162.6
Width (in): 61.8
Height (in): 98
Operating Weight (lb): 9350 (2WD) or 9590.2 (4WD cab)

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000 (If equipped with 540/1000 rpm option)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD and Optional 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 14.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag: 10.00-16 (2WD), 12.4-24 (4WD) Front / Ag: 16.9-30 Rear
Manufacture - End Year: 2007
Hitch Type: II
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): 4740 lbs
Operator Station Type: Two-post ROPS or ConfortGard Cab (optional)
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Pressue flow compensated
