John Deere 6110SE

Last Updated: June 2024

Overview

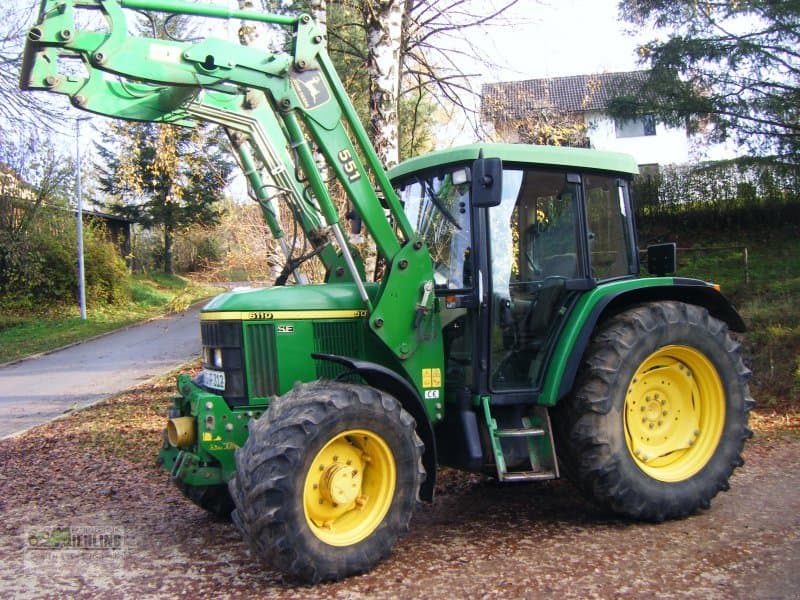

The John Deere 6110SE is a utility tractor known for its versatility and robust performance. Equipped with a turbocharged diesel engine, it offers a power output of 80 hp at a rated RPM of 2300. The 4-cylinder engine with a displacement of 276.4 ci provides substantial torque, making the tractor capable of handling a wide range of tasks. With a synchronized transmission type and additional power shuttle and four-speed power shift options, it offers up to 16 forward gears and 4 reverse gears, although the total count of gears is not specified. The tractor operates on a 4x2 2WD chassis and features a power steering system, enhancing maneuverability in various farming applications. The tractor’s wet disc clutch and liquid-cooled engine system ensure smooth operation and longevity. The cab height is 102.1 inches, providing ample space and comfort for the operator. Its hydraulic system is load-sensing, optimizing efficiency during tasks. The exact tire dimensions and types of PTO and hitch, along with manufacture start and end years, remain unspecified.
Show more...

Key Specifications

Category: Utility

Power Output: 80 hp

Transmission: Synchronized, Power shuttle, Four-speed power shift

Drive Type: 2WD

Operating Weight: 8536 lbs

Fuel Type: Diesel

John Deere 6110SE vs. Similar Tractors

Power Output
Above Average
Greater than 71% of similar tractors.
Operating Weight
Average
Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled with viscous-drive fan
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4-cylinder
Displacement (ci)
276.4 ci
Bore (in)
4.19 in
Stroke (in)
5.00 in
Rated RPM
2300
Power Output (hp)
80 hp

Transmission

Type
Synchronized, Power shuttle, Four-speed power shift
Forward Gears
16 forward (highest)
Reverse Gears
4 reverse (only mentioned for Synchronized type)
Total Gears
-

Dimensions

Length (in)
162.4 in
Width (in)
85.6 in
Height (in)
102.1 in (cab)
Operating Weight (lb)
8536 lbs

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
14.3 qts
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag tires
Manufacture - End Year
-
Hitch Type
Type II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab (assuming from height with 'cab')
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Load sensing
