John Deere 6110R

Last Updated: July 2024

Overview

The John Deere 6110R is a utility tractor designed for a wide range of tasks. It is equipped with a 4-cylinder, 16-valve, turbocharged diesel engine offering both a rated power of 110 hp and a maximum power output of 119 hp at a rated RPM of 2100. The tractor's power is delivered through an option of transmissions: a 16-speed partial powershift, a 24-speed partial powershift AutoQuad Plus Eco, or an infinitely variable transmission (AutoPowr IVT), each bringing versatility to the machine's handling and speed regulation. The tractor offers a 4x4 MFWD 4WD chassis along with power steering for effective maneuverability. The cooling system is liquid-based, ensuring optimal engine performance during extensive operations. However, specifications like tire measurements, tractor dimensions, hitch lift capacity, and manufacture years are not specified in the provided data.

Key Specifications

Category: Utility

Power Output: 91.4 (Rated PTO), 103.9 (Maximum at 1 hour)

Transmission: PowerQuad Plus

Drive Type: 4WD

Operating Weight: 12390

Fuel Type: Diesel

Image Gallery

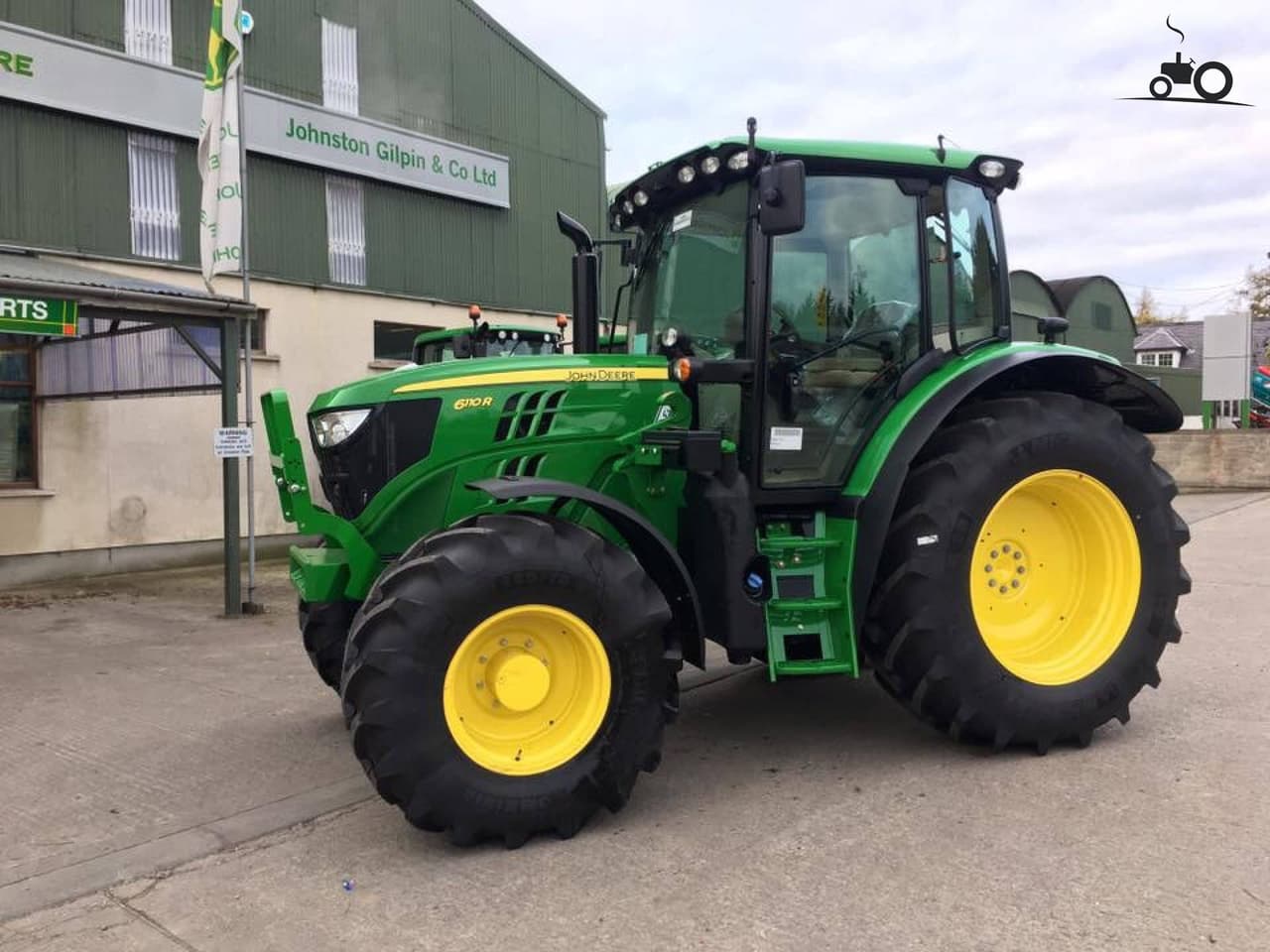

John Deere 6110R Tractor

John Deere 6110R vs. Similar Tractors

Power Output

Excellent

Greater than 99% of similar tractors.

Operating Weight

Average

Greater than 69% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: Liquid
Cylinder Orientation: Vertical Inline
Valve Configuration: 16-valve
Fuel Type: Diesel
Induction Type: Two turbochargers
Cylinders: 4
Displacement (ci): 276
Bore (in): 4.19
Stroke (in): 5
Rated RPM: 2100
Power Output (hp): 91.4 (Rated PTO), 103.9 (Maximum at 1 hour)

Transmission

Type: PowerQuad Plus
Forward Gears: 24
Reverse Gears: 24
Total Gears: 24

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 12390

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: Front wheel assist (FWA)
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Category 3N
Hitch Category: Unknown (Category II provided, but "Category 3" requested)
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed Center
