John Deere 6110M

Last Updated: July 2024

Overview

The John Deere 6110M is a 4WD utility tractor with a 4-cylinder 4.5L turbocharged diesel engine producing 110 hp. Key updates include 4 cylinders instead of 6, 24 forward gears for PowrQuad/AutoQuad transmissions, maximum torque of 310 lb-ft, detailed hydraulic system specs, and PTO power output of 94.9 hp at 1000 rpm based on independent test results. Front tire size for 4WD models is 420/70R24.

Key Specifications

Category: Utility

Power Output: 110

Transmission: SyncroPlus, PowrQuad, AutoQuad PLUS

Operating Weight: 11039

Fuel Type: Diesel

Lift Capacity: 5581, Optional: 7431

Image Gallery

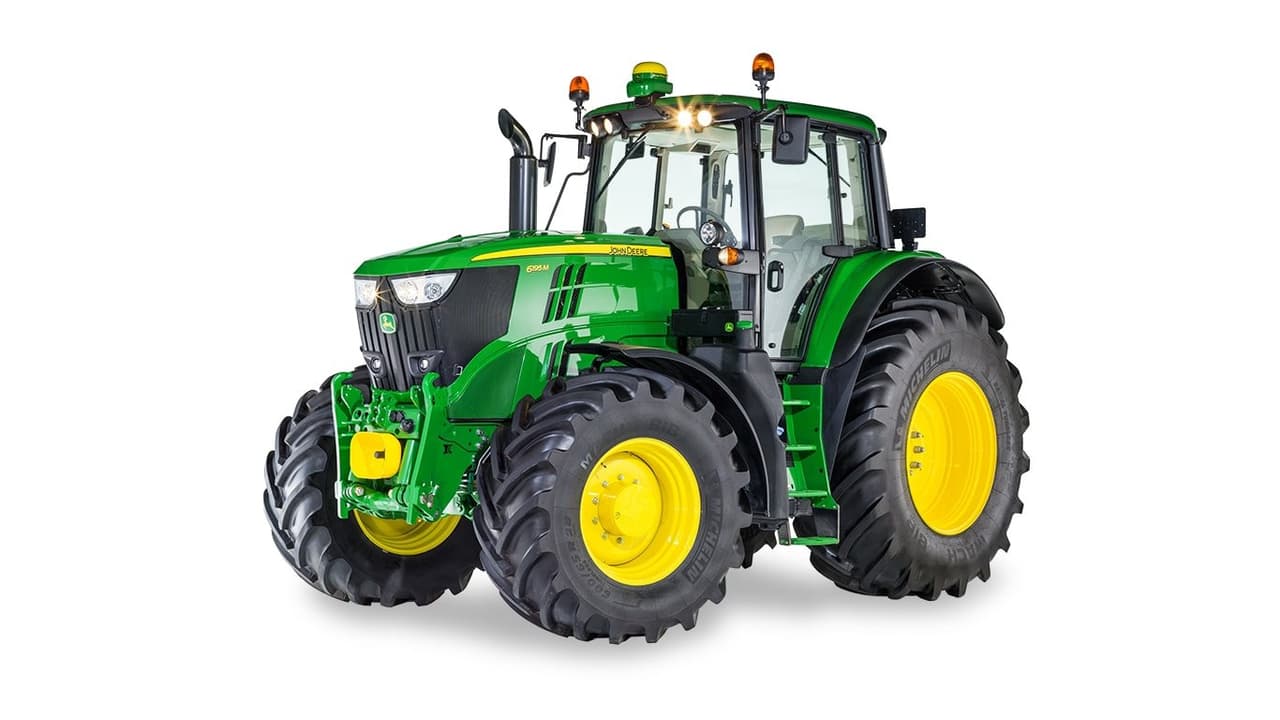

John Deere 6110M Tractor

John Deere 6110M vs. Similar Tractors

Power Output

Above Average

Greater than 85% of similar tractors.

Hitch Capacity

Above Average

Greater than 78% of similar tractors.

Operating Weight

Average

Greater than 64% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: PowerTech PSS
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged aftercooled
Cylinders: 4
Displacement (ci): 276
Bore (in): 4.19
Stroke (in): 5
Rated RPM: 2100
Power Output (hp): 110

Transmission

Type: SyncroPlus, PowrQuad, AutoQuad PLUS
Forward Gears: 12 (SyncroPlus), 24 (PowrQuad, AutoQuad PLUS)
Reverse Gears: 4 (SyncroPlus), 24 (PowrQuad, AutoQuad PLUS)
Total Gears: -

Dimensions

Length (in): 176.4
Width (in): 100.4
Height (in): 113
Operating Weight (lb): 11039

Power Take-Off (PTO)

PTO Type: Independent with electro-hydraulic clutch
PTO Speed 1 (rpm): 540/1000 (1.375), Optional: 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: -
Steering Type: Power
Coolant Capacity (qts): 23.2
Front Tire Diameter (in): Unknown (2WD: 10.00-16), 420/70R24 (4WD)
Front Tire Width (in): -
Rear Tire Diameter (in): Unknown (460/85R38)
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 2020
Hitch Type: -
Hitch Category: Category 2 and 3
Hitch Position: -
Hitch Capacity (lb): 5581, Optional: 7431
Operator Station Type: Cab (standard), two-post folding ROPS (optional)
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Open center, Closed-center pressure-and-flow compensated load sensing

Test Results

Nebraska Tractor Test Laboratory - Test Date: May to June, 2020

Maximum Power and Fuel Consumption

Maximum Power: 100.2 HP (74.7 kW) at 1800 rpm
Fuel Consumption at Maximum Power: 6.33 Gal/hr (23.94 l/h) with a fuel efficiency of 0.436 lb/hp.hr (0.265 kg/kWh)
DEF Consumption at Maximum Power: 0.48 Gal/hr (1.83 l/h)

Drawbar Performance

Power at Rated Engine Speed (10th Gear): 80.5 HP (60.1 kW) with a drawbar pull of 5580 lbs (24.82 kN) and a speed of 5.41 mph (8.71 km/h)
Fuel Consumption at Rated Speed: 0.526 lb/hp.hr (0.320 kg/kWh)

Torque and Engine Performance

Maximum Torque: 325 lb.-ft. (441 Nm) at 1500 rpm
Torque Rise: 53.8% with a power increase at 1800 rpm of 18.6%

Hydraulic Performance

Maximum Force Exerted at Ball Ends: 8540 lbs (38.0 kN) with 75 mm lift cylinders
Pump Delivery Rate at Minimum Pressure: 31.9 GPM (120.8 l/min)
Hydraulic Power: 45.9 HP (34.2 kW) at a delivery pressure of 2695 psi (186 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 15.10 Hp.hr/gal (2.97 kWh/l)
Fuel Consumption at Standard PTO Speed: 6.39 Gal/hr (24.20 l/h)

NTTL.(2022). OECD tractor test 3217 for John Deere 6110M CommandQuad Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from http://tractortestlab.unl.edu
