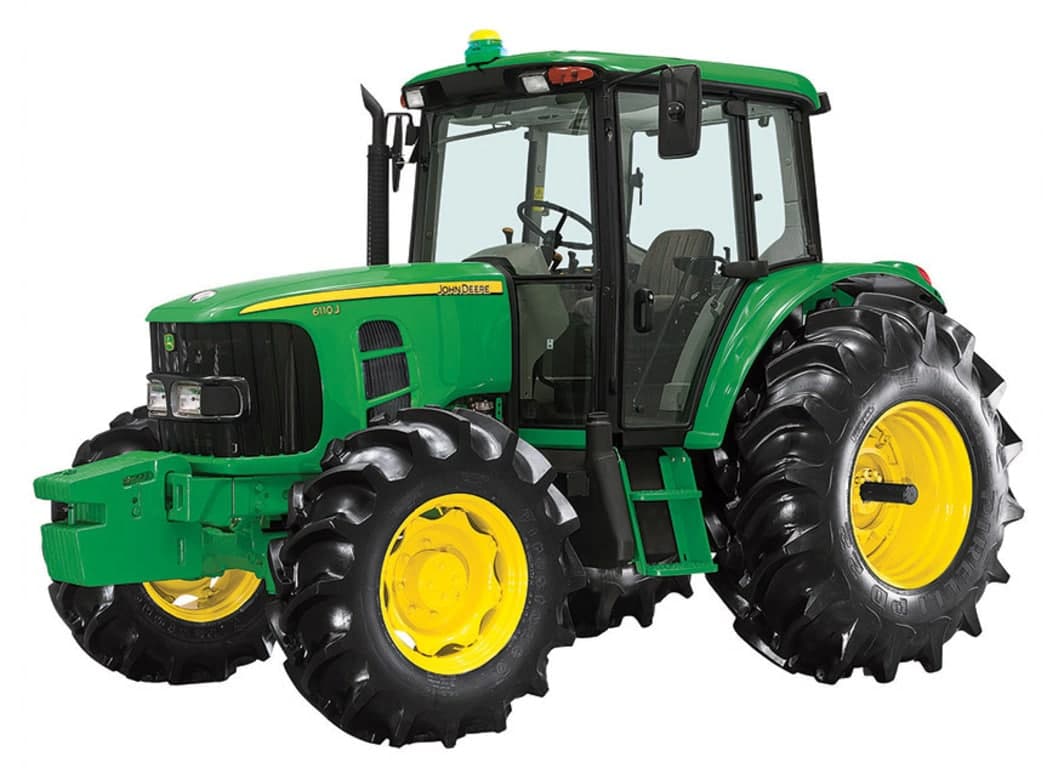

John Deere 6110J

Last Updated: June 2024

Overview

The John Deere 6110J is a utility tractor well-suited for a variety of tasks in the agricultural sector. It features a durable John Deere 4045 PowerTech engine that is both turbocharged and liquid-cooled, providing a reliable 110 horsepower. The engine operates at a maximum rated RPM of 2300, capable of producing 316.4 lb-ft of torque at 1400 RPM. Its 4x4 MFWD 4WD chassis ensures superior traction and performance on diverse terrains. The tractor is equipped with a 12-speed fully synchronized transmission for the forward gears and a 4-speed reverse, totaling 16 gears, which allows for flexibility during operations. The SyncroPlus and PowrQuad varieties of the transmission cater to different operational needs with their fully synchronized and partial power shift mechanisms. Comfortable power steering and the convenience of electric start make the 6110J user-friendly. The weight range of this tractor is approximately between 9125 to 10380 pounds, and with a height of 105.2 inches, it presents a commanding presence in the field. Details on operator station type, hitch lift capacity, PTO speed, and brake type, among others, are unspecified for this model. Nevertheless, this tractor is likely to satisfy the robust requirements of modern farming.
Show more...

Key Specifications

Category: Utility

Power Output: 110

Drive Type: 4WD

Operating Weight: 9125 to 10380

Fuel Type: Diesel

John Deere 6110J vs. Similar Tractors

Power Output
Above Average
Greater than 85% of similar tractors.
Operating Weight
Excellent
Greater than 93% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
4045 PowerTech
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
276
Bore (in)
4.15
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
110

Transmission

Type
-
Forward Gears
12
Reverse Gears
4
Total Gears
16

Dimensions

Length (in)
179.8
Width (in)
-
Height (in)
105.2
Operating Weight (lb)
9125 to 10380

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
21.1
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Pressure Compensated
