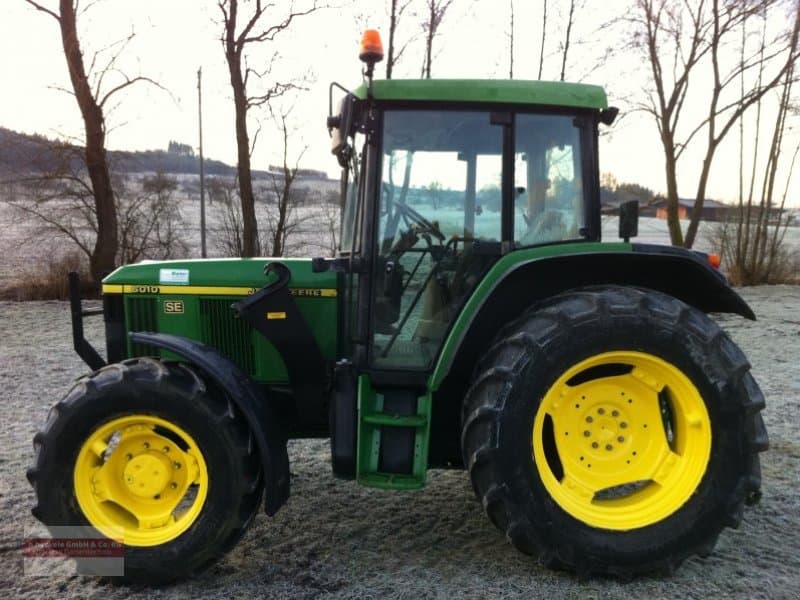

John Deere 6010SE

Last Updated: June 2024

Overview

The John Deere 6010SE is a utility tractor designed for versatile use in a variety of agricultural tasks. Featuring a 4x2 2WD chassis and power steering, this machine offers easy maneuverability and simple operation. The tractor is powered by a 4-cylinder, liquid-cooled John Deere diesel engine with a displacement of 276.4 cubic inches, capable of delivering 75 horsepower at 2300 RPM and a torque of 222.7 lb-ft at 1300 RPM. The cooling system is maintained with a 14.3-quart capacity, which helps ensure optimal engine performance even under difficult working conditions. It uses a flexible transmission system, allowing operators to choose between a 12-speed synchronized transmission, a power shuttle with 16 forward and reverse gears, or a PowerQuad transmission with a four-speed power shift. These options, along with wet disc clutches, provide versatility to match the pace and demands of a wide range of tasks. The tractor is fitted with standard agricultural tires, measuring 12.4R24 for the front and 16.9R30 for the rear. The 6010SE showcases a solid frame with a length of 162.4 inches, a width of 85.6 inches, and a height of 102.1 inches when equipped with a cab. With an operating weight of 8514 lbs, it is built to handle substantial loads, while the rear Category II hitch and load-sensing hydraulic system enhance its capability to manage a variety of implements.
Show more...

Key Specifications

Category: Utility

Power Output: 75

Transmission: Synchronized/Power shuttle/Four-speed power shift

Drive Type: 2WD

Operating Weight: 8514

Fuel Type: Diesel

John Deere 6010SE vs. Similar Tractors

Power Output
Average
Greater than 68% of similar tractors.
Operating Weight
Average
Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
276.4
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
75

Transmission

Type
Synchronized/Power shuttle/Four-speed power shift
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
162.4
Width (in)
85.6
Height (in)
102.1
Operating Weight (lb)
8514

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
14.3
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Load sensing
