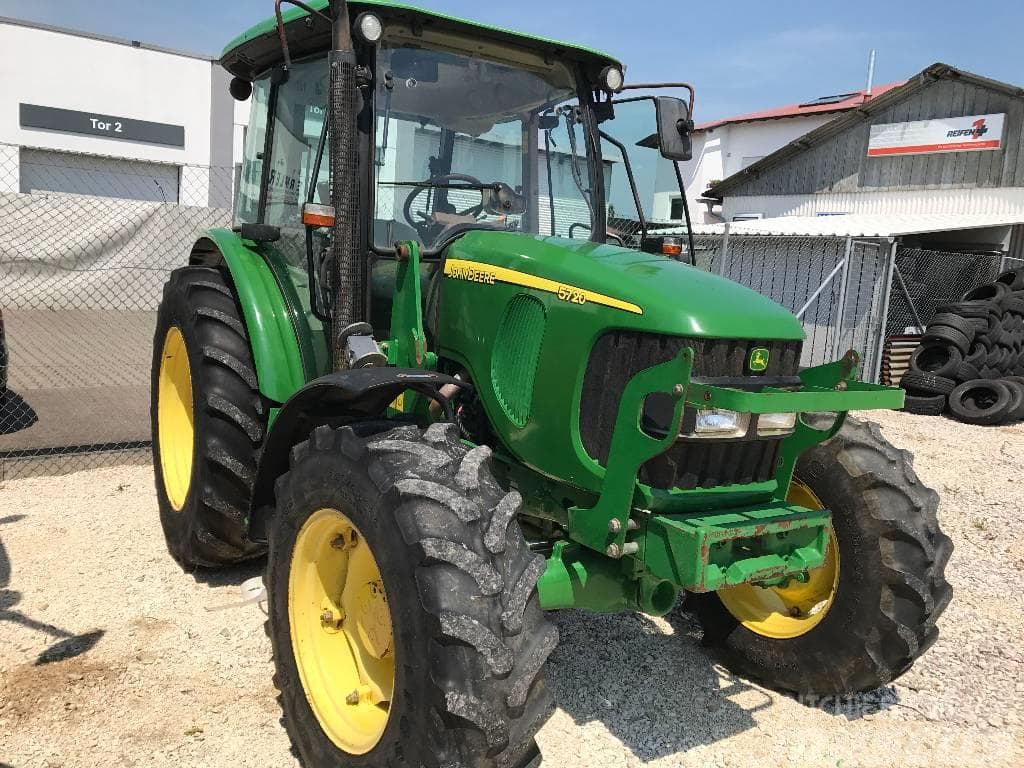

John Deere 5720

Last Updated: June 2024

Overview

The John Deere 5720 is a utility tractor designed for various agricultural tasks. It boasts a cherry 276 ci, 4.5-liter, 4-cylinder, turbocharged John Deere 4045TL273 diesel engine that generates 80 horsepower at 2300 rated RPM. It offers a hydrostatic power steering system, allowing for more straightforward maneuverability. Its transmission options, including the PowrQuad, PowrQuad Plus, and PowrQuad with underdrive, provide either 16 or 32 forward and reverse gears, which cater to a wide range of speed and power needs. Tailored for heavy lifting and pulling, it is equipped with a Category II three-point hitch at the rear and a 4x4 MFWD 4WD chassis promising improved traction and performance on diverse terrains. With a cab height of 102.2 inches and a sturdy frame, this tractor has a sizable presence and an operating weight of 8,157 pounds. The John Deere 5720 is a versatile and robust tractor suited for farms that demand reliability and power.
Show more...

Key Specifications

Category: Utility

Power Output: 80

Transmission: PowrQuad

Drive Type: MFWD - Mechanical Front Wheel Drive

Operating Weight: 8,157

Fuel Type: Diesel

John Deere 5720 vs. Similar Tractors

Power Output
Above Average
Greater than 71% of similar tractors.
Operating Weight
Poor
Greater than 4% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
4045TL273
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
276
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
80

Transmission

Type
PowrQuad
Forward Gears
-
Reverse Gears
-
Total Gears
16 or 32 (requires specific transmission selection)

Dimensions

Length (in)
155.5
Width (in)
85.6
Height (in)
102.2 (with cab)
Operating Weight (lb)
8,157

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD - Mechanical Front Wheel Drive
Steering Type
Hydrostatic power
Coolant Capacity (qts)
14.3
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab (when equipped)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Load sensing pressure compensated
