John Deere 5625

Last Updated: June 2024

Overview

The John Deere 5625 utility tractor, produced between 2006 and 2012 in Saltillo, Mexico, forms a part of the 5025 series. This tractor comes with a four-cylinder, turbocharged diesel engine, having a displacement of 278 cubic inches, and power output of 81 hp at a rated RPM of 2400. A gear type with dry disc clutch transmission featuring 9 forward and 3 reverse gears is standard. Additional features include an independent PTO with a 540 rpm speed, hydraulic wet disc brakes, open center hydraulics system, and a lift capacity of 3373 lbs at the hitch. It offers multiple operator station configurations, including the option for an open station, cab, or isolated open operator station (IOOS).

Key Specifications

Category: Utility

Power Output: 81

Transmission: Partially synchronized

Fuel Type: Diesel

Lift Capacity: 3373 lbs

Image Gallery

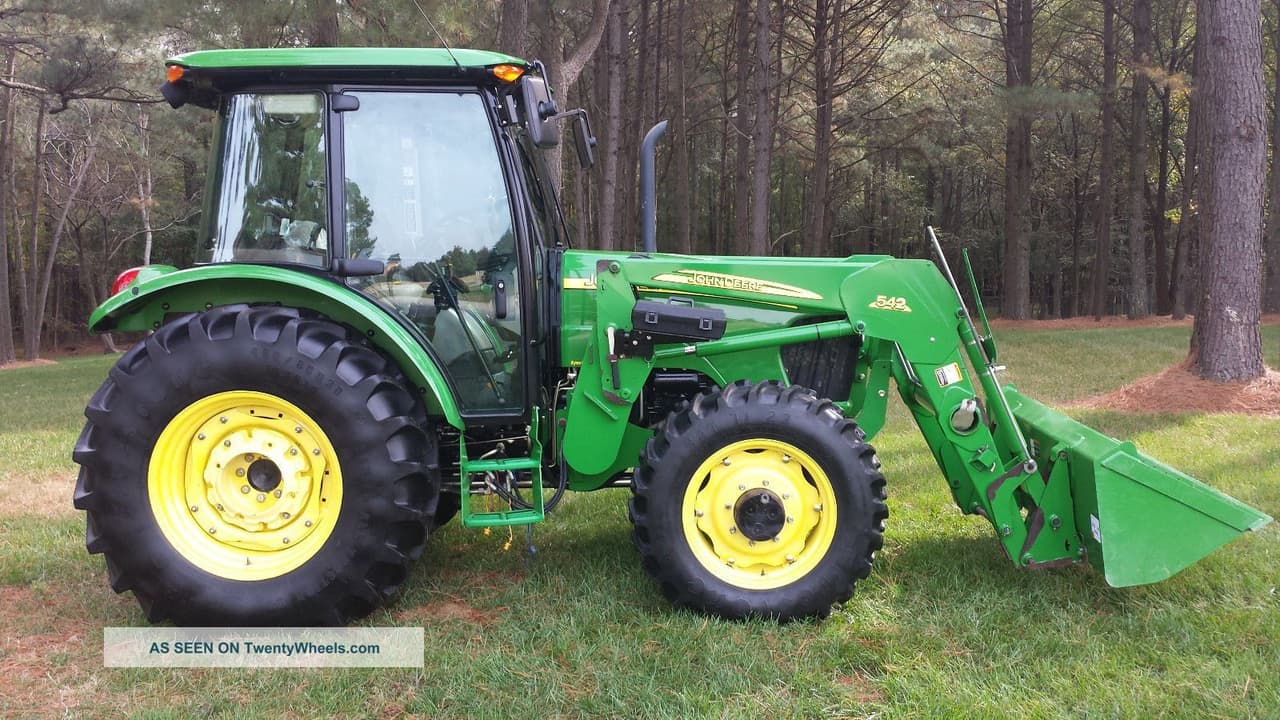

John Deere 5625 Tractor

John Deere 5625 vs. Similar Tractors

Power Output

Above Average

Greater than 71% of similar tractors.

Hitch Capacity

Average

Greater than 61% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 4045
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 278
Bore (in): 4.19
Stroke (in): 5
Rated RPM: 2400
Power Output (hp): 81

Transmission

Type: Partially synchronized
Forward Gears: 9
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): -
Width (in): 82.3
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Power
Coolant Capacity (qts): 11.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2012
Hitch Type: -
Hitch Category: II/I
Hitch Position: -
Hitch Capacity (lb): 3373 lbs
Operator Station Type: Optional Open, Cab, or Isolated Open Operator Station (IOOS)
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Open center
