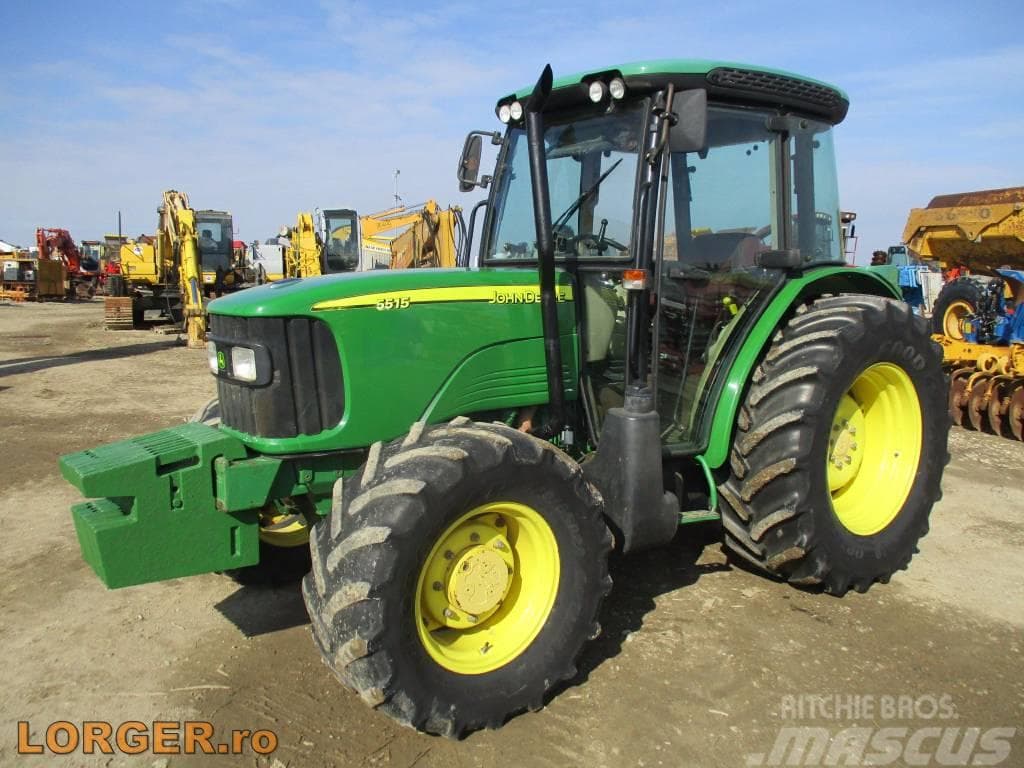

John Deere 5515

Last Updated: June 2024

Overview

The John Deere 5515 is a utility tractor often chosen for general farm and property work. With a John Deere 4045TAT70 turbocharged diesel engine, this tractor offers a solid power output of 80 to 82 horsepower. The engine is liquid-cooled and operates with an electric starter, displacing 276 cubic inches with a bore and stroke of 4.19 and 5.00 inches. The rated RPM is 2300, and the transmission offers a variety of gears – with 24 forward and 12 reverse as part of the two-speed power shift function – to handle different tasks efficiently. This model features hydrostatic power steering to help navigate through various terrains. Equipped with an open-center hydraulic system and a Category 3 rear hitch, the John Deere 5515 is flexible enough to work with several attachments and implements. The tractor's weight ranges from 6724 to 7055 pounds, providing stability for a variety of jobs. Its length measures 139.76 inches, and it comes with a coolant capacity of 12.6 quarts.
Show more...

Key Specifications

Category: Utility

Power Output: 80 (ECE R24), 82 (EC 97/98)

Transmission: partially synchronized, two-speed power shift

Operating Weight: 6724 to 7055

Fuel Type: diesel

John Deere 5515 vs. Similar Tractors

Power Output
Excellent
Greater than 99% of similar tractors.
Operating Weight
Excellent
Greater than 90% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
4045TAT70
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged
Cylinders
4
Displacement (ci)
276
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
80 (ECE R24), 82 (EC 97/98)

Transmission

Type
partially synchronized, two-speed power shift
Forward Gears
24
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
139.76
Width (in)
-
Height (in)
-
Operating Weight (lb)
6724 to 7055

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
hydrostatic power
Coolant Capacity (qts)
12.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
electric
Brake Type
-
Hydraulic System Type
open center
