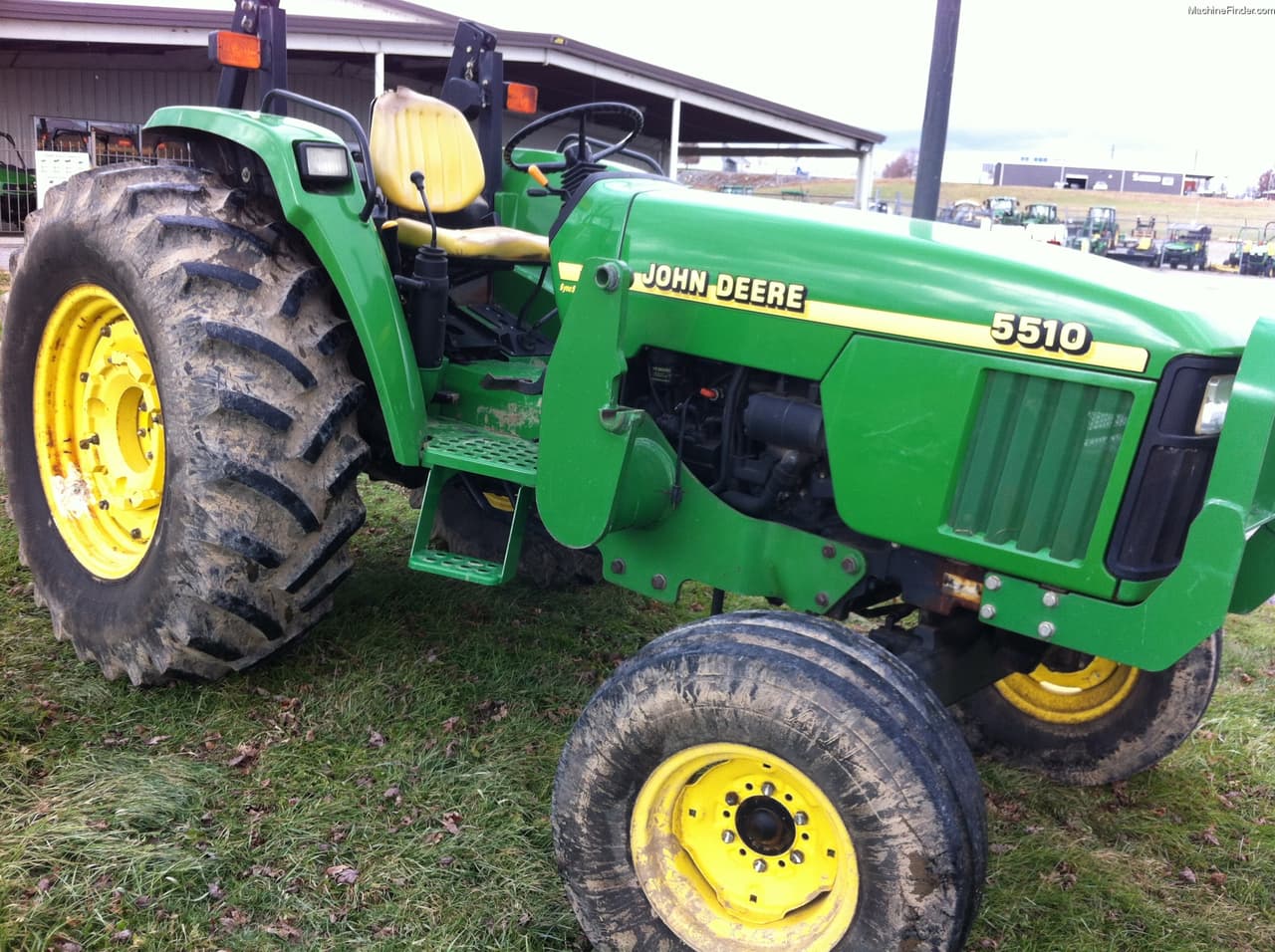

John Deere 5510

Last Updated: June 2024

Overview

The John Deere 5510 is a utility tractor manufactured by John Deere in Augusta, Georgia, USA, within the production years of 1998 to 2001. It boasts a powerful John Deere 4045T diesel engine with a 4.5 L displacement and turbocharging, contributing to 89 hp at 2400 rpm. Farmers appreciate its versatility with a choice of transmissions: an unsynchronized gear with 9 forward and 3 reverses, a partially synchronized with the same gear pattern, or a power shuttle offering 12 forward and 12 reverse gears. Complementing its robust performance are an open-center hydraulic system, hydrostatic power steering, and hydraulic wet disc brakes. It is designed to function with either two-wheel drive or mechanical front-wheel drive and can be equipped with ROPS or an optional cab for operator safety and comfort. With an operating weight ranging from 5720 to 7140 pounds, a significant lift capacity at the hitch, and optional PTO speeds, the 5510 is a reliable asset for a variety of tasks on the farm.
Show more...

Key Specifications

Category: Utility

Power Output: 89 hp

Transmission: Partially synchronized or Unsynchronized gear or Power shuttle

Drive Type: 4x2 2WD or 4x4 MFWD 4WD

Operating Weight: 5720 to 7140 pounds

Fuel Type: Diesel

John Deere 5510 vs. Similar Tractors

Power Output
Above Average
Greater than 76% of similar tractors.
Hitch Capacity
Poor
Greater than 9% of similar tractors.
Operating Weight
Above Average
Greater than 89% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
4045T or 4045TAT50
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
276 ci or 274.6 ci
Bore (in)
4.19 inches
Stroke (in)
5.00 inches
Rated RPM
2400 rpm or 2300 rpm
Power Output (hp)
89 hp

Transmission

Type
Partially synchronized or Unsynchronized gear or Power shuttle
Forward Gears
9 (Unsynchronized gear and Partially synchronized) or 12 (Power shuttle)
Reverse Gears
3 (Unsynchronized gear and Partially synchronized) or 12 (Power shuttle)
Total Gears
-

Dimensions

Length (in)
138.2 inches
Width (in)
68.5 inches
Height (in)
97.6 inches (ROPS) or 100.4 inches (Cab)
Operating Weight (lb)
5720 to 7140 pounds

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540 or 540/540E (SyncShuttle)
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4x2 2WD or 4x4 MFWD 4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
11.4 qts or 12.6 qts (ROPS) or 13.7 qts (Cab)
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2001
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
3,375 lbs at 610 mm/24 in from the rear point
Operator Station Type
Two-post ROPS or Cab (optional)
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Open center
