John Deere 5425

Last Updated: June 2024

Overview

The John Deere 5425 is a utility tractor that was produced from 2005 to 2008 in Augusta, Georgia, USA. It is available in both 2WD (4x2) and optional 4WD (MFWD) versions. This model features a John Deere 4045D engine with a displacement of 276 cubic inches, producing 81 hp at a rated RPM of 2400. The tractor can be fitted with a partially synchronized SyncShuttle transmission offering 9 forward and 3 reverse gears or an optional PowrReverser transmission with 12 forward and 12 reverse speeds. The tractor uses hydrostatic power steering and is fitted with differential hydraulic wet disc brakes for effective stopping power. Depending on the model, the operational weight ranges from 5775 lbs to 6745 lbs, and the tractor can lift up to 3374 lbs with its rear hitch. The tractor's operator station comes in variations including ROPS or an optional enclosed cab.

Key Specifications

Category: Utility

Power Output: 81 hp (gross)

Transmission: Partially synchronized or Power shuttle

Drive Type: 2WD or 4WD

Operating Weight: 5775 lbs (2WD, shipping) to 6745 lbs (4WD ROPS, operating)

Fuel Type: Diesel

Image Gallery

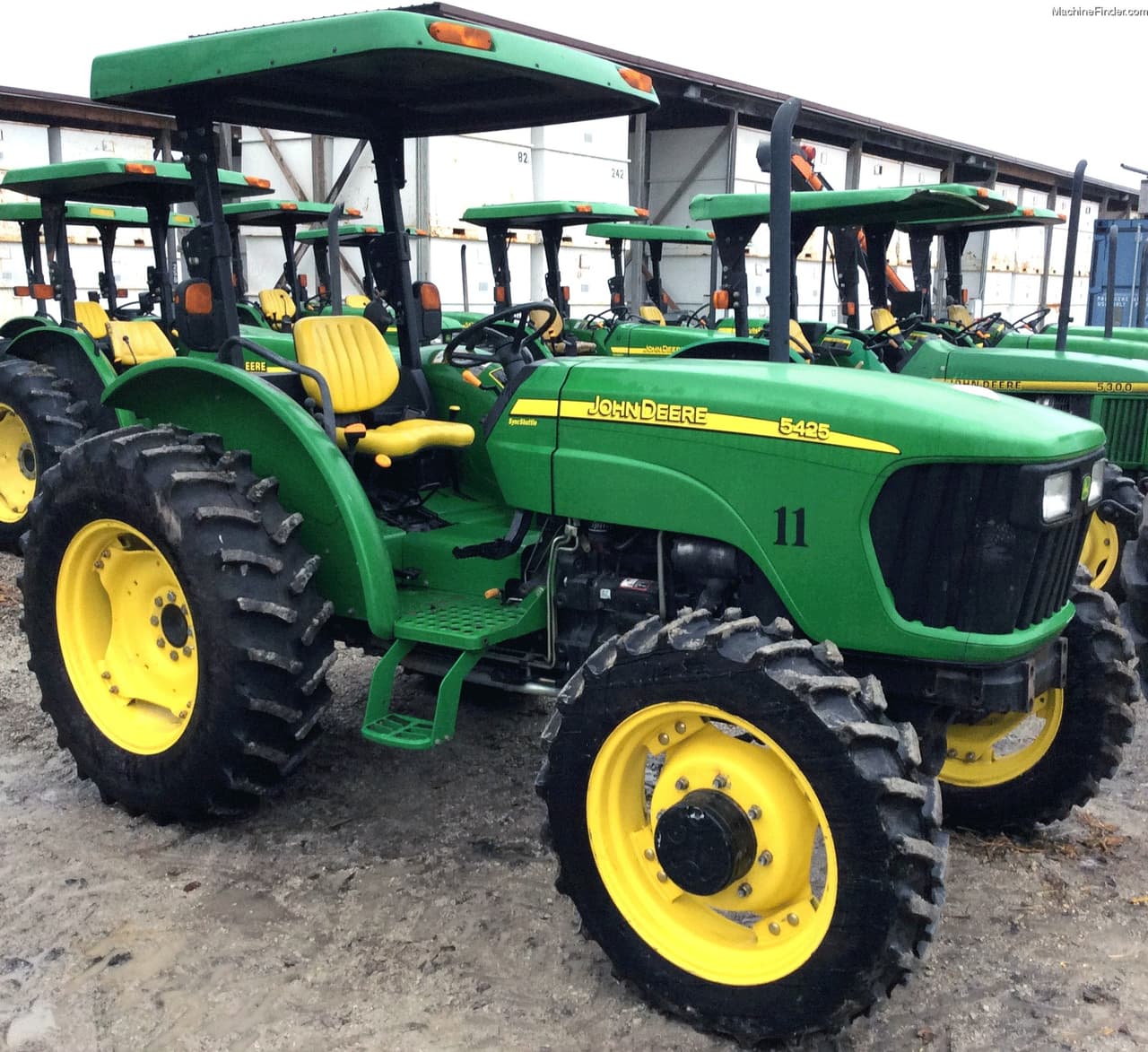

John Deere 5425 Tractor

John Deere 5425 vs. Similar Tractors

Power Output

Above Average

Greater than 71% of similar tractors.

Hitch Capacity

Average

Greater than 62% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 4045D
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspirated
Cylinders: 4
Displacement (ci): 276 ci
Bore (in): 4.19 inches
Stroke (in): 5.00 inches
Rated RPM: 2400
Power Output (hp): 81 hp (gross)

Transmission

Type: Partially synchronized or Power shuttle
Forward Gears: 9 (SyncShuttle) or 12 (PowrReverser)
Reverse Gears: 3 (SyncShuttle) or 12 (PowrReverser)
Total Gears: -

Dimensions

Length (in): 151.5 inches (for 2WD, estimated)
Width (in): 79.1 inches (estimated)
Height (in): 96.8 inches with ROPS
Operating Weight (lb): 5775 lbs (2WD, shipping) to 6745 lbs (4WD ROPS, operating)

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD (optional)
Drive Type: 2WD or 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 12 qts
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2008
Hitch Type: -
Hitch Category: II/I
Hitch Position: Rear
Hitch Capacity (lb): 3374 lbs
Operator Station Type: ROPS or Cab
Starter Type: Electric
Brake Type: Differential hydraulic wet disc
Hydraulic System Type: Open center
