John Deere 5420

Last Updated: June 2024

Overview

The John Deere 5420 is a versatile utility tractor suitable for a variety of tasks. Manufactured in Augusta, Georgia, USA from 2002 to 2004, it comes in both 2-wheel drive (2WD) and 4-wheel drive (4WD) options, with a choice of three transmission systems to cater to different working conditions. The tractor is powered by a robust John Deere 4045D 4-cylinder, liquid-cooled, natural-aspirated diesel engine offering 81 hp, ensuring sufficient power for demanding jobs. With hydrostatic power steering, this machine is designed for ease of use. The hydraulic wet disc brakes ensure safety and reliability, while the open-center hydraulic system with a flow rate of up to 15.9 gpm accommodates a variety of implements. The tractor's comfortable operator stations, available with ROPS or an enclosed cab, provide a pleasant working environment for long days in the field.

Key Specifications

Category: Utility

Power Output: 81 hp

Transmission: Collar shift with dry disc clutch or Partially synchronized with dry disc clutch or Power shuttle with wet disc clutch

Drive Type: 4x2 2WD or 4x4 MFWD 4WD

Operating Weight: 4285 lbs (2WD straddle ROPS)

Fuel Type: Diesel

Image Gallery

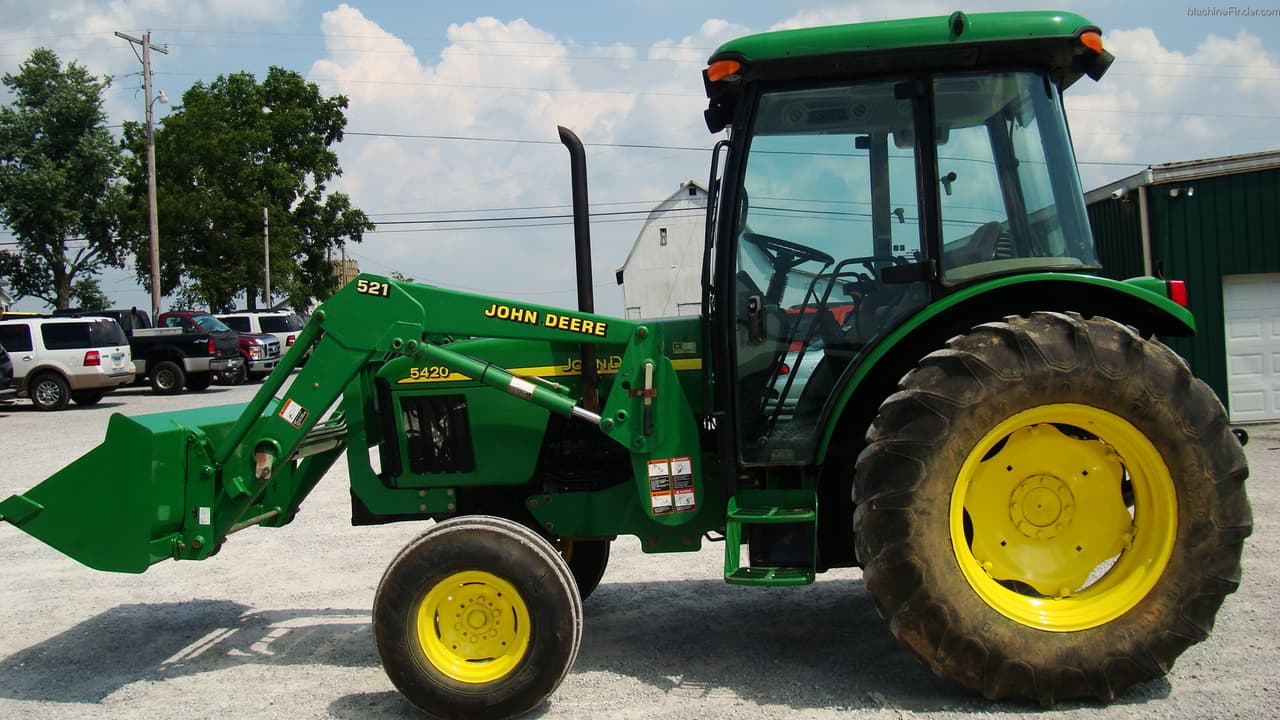

John Deere 5420 Tractor

John Deere 5420 vs. Similar Tractors

Power Output

Above Average

Greater than 71% of similar tractors.

Operating Weight

Above Average

Greater than 75% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 4045D
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspirated
Cylinders: 4
Displacement (ci): 276 ci
Bore (in): 4.19 inches
Stroke (in): 5.00 inches
Rated RPM: 2400
Power Output (hp): 81 hp

Transmission

Type: Collar shift with dry disc clutch or Partially synchronized with dry disc clutch or Power shuttle with wet disc clutch
Forward Gears: 9 forward or 12 forward
Reverse Gears: 3 reverse or 12 reverse
Total Gears: 12 total or 24 total

Dimensions

Length (in): 151.5 inches (ROPS)
Width (in): 74.1 inches (ROPS)
Height (in): 96.8 inches (ROPS)
Operating Weight (lb): 4285 lbs (2WD straddle ROPS)

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 540/540E
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: 4x2 2WD or 4x4 MFWD 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 11.4 qts
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 2004
Hitch Type: II/I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: ROPS with a straddle-mount platform, ROPS with an isolated platform (IOOS) or Cab.
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Open center
