John Deere 5410

Last Updated: June 2024

Overview

The John Deere 5410 is a 2WD or 4WD utility tractor from the 5000 Ten series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 1998 to 2001. The John Deere 5410 is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and a power shuttle transmission with 12 forward and 12 reverse gears, offering the operator convenience and efficiency in tasks. Additionally, it features a hydraulic wet disc braking system, a Category 2/1 three-point hitch with 3370 lb lift capacity, and offers options between a two-post ROPS or a cab operator station. The tractor is designed for various farming tasks, and it provides reliability associated with the John Deere brand.

Key Specifications

Category: Utility

Power Output: 81 hp

Transmission: Partially synchronized

Operating Weight: 5000 lbs (2WD ROPS) | 6500 lbs (4WD Cab)

Fuel Type: Diesel

Lift Capacity: 3370 lbs

Image Gallery

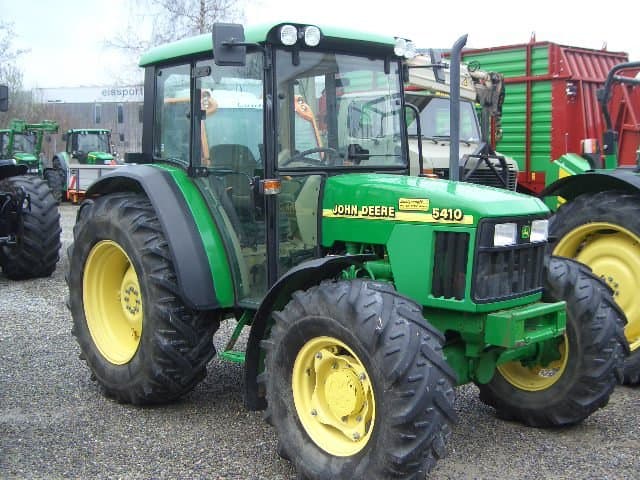

John Deere 5410 Tractor

John Deere 5410 vs. Similar Tractors

Power Output

Above Average

Greater than 71% of similar tractors.

Hitch Capacity

Average

Greater than 61% of similar tractors.

Operating Weight

Excellent

Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 4045D
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 4
Displacement (ci): 276 ci
Bore (in): 4.17 in
Stroke (in): 5 in
Rated RPM: 2400
Power Output (hp): 81 hp

Transmission

Type: Partially synchronized
Forward Gears: 12
Reverse Gears: 12
Total Gears: 24

Dimensions

Length (in): 125.6 in (2WD) | 129.9 in (4WD)
Width (in): 68.5 in
Height (in): 90.9 in (ROPS) | 100.4 in (Cab)
Operating Weight (lb): 5000 lbs (2WD ROPS) | 6500 lbs (4WD Cab)

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 540/540E
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Hydrostatic power
Coolant Capacity (qts): 10.8 qt
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2001
Hitch Type: Three-Point Hitch
Hitch Category: Category 2/1
Hitch Position: Rear
Hitch Capacity (lb): 3370 lbs
Operator Station Type: Two-post ROPS or Cab (optional)
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Open-center
