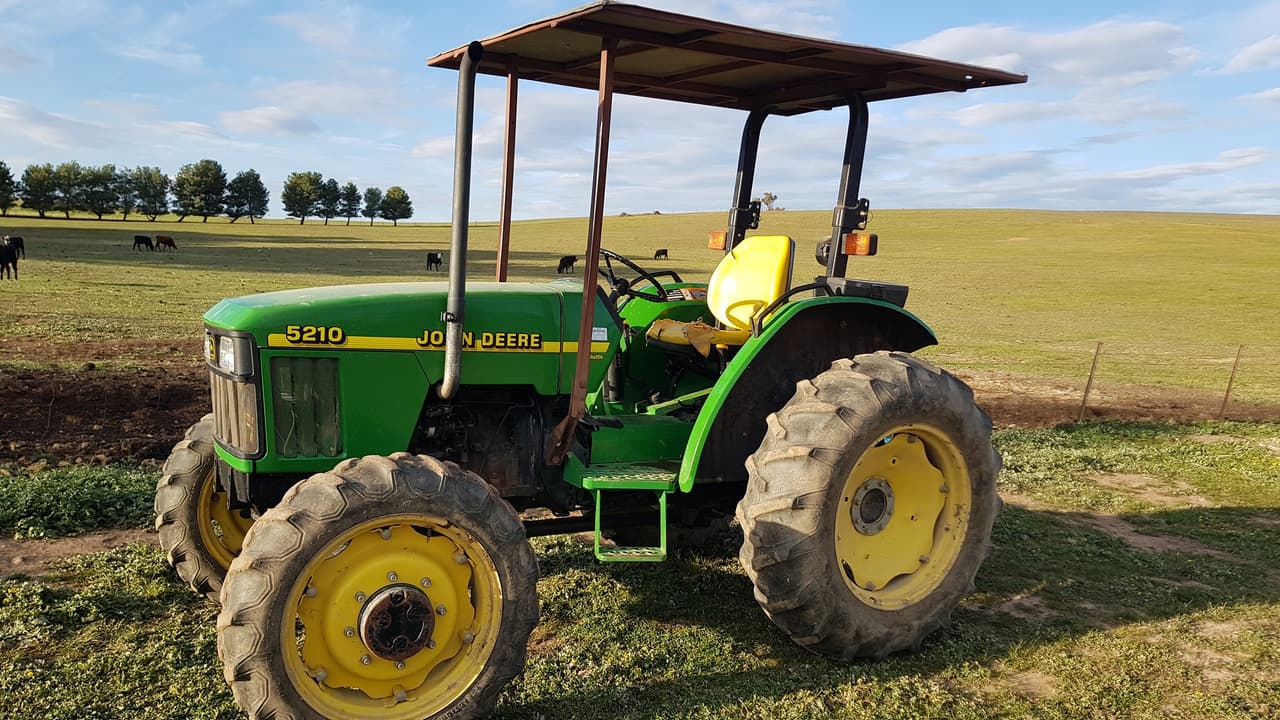

John Deere 5210

Last Updated: June 2024

Overview

The John Deere 5210 is a versatile utility tractor suited for a variety of tasks on a farm or property. Manufactured between 1998 and 2001 in Augusta, Georgia, USA, this tractor is offered with either a 2WD or 4WD configuration, ensuring adaptability across different terrain conditions. This machine leverages a reliable John Deere 3029D three-cylinder diesel engine with a displacement of 179 ci (2.9 L) and delivers power efficiently through a choice of unsynchronized gear, partially synchronized, or power shuttle transmissions. With its 53 hp engine output at 2400 rpm and a notable 119.5 lb-ft torque at 1400 rpm, it is well-equipped to handle various implements. The model 5210 provides a hydrostatic power steering system and hydraulic wet disc brakes for enhanced control and safety. It features an open center hydraulic system that supports a total flow of 18.2 gallons per minute, making it suitable for operations that demand hydraulic power. The operator can enjoy the comforts of a cabin or a two-post ROPS setup, depending on their preference and job requirements. With a three-point hitch and independent PTO system, the tractor remains a solid choice for a wide range of agricultural tasks. The inclusion of multiple PTO speeds and a high lift capacity enhances its utility.
Show more...

Key Specifications

Category: Utility

Power Output: 53 hp

Transmission: Collar Shift (unsynchronized gear) or SyncShuttle (partially synchronized) or PowrReverser (power shuttle)

Drive Type: 2WD or 4WD

Operating Weight: 2WD ROPS: 4205 lbs, 2WD Cab: 5270 lbs, 4WD ROPS: 4650 lbs, 4WD Cab: 5630 lbs

Fuel Type: Diesel

John Deere 5210 vs. Similar Tractors

Power Output
Average
Greater than 51% of similar tractors.
Hitch Capacity
Average
Greater than 62% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
3029D
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
179
Bore (in)
4.17 in
Stroke (in)
4.33 in
Rated RPM
2400 rpm
Power Output (hp)
53 hp

Transmission

Type
Collar Shift (unsynchronized gear) or SyncShuttle (partially synchronized) or PowrReverser (power shuttle)
Forward Gears
Collar Shift and SyncShuttle: 9 forward, PowrReverser: 12 forward
Reverse Gears
Collar Shift and SyncShuttle: 3 reverse, PowrReverser: 12 reverse
Total Gears
-

Dimensions

Length (in)
2WD: 122.6 inches, 4WD: 125.9 inches
Width (in)
65.4 inches
Height (in)
ROPS: 88.7 inches, Cab: 97 inches
Operating Weight (lb)
2WD ROPS: 4205 lbs, 2WD Cab: 5270 lbs, 4WD ROPS: 4650 lbs, 4WD Cab: 5630 lbs

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540 rpm
PTO Speed 2 (rpm)
540/540E rpm
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD (4WD)
Drive Type
2WD or 4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
10 qts
Front Tire Diameter (in)
2WD: 16 inches, 4WD: Unknown
Front Tire Width (in)
2WD: 6.5 inches, 4WD: Unknown
Rear Tire Diameter (in)
28 inches
Rear Tire Width (in)
13.6 inches
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2001
Hitch Type
Three-Point Hitch
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
3375 lbs
Operator Station Type
Two-post ROPS or Cab (optional)
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Open center
