John Deere 5115M

Last Updated: July 2024

Overview

The John Deere 5115M is a versatile 4WD utility tractor designed for a variety of tasks in the agricultural sector. It is powered by a four-cylinder turbocharged diesel engine manufactured by John Deere India Private Limited, with a displacement of 276 cubic inches and a vertical cylinder orientation. The engine is capable of delivering 109.96 HP at 2,200 RPM, with a maximum torque of 331 lb-ft (449 Nm) at 1,600 RPM and a torque rise of 36.1%. The engine features a compression ratio of 16.8 to 1 and is equipped with DOC, SCR, and a regenerative DPF with an underhood muffler and vertical exhaust. The tractor is equipped with a selective gear fixed ratio transmission with specific nominal travel speeds for each gear, offering 32 forward and 16 reverse gears. Independent test results from the Nebraska Tractor Test Laboratory in October 2022 provide detailed performance data, including drawbar pull, fuel consumption, and hydraulic system capabilities. The tractor has an operating weight of 9,790 lbs and is outfitted with agricultural tires. Additional features include a manufacturer address, specific PTO speeds, hydraulic system force and rates, sound level measurements, chassis tread dimensions, fuel rate, DEF consumption, and a direct engine drive hydraulic control system.

Key Specifications

Category: Utility

Power Output: 109.96

Transmission: Selective gear fixed ratio with specific nominal travel speeds for each gear

Drive Type: 4WD

Operating Weight: 9,790

Fuel Type: Diesel

Image Gallery

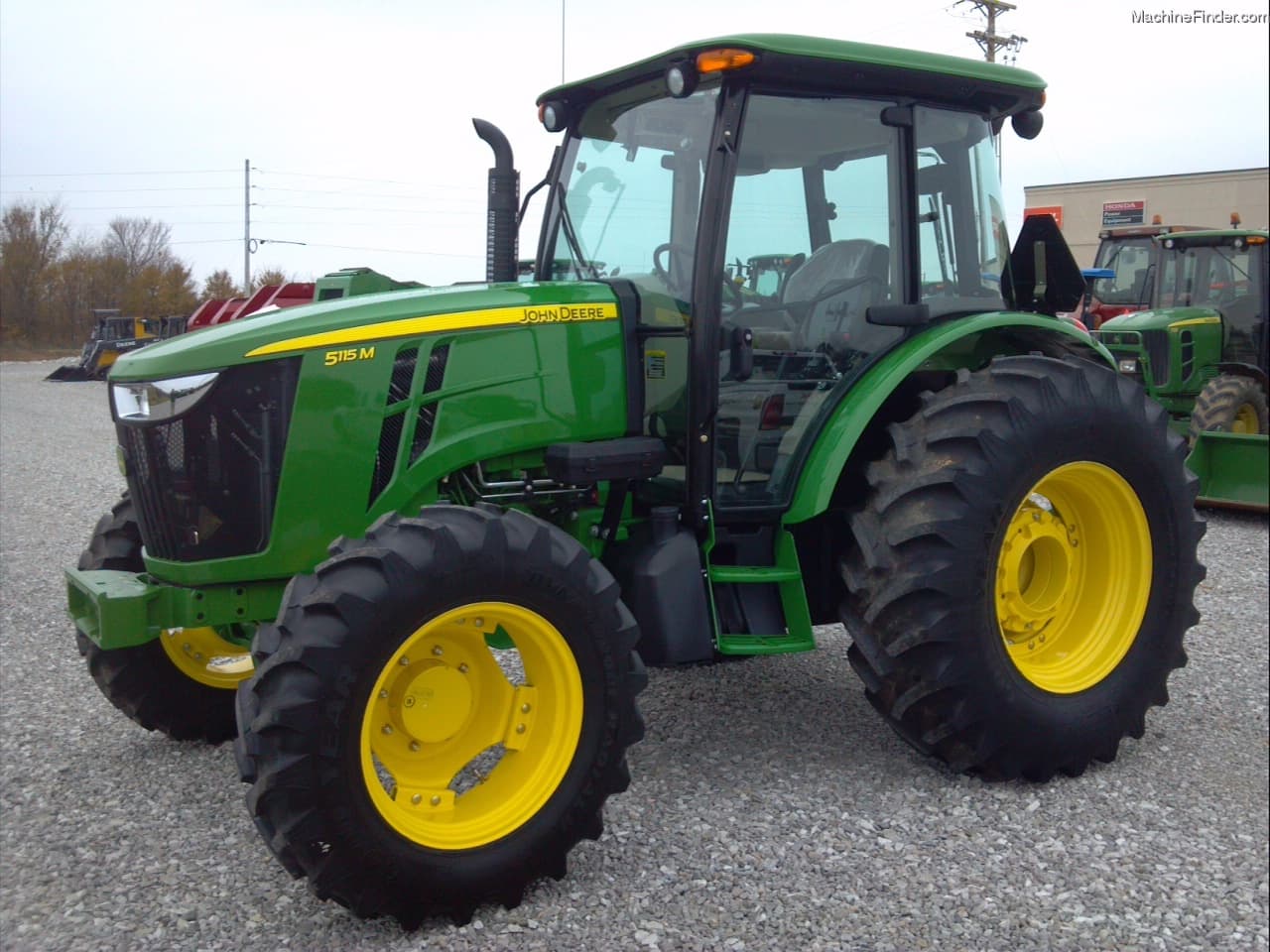

John Deere 5115M Tractor

John Deere 5115M vs. Similar Tractors

Power Output

Above Average

Greater than 87% of similar tractors.

Operating Weight

Poor

Greater than 4% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere India Private Limited
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Vertical
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 276
Bore (in): 4.19
Stroke (in): 5.00
Rated RPM: 2,200
Power Output (hp): 109.96

Transmission

Type: Selective gear fixed ratio with specific nominal travel speeds for each gear
Forward Gears: 32
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 9,790

Power Take-Off (PTO)

PTO Type: Independent with electro-hydraulic clutch
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 540E
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 2014
Hitch Type: Category II/I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): 4,795 lbs (Optional: 5,935 lbs)
Operator Station Type: Two-post foldable ROPS, Isolated Platform, Cab, Deluxe Cab (optional)
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Direct Engine Drive

Test Results

Nebraska Tractor Test Laboratory - Test Date: October 6 - 12, 2022

Maximum Power and Fuel Consumption

Maximum Power: 109.96 HP (82.00 kW) at 1951 rpm
Fuel Consumption at Maximum Power: 6.07 Gal/hr (22.96 l/h) with a fuel efficiency of 0.388 lb/hp.hr (0.236 kg/kW.h)
DEF Consumption: 0.14 Gal/hr (0.53 l/h)

Drawbar Performance

Power at Rated Engine Speed (8th Gear): 96.34 HP (71.84 kW) with a drawbar pull of 6211 lbs (27.63 kN) and a speed of 5.82 mph (9.37 km/h)
Fuel Consumption at Rated Speed: 0.440 lb/hp.hr (0.268 kg/kW.h) with a fuel efficiency of 15.99 Hp.hr/gal (3.15 kW.h/l)
Power at Reduced Engine Speed (10th Gear): 75.12 HP (56.02 kW) with a drawbar pull of 4660 lbs (20.73 kN) and a speed of 6.05 mph (9.74 km/h)

Torque and Engine Performance

Maximum Torque: 331 lb.-ft. (449 Nm) at 1600 rpm
Torque Rise: 36.1% with a power increase at 1951 rpm of 7.9%

Hydraulic Performance

Maximum Force Exerted: 7872 lbs (35.0 kN) at hitch points
Pump Delivery Rate: 19.3 GPM (73.1 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 27.6 HP (20.6 kW) at delivery pressure of 2549 psi (176 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (540 rpm): 18.13 Hp.hr/gal (3.57 kW.h/l)
Fuel Consumption: 6.05 Gal/hr (22.91 l/h) at 2100 rpm

NTTL.(2023). Nebraska OECD tractor test 2256 for John Deere 5115M PowrReverser Diesel. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from http://tractortestlab.unl.edu
