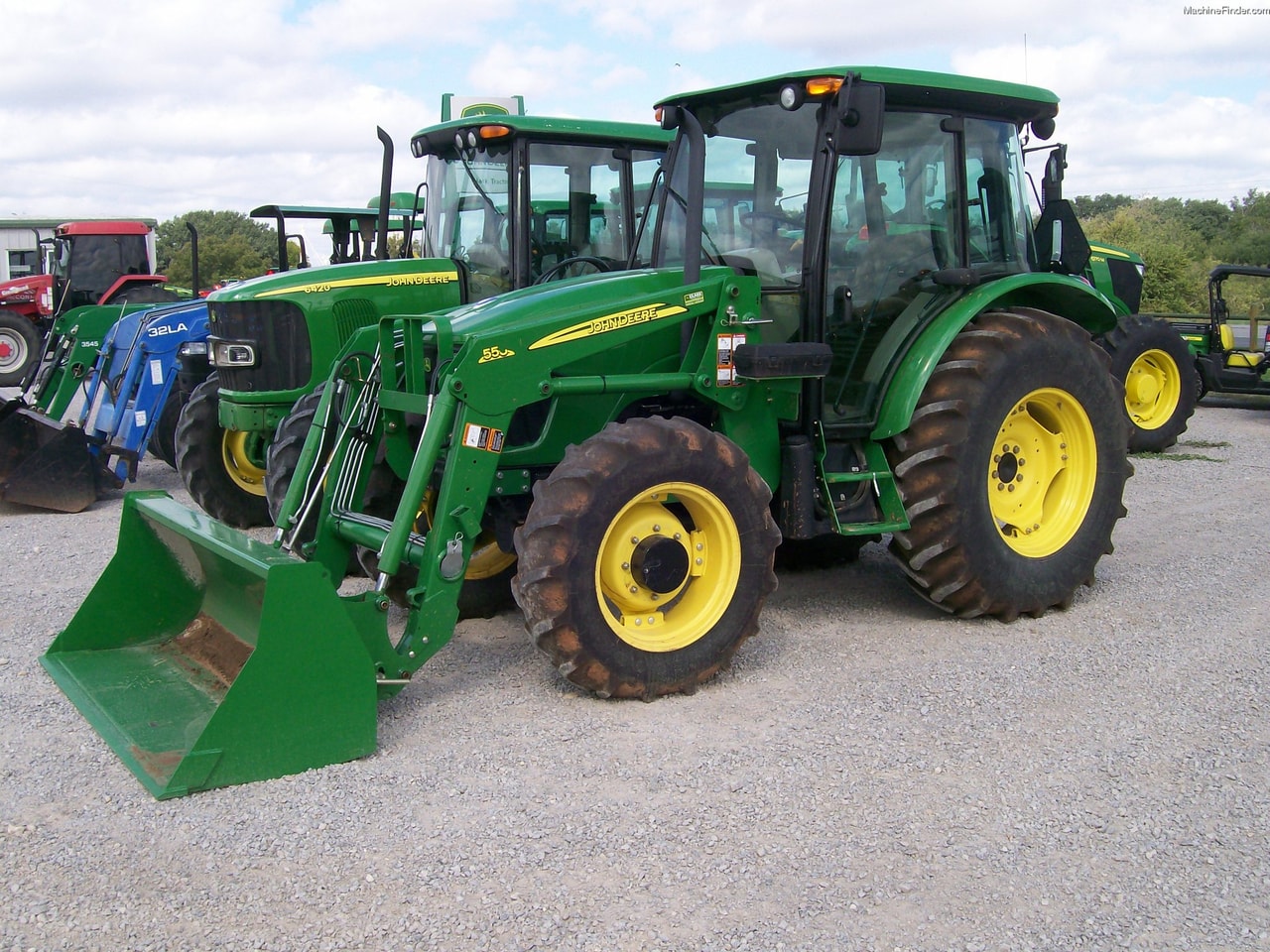

John Deere 5101E Limited

Last Updated: September 2024

Overview

The John Deere 5101E Limited is a powerful tractor designed for farm work. It has a strong engine made by John Deere that can produce 90.42 hp. This engine has 4 cylinders and is turbocharged, which means it can work hard without getting tired. The tractor uses a PowrReverser transmission with 12 forward and 12 reverse gears, making it easy to change speeds and direction.

This tractor is built to handle tough jobs. It weighs 7,515 lb and has big tires - 12.4-24 in the front and 18.4-30 in the back. These tires help it move well on different types of ground. The tractor can lift heavy things too, with a hitch that can handle up to 3,213 lb. It also has a good hydraulic system that can pump 17.3 gallons of fluid per minute, which is helpful for using tools. The PTO (power take-off) can provide 82 hp to run other farm equipment. John Deere is known for making reliable tractors, and this model is no exception.
Show more...

Key Specifications

Power Output: 90 hp (67.4 kW)

Transmission: PowrReverser

Operating Weight: 7515 lb (3409 kg)

John Deere 5101E Limited vs. Similar Tractors

Power Output

The Power Output for the John Deere 5101E Limited is Average. It is greater than 68% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the John Deere 5101E Limited is Average. It is greater than 62% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the John Deere 5101E Limited is Above Average. It is greater than 70% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the John Deere 5101E Limited is Average. It is greater than 60% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
John Deere
Model
PE4045L857425
Induction Type
Turbocharged
Cylinders
4
Displacement
276 ci (4.5 L)
Rated RPM
2400
Power Output
90 hp (67.4 kW)

Transmission

Type
PowrReverser
Forward Gears
12
Reverse Gears
12
