John Deere 5100R

Last Updated: July 2024

Overview

The John Deere 5100R is a utility tractor with a 4-cylinder, 8-valve, turbocharged diesel engine model PE4045U056990 with a displacement of 276 cubic inches. At the rated engine speed of 2201 RPM, it delivers 92.95 horsepower. The tractor features a 16-speed transmission, 4-wheel drive (MFWD 4WD) chassis, and power steering. It has a Category II hitch type and a pressure-and-flow compensated hydraulic system. The operating weight with an operator is 9735 pounds. Detailed performance data includes maximum power of 103.73 HP at 1902 RPM, maximum torque of 310 lb-ft at 1501 RPM, and various hydraulic and PTO performance metrics in both normal and economy modes.

Key Specifications

Category: Utility

Power Output: 92.95

Drive Type: 4WD

Operating Weight: 9735

Fuel Type: Diesel

Image Gallery

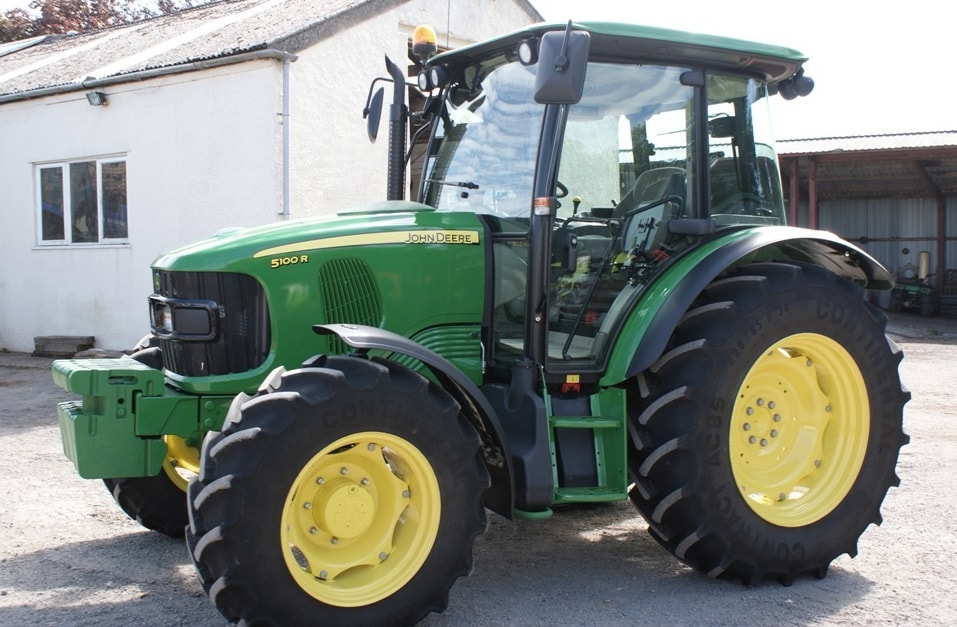

John Deere 5100R Tractor

John Deere 5100R vs. Similar Tractors

Power Output

Above Average

Greater than 82% of similar tractors.

Operating Weight

Excellent

Greater than 92% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: PE4045U056990
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: 8-valve
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 276
Bore (in): 4.19
Stroke (in): 5
Rated RPM: 2201
Power Output (hp): 92.95

Transmission

Type: -
Forward Gears: -
Reverse Gears: -
Total Gears: 16

Dimensions

Length (in): 155.5 / 147.8 (Discrepancy in data)
Width (in): 85.6 / 87 (Discrepancy in data)
Height (in): 102.2 / 106.1 (Discrepancy in data)
Operating Weight (lb): 9735

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): 29.6 / 17 (Discrepancy in data)
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Rear: Two 16.9R30; **; 12 (85) psi (kPa). Front: Two 11.2R24; **; 18 (125) psi (kPa)
Manufacture - End Year: -
Hitch Type: Category II
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Pressure-and-Flow Compensated (PFC)

Test Results

Nebraska Tractor Test Laboratory - Test Date: April 18 - 24, 2018

Maximum Power and Fuel Consumption

Maximum Power: 100.11 HP (74.66 kW) at 1851 rpm
Fuel Consumption at Maximum Power: 5.34 Gal/hr (20.22 l/h) with a fuel efficiency of 0.375 lb/hp.hr (0.228 kg/kW.h)
DEF Consumption: 0.28 Gal/hr (1.05 l/h)

Drawbar Performance

Power at Rated Engine Speed: Not specified in the provided data
Fuel Consumption at Rated Speed: Not specified in the provided data

Torque and Engine Performance

Maximum Torque: 302 lb.-ft. (410 Nm) at 1401 rpm
Torque Rise: 43.6%
Power Increase at 1851 rpm: 13.6%

Hydraulic Performance

Maximum Force Exerted: 8678 lbs (38.6 kN) at hitch points
Pump Delivery Rate: 20.9 GPM (79.3 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 31.7 HP (23.6 kW) at delivery pressure of 2614 psi (180 bar)

Economy Mode (540 PTO rpm @ 1645 engine rpm)

Power: 93.59 HP (69.79 kW) at 1645 rpm
Fuel Consumption: 4.86 Gal/hr (18.40 l/h) with a fuel efficiency of 0.365 lb/hp.hr (0.222 kg/kW.h)
DEF Consumption: 0.26 Gal/hr (0.99 l/h)

NTTL. (2018). Nebraska tractor test 2193 for John Deere 5100R OC Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from http://tractortestlab.unl.edu
