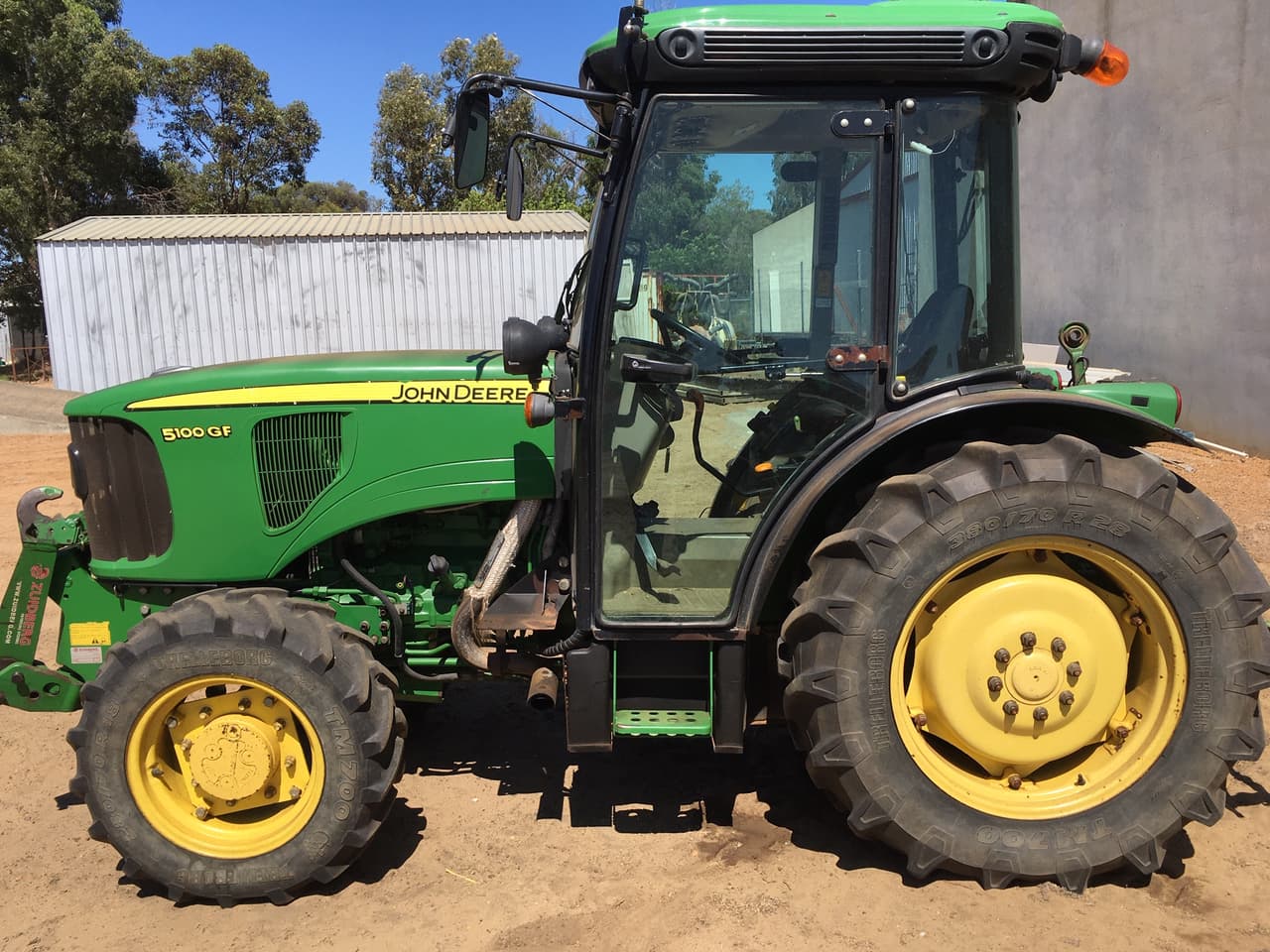

John Deere 5100GF

Last Updated: June 2024

Overview

The John Deere 5100GF is an orchard/vineyard tractor that's designed with a 4x2 2WD chassis and is capable of outputting up to 100 horsepower. It features a turbocharged aftercooled diesel engine, manufactured by John Deere, which is liquid-cooled and provides a decent amount of power and torque. With a hydrostatic power steering system, it offers ease of maneuverability in tight orchard rows or vineyard lines. The tractor's transmission provides 24 forward and reverse gears, which imply versatility in a wide range of tasks. The tractor's hitch system supports category II/I implements and has a wheelbase of 85 inches, ensuring stability during operation. The John Deere 5100GF has options for both a cabin and ROPS (Roll-Over Protection Structure), catering to various safety and comfort needs. While specifics on the PTO and brakes are not provided, the open center hydraulic system is standard. The tractor appears to be well-suited for a market requiring a robust, agile, and dependable machine for specialized agriculture work.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 100

Transmission: Manual

Drive Type: 2WD

Operating Weight: 5776 to 6460

Fuel Type: diesel

John Deere 5100GF vs. Similar Tractors

Power Output
Above Average
Greater than 77% of similar tractors.
Operating Weight
Above Average
Greater than 88% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
4045HAT82
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged aftercooled
Cylinders
4
Displacement (ci)
275.5
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
100

Transmission

Type
Manual
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
153
Width (in)
79
Height (in)
104 (ROPS), 96 (cab)
Operating Weight (lb)
5776 to 6460

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
11
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Both ROPS and Cab available
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
