John Deere 5095M

Last Updated: June 2024

Overview

The John Deere 5095M utility tractor is part of the 5M series and was built by John Deere in Augusta, Georgia, USA, between 2008 and 2011. It features a John Deere PowerTech M4045 four-cylinder turbocharged diesel engine with a displacement of 276 cubic inches that delivers 95 horsepower at 2200 RPM. The 5095M model offers various transmission systems including SyncReverser, SyncShuttle Plus, PowrReverser, PowrReverser Plus, PowrQuad PLUS, and Powr8, all boasting various configurations of forward and reverse gears. Tier IV emissions standard compliance is indicated for this model. Steering is facilitated through a hydrostatic power system, and stopping power comes from hydraulic wet disc brakes. The tractor is equipped with a foldable ROPS and an optional deluxe ROPS or Cab, adapting to various operator preferences. Fuel capacity and additional specifications such as tire options and weight vary between configurations.

Key Specifications

Category: Utility

Power Output: 95

Transmission: Partially synchronized

Fuel Type: Diesel

Image Gallery

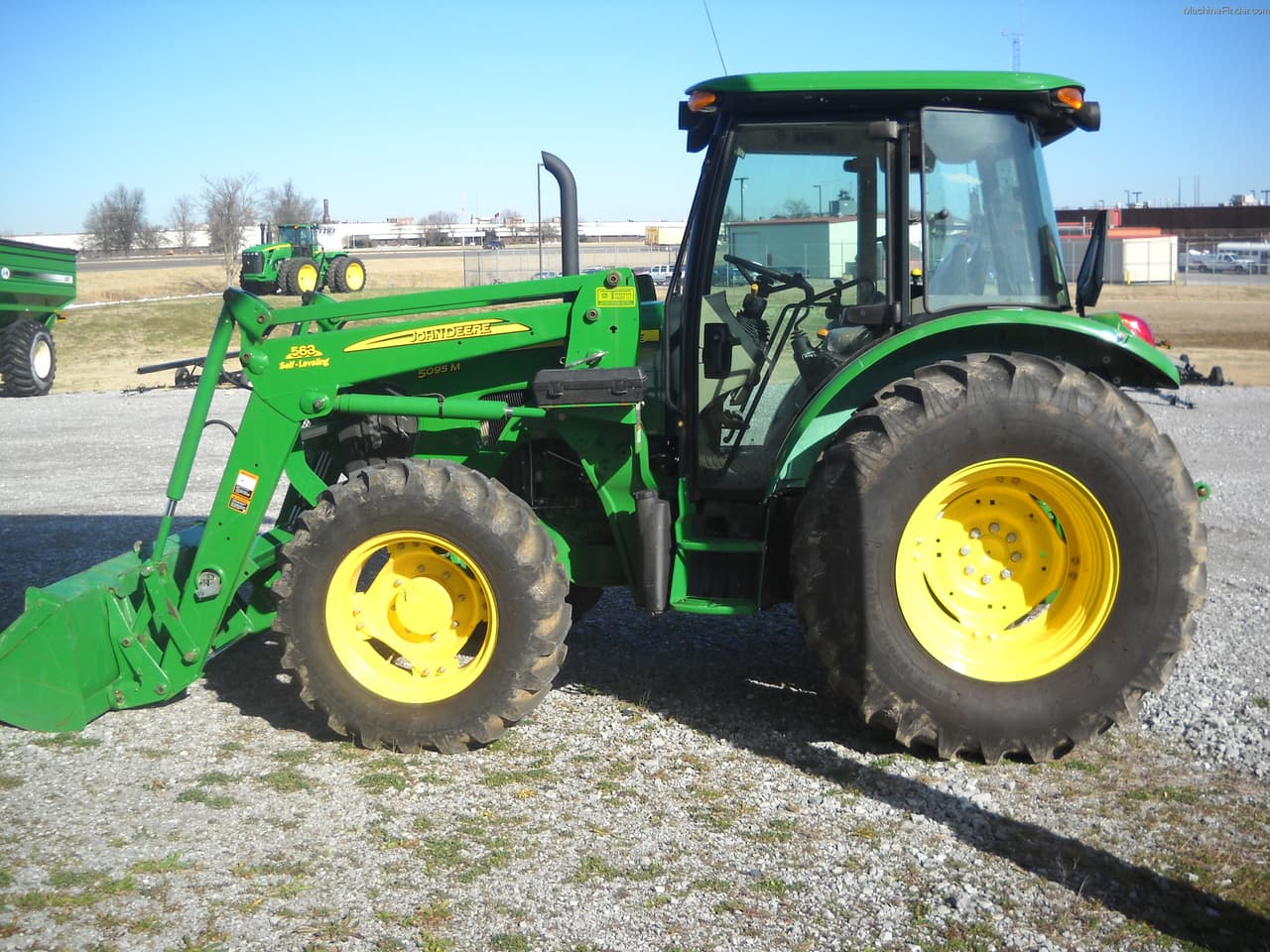

John Deere 5095M Tractor

John Deere 5095M vs. Similar Tractors

Power Output

Above Average

Greater than 80% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: PowerTech M4045
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 276
Bore (in): 4.17
Stroke (in): 5
Rated RPM: 2200
Power Output (hp): 95

Transmission

Type: Partially synchronized
Forward Gears: -
Reverse Gears: -
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: Independent with electro-hydraulic clutch
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 540E or 1000 (optional)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Hydrostatic power
Coolant Capacity (qts): 12
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2011
Hitch Type: -
Hitch Category: II/I
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Foldable ROPS, Optional deluxe ROPS or Cab
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Open center
