John Deere 5090E

Last Updated: July 2024

Overview

The John Deere 5090E is a 76.78 horsepower utility tractor equipped with a John Deere PowerTech 4045 turbocharged and intercooled diesel engine. It operates at a rated 2400 RPM and uses selective catalytic reduction (SCR) with a diesel oxidation catalyst (DOC) for emissions control. This tractor features a 12x12 PowrReverser transmission. It has a wheelbase of 92.5 inches and is fitted with standard 24-inch front and 30-inch rear agricultural tires. The tractor can come with either a ROPS or cab configuration, with the ROPS version weighing 7275 lbs and the cab version weighing 8150 lbs. Key specs include a maximum torque of 232 lb-ft at 1502 RPM with 38.1% torque rise, hydraulic pump delivery rates of 16.3 GPM at minimum pressure and 14.2 GPM at maximum hydraulic power of 22.2 HP, and sound levels of 80 dB(A) at no load and 82.2 dB(A) during transport operation with the cab option. The cooling system uses an engine coolant heat exchanger for the crankcase oil and a separate radiator for the hydraulic and transmission oil.

Key Specifications

Category: Utility

Power Output: 76.78

Transmission: PowrReverser, power shuttle

Operating Weight: 8150 (cab), 7275 (ROPS) (weight depends on ROPS vs. cab configuration); Rear 4655 lb + Front 3495 lb

Fuel Type: Diesel

Image Gallery

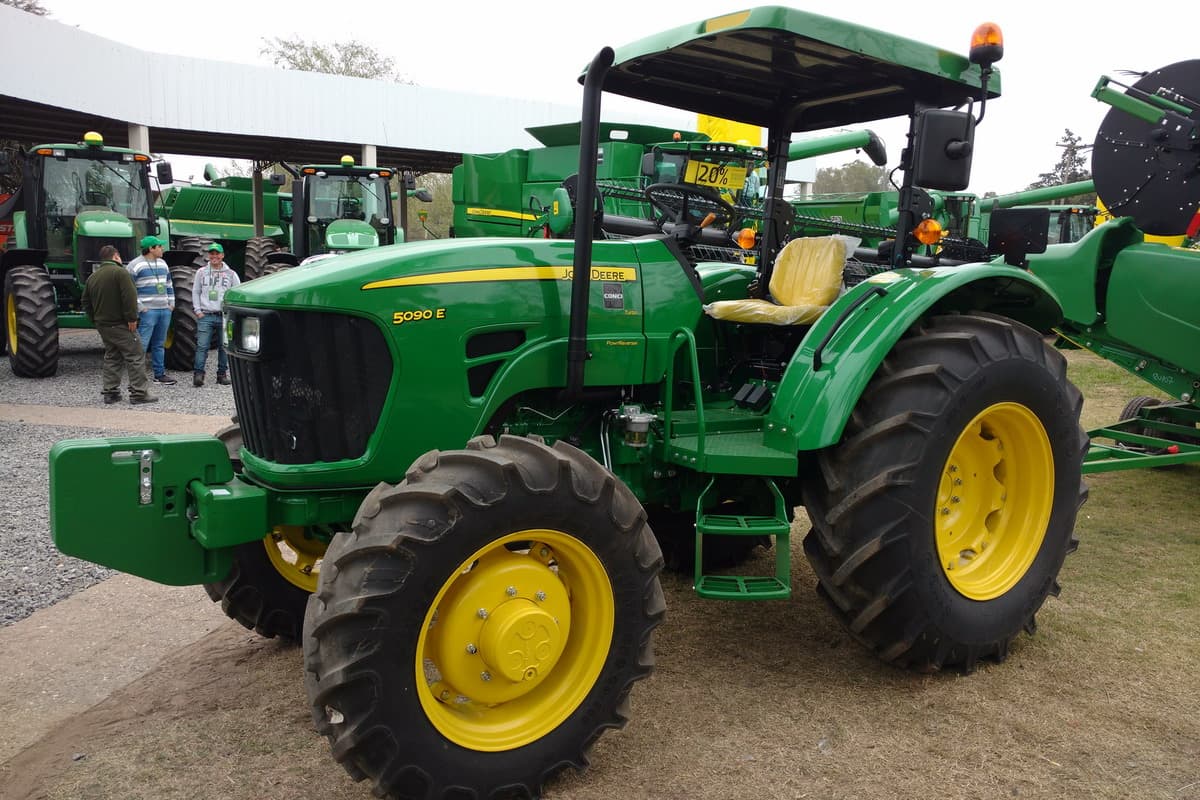

John Deere 5090E Tractor

John Deere 5090E vs. Similar Tractors

Power Output

Above Average

Greater than 77% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: PowerTech 4045
Cooling Type: Liquid-cooled with engine coolant heat exchanger for crankcase oil and separate radiator for hydraulic and transmission oil
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged with nominal boost pressure 16.0 - 18.9 psi
Cylinders: 4
Displacement (ci): 276
Bore (in): 4.19
Stroke (in): 5
Rated RPM: 2400
Power Output (hp): 76.78

Transmission

Type: PowrReverser, power shuttle
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 159.1
Width (in): 85.1
Height (in): 102.4 (cab), 101.1 (ROPS) (height depends on ROPS vs. cab configuration)
Operating Weight (lb): 8150 (cab), 7275 (ROPS) (weight depends on ROPS vs. cab configuration); Rear 4655 lb + Front 3495 lb

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): 24
Front Tire Width (in): -
Rear Tire Diameter (in): 30
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Three-Point Hitch
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open center

Test Results

Nebraska Tractor Test Laboratory - Test Date: May 2 - 6, 2019

Maximum Power and Fuel Consumption

Maximum Power (1 hour): 80.75 HP (60.21 kW) at 2199 rpm
Fuel Consumption at Maximum Power: 4.84 Gal/hr (18.34 l/h) with a fuel efficiency of 0.420 lb/hp.hr (0.255 kg/kW.h)
DEF Consumption: 0.20 Gal/hr (0.75 l/h)

Varying Power and Fuel Consumption

Power at Rated Engine Speed (2403 RPM): 76.78 HP (57.26 kW)
Fuel Consumption at Rated Speed: 5.07 Gal/hr (19.20 l/h) with a fuel efficiency of 0.462 lb/hp.hr (0.281 kg/kW.h)
DEF Consumption at Rated Speed: 0.18 Gal/hr (0.67 l/h)

Torque and Engine Performance

Maximum Torque: 232 lb.-ft. (314 Nm) at 1502 rpm
Torque Rise: 38.1%

Hydraulic Performance

Maximum Force Exerted: 3213 lbs (14.3 kN)
Pump Delivery Rate: 16.3 GPM (61.6 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 22.2 HP (16.6 kW) at delivery pressure of 2687 psi (185 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (540 rpm): 15.33 Hp.hr/gal (3.02 kW.h/l)
Fuel Consumption: 5.08 Gal/hr (19.24 l/h) at 2385 rpm

NTTL.(2019). Nebraska Tractor test 2210 for John Deere 5090E Diesel. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from http://tractortestlab.unl.edu
