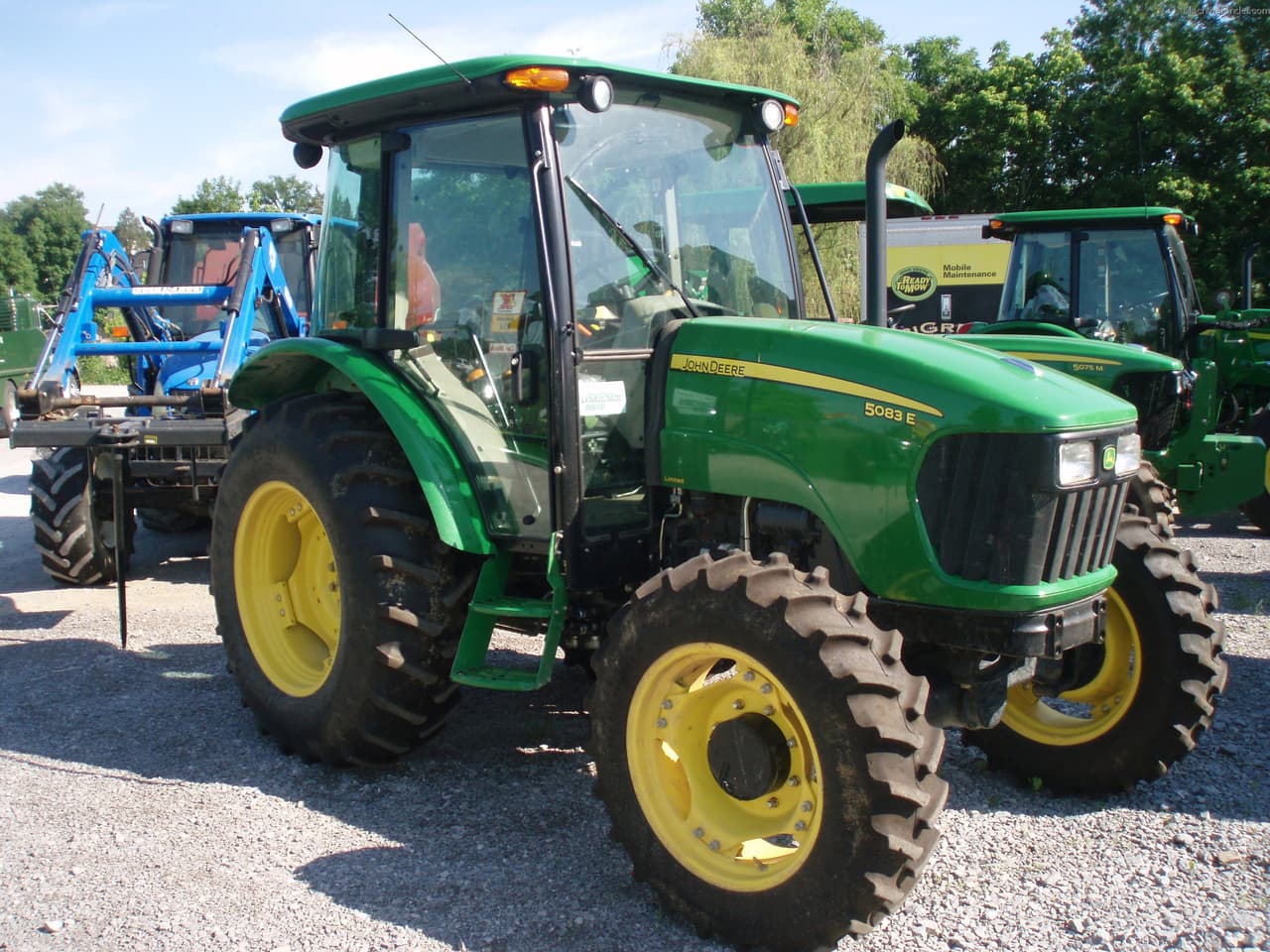

John Deere 5083E Limited

Last Updated: June 2024

Overview

The John Deere 5083E Limited is designed as a versatile utility tractor suitable for a variety of tasks in agriculture, landscaping, and similar applications. It's powered by a 4-cylinder, turbocharged 4045 engine from manufacturer 2240, which delivers 83 horsepower at the rated RPM of 2400. The engine supports a maximum displacement of 276 cubic inches. The tractor features a PowrReverser transmission with 12 forward and 12 reverse gears, facilitating smooth direction changes during operation. The hydraulic system boasts a pump flow capacity of 22.5 gallons per minute, enhancing its efficiency in various equipment operations. Equipped with category three-point hitch and a lift capacity of 3213 pounds at 24 inches, this tractor is capable of handling substantial implements. Standard R1 tires provide traction on a range of ground conditions, and the specified operating weight is 7434 pounds, indicating its substantial build for heavy-duty work. Specific tire measurements and dimensions are not provided, and the chassis and drive type, as well as other detailed specifications, remain unknown based on the data available.
Show more...

Key Specifications

Category: Utility

Power Output: 83

Transmission: PowrReverser

Operating Weight: 7434

Lift Capacity: 3213

John Deere 5083E Limited vs. Similar Tractors

Power Output
Above Average
Greater than 72% of similar tractors.
Hitch Capacity
Average
Greater than 58% of similar tractors.
Operating Weight
Average
Greater than 54% of similar tractors.

Technical Specifications

Engine

Manufacturer
2240
Model
4045
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
276
Bore (in)
-
Stroke (in)
-
Rated RPM
2400
Power Output (hp)
83

Transmission

Type
PowrReverser
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
7434

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
R1
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Three-Point Hitch
Hitch Position
Rear
Hitch Capacity (lb)
3213
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
