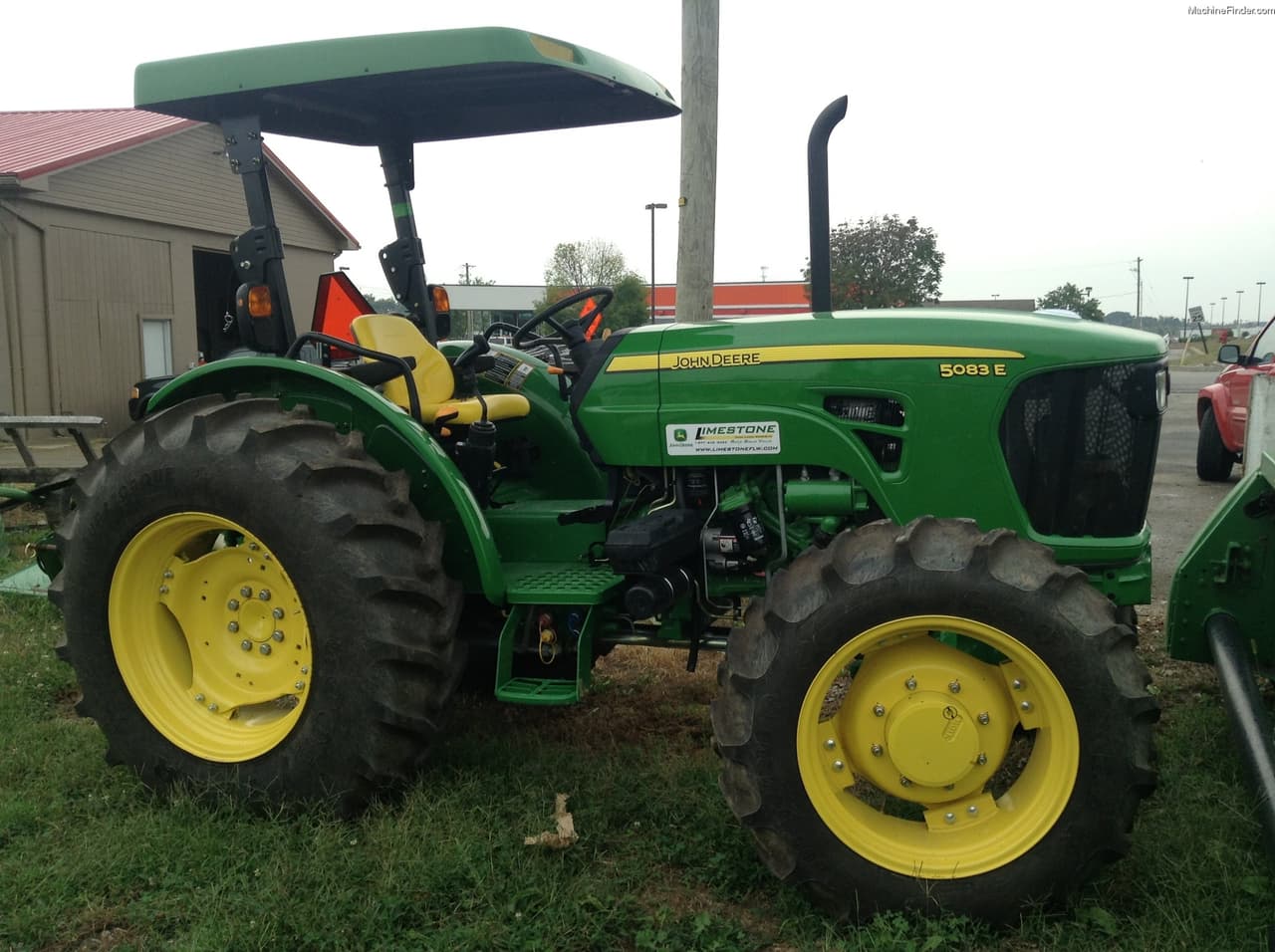

John Deere 5083E

Last Updated: September 2024

Overview

The John Deere 5083E is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine that makes 83 horsepower. This engine is turbocharged and has above-average displacement, which means it can handle heavy loads easily.

The tractor has a 4-wheel drive system and hydrostatic power steering, making it easy to control in various conditions. It comes with a partially synchronized transmission that has 12 forward and 12 reverse gears. This gives the driver lots of options for different tasks. The 5083E has a rear hitch that can lift up to 3,219 pounds, which is very high compared to other tractors. It also has a PTO (power take-off) that spins at 540 rpm, useful for running attachments.

John Deere, a well-known American company, made this tractor sturdy and comfortable. It has a cab for the driver and weighs 7,200 pounds, which is above average for its class. The tractor is 147.6 inches long, 64.6 inches wide, and 98.8 inches tall. It has features like wet disc brakes and an open center hydraulic system, which help it work well in tough farm conditions.
Show more...

Key Specifications

Category: Utility

Power Output: 83 hp (61.9 kW)

Transmission: Partially synchronized

Drive Type: MFWD 4WD

Operating Weight: 7200 lb (3266 kg)

Fuel Type: Diesel

John Deere 5083E vs. Similar Tractors

Power Output

The Power Output for the John Deere 5083E is Above Average. It is greater than 74% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the John Deere 5083E is Above Average. It is greater than 71% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the John Deere 5083E is Above Average. It is greater than 82% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the John Deere 5083E is Average. It is greater than 51% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
John Deere
Model
PowerTech 4045
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement
276 ci (4.5 L)
Bore
4.19 in (106.4 mm)
Stroke
5.00 in (127.0 mm)
Rated RPM
2400
Power Output
83 hp (61.9 kW)

Transmission

Type
Partially synchronized
Forward Gears
12
Reverse Gears
12

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Hydrostatic power
Brake Type
Independent hydraulic wet disc
