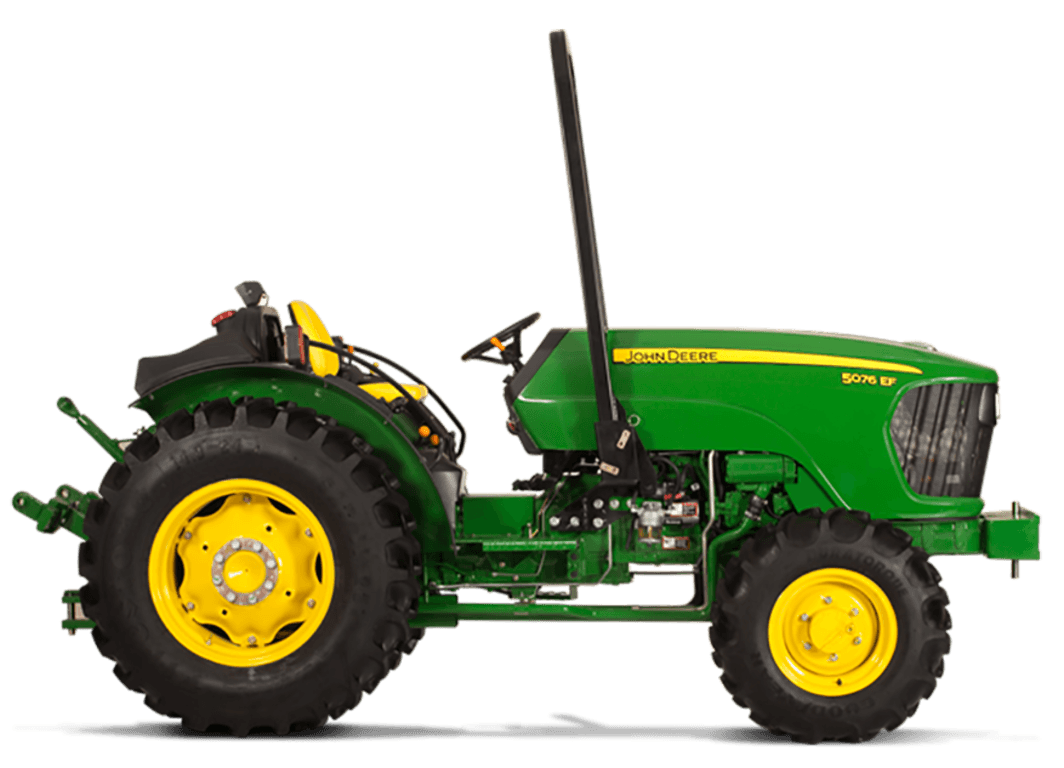

John Deere 5076EF

Last Updated: June 2024

Overview

The John Deere 5076EF is designed to meet the demands of orchard and vineyard work. With its 77 horsepower John Deere PowerTech 4045D four-cylinder diesel engine and liquid-cooling system, this tractor combines strong performance with durability. The 2WD chassis is equipped with power steering and a 9-speed transmission, including a 280mm dry disc clutch for smooth gear transitions. An open center hydraulic system supports the operations with a flow rate of 6.6 GPM. This model has a 4.19-inch bore and 5.00-inch stroke, a compression ratio of 17.6:1, a rated RPM of 2400, and a torque of 215.4 lb-ft at 1200 RPM. The tractor has a wheelbase of 81.5 inches and lengths up to 149.2 inches, paired with an approximate operating weight of 4982 lbs, ensuring stability and ease of maneuverability through narrow rows. The tractor's dimensions and weight reflect an efficient design built for optimized performance in specialized agricultural tasks.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 77

Transmission: Manual

Drive Type: 2WD

Operating Weight: 4982 (assuming 2WD weight as the chassis indicates 4x2)

Fuel Type: Diesel

Image Gallery

John Deere 5076EF Tractor John Deere 5076EF Tractor John Deere 5076EF Tractor John Deere 5076EF Tractor John Deere 5076EF Tractor John Deere 5076EF Tractor John Deere 5076EF Tractor John Deere 5076EF Tractor

John Deere 5076EF vs. Similar Tractors

Power Output
Average
Greater than 53% of similar tractors.
Operating Weight
Above Average
Greater than 74% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
PowerTech 4045D
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural (assumed due to absence of turbo/supercharger details)
Cylinders
4
Displacement (ci)
274.6
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2400
Power Output (hp)
77

Transmission

Type
Manual
Forward Gears
9
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
149.2
Width (in)
55.1
Height (in)
100.4 (assuming height w/ ROPS as it's the tallest measurement provided)
Operating Weight (lb)
4982 (assuming 2WD weight as the chassis indicates 4x2)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
11.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (assumed based on Rear Type II/I)
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Unknown (data provided did not specify; possibly ROPS due to height detail)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
