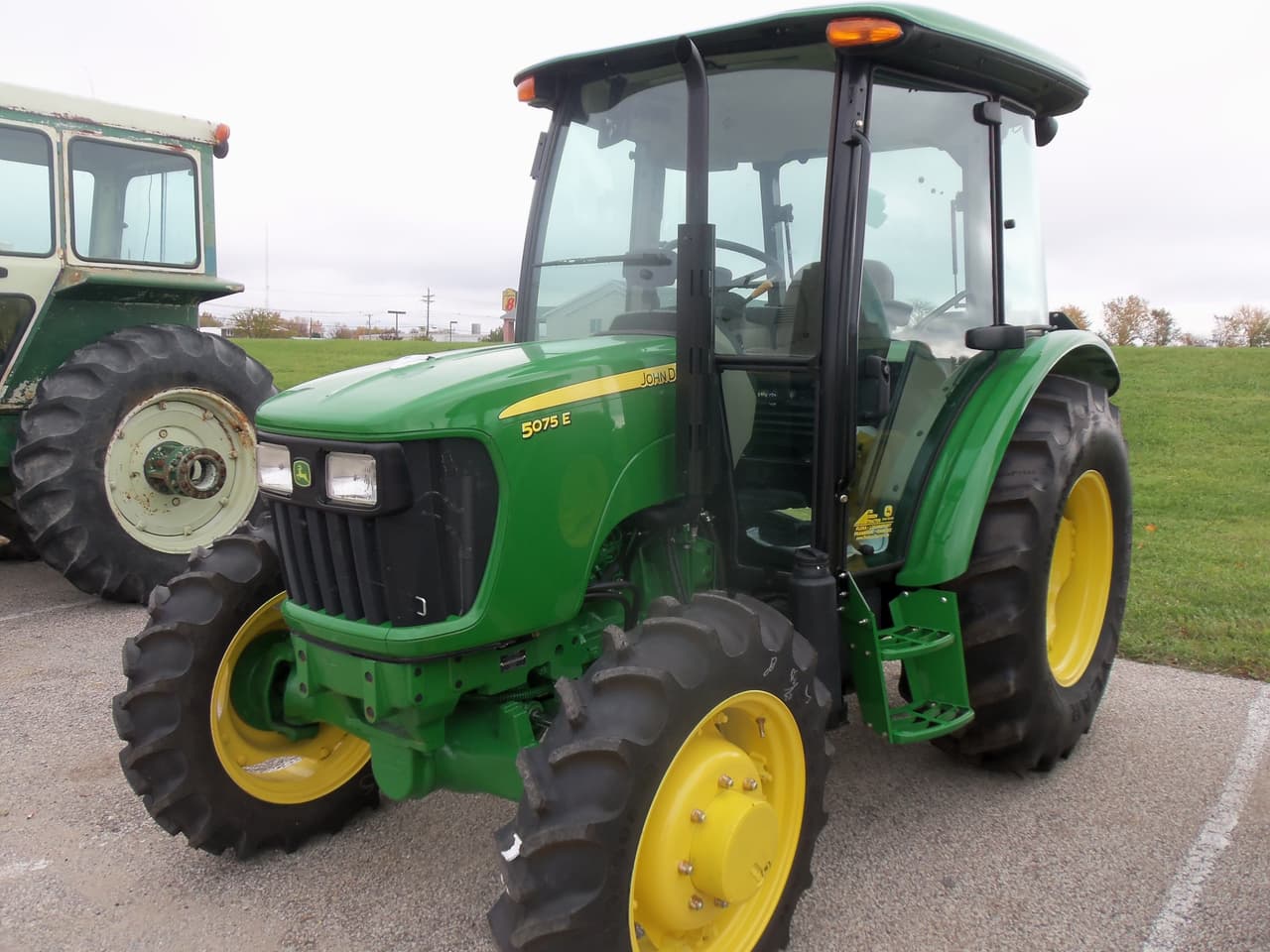

John Deere 5075E

Last Updated: September 2024

Overview

The John Deere 5075E is a versatile utility tractor designed for various farm tasks. It features a 4WD drive system and hydrostatic power steering for easy handling. The tractor is powered by a John Deere PowerTech 3029H engine, which is turbocharged and liquid-cooled. With 65.05 hp at 2100 rpm, this tractor offers above-average power for its class. The engine has 3 cylinders and a displacement of 179 ci, which is about average for similar tractors.

This tractor comes with a partially synchronized transmission, offering 9 forward and 3 reverse gears. It has a Category 2 hitch at the rear, capable of lifting up to 3591 lb, which is very high compared to other tractors in its category. The 5075E weighs 5970 lb, making it sturdy enough for most farm jobs. It measures 137.8 inches long and 57.3 inches wide, allowing it to maneuver in tight spaces. The tractor also features an open center hydraulic system and an electric starter for easy operation.
Show more...

Key Specifications

Category: Utility

Power Output: 65 hp (48.5 kW)

Transmission: SyncReverser, SyncShuttle, partially synchronized

Drive Type: 4WD

Operating Weight: 5970 lb (2708 kg)

Fuel Type: No. 2 Diesel

John Deere 5075E vs. Similar Tractors

Power Output

The Power Output for the John Deere 5075E is Average. It is greater than 62% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the John Deere 5075E is Average. It is greater than 60% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the John Deere 5075E is Average. It is greater than 52% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the John Deere 5075E is Below Average. It is greater than 15% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
John Deere
Model
PowerTech 3029H, 3029
Cooling Type
Liquid-cooled
Fuel Type
No. 2 Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement
179 ci (2.9 L)
Bore
4.19 in (106.4 mm)
Stroke
4.33 in (110.0 mm)
Rated RPM
2100
Power Output
65 hp (48.5 kW)

Transmission

Type
SyncReverser, SyncShuttle, partially synchronized
Forward Gears
9
Reverse Gears
3

Drivetrain

Chassis
4x4 FWA
Drive Type
4WD
Steering Type
Hydrostatic power
