John Deere 5070M

Last Updated: June 2024

Overview

The John Deere 5070M is a utility tractor designed for a wide range of tasks on the farm or jobsite. It comes equipped with a 4-cylinder, turbocharged diesel engine with a displacement of 276 cubic inches, capable of delivering up to 70 horsepower at rated power and 71 horsepower at its peak. The tractor offers a suite of transmission options that include a PowrReverser Plus with a two-speed power shift, a standard PowrReverser, and a partially synchronized SyncReverser, each with different gear configurations to suit various tasks. Fitted with a hydrostatic power steering system, it ensures ease of maneuvering, and the open center hydraulic system supports the use of various implements. The operator can comfortably manage the tractor from the cab, which offers protection from elements and a clear vantage point for day-to-day operations. With an operating weight of 8157 lbs and a robust chassis, this tractor is designed for effective performance and reliability.

Key Specifications

Category: Utility

Power Output: 70 (Rated Power), 71 (Maximum Power) - Assumed to be the same due to close proximity of values.

Transmission: Multiple options available: PowrReverser Plus (two-speed power shift), PowrReverser (power shuttle), SyncReverser (partially synchronized)

Drive Type: 2WD

Operating Weight: 8157

Fuel Type: diesel

Image Gallery

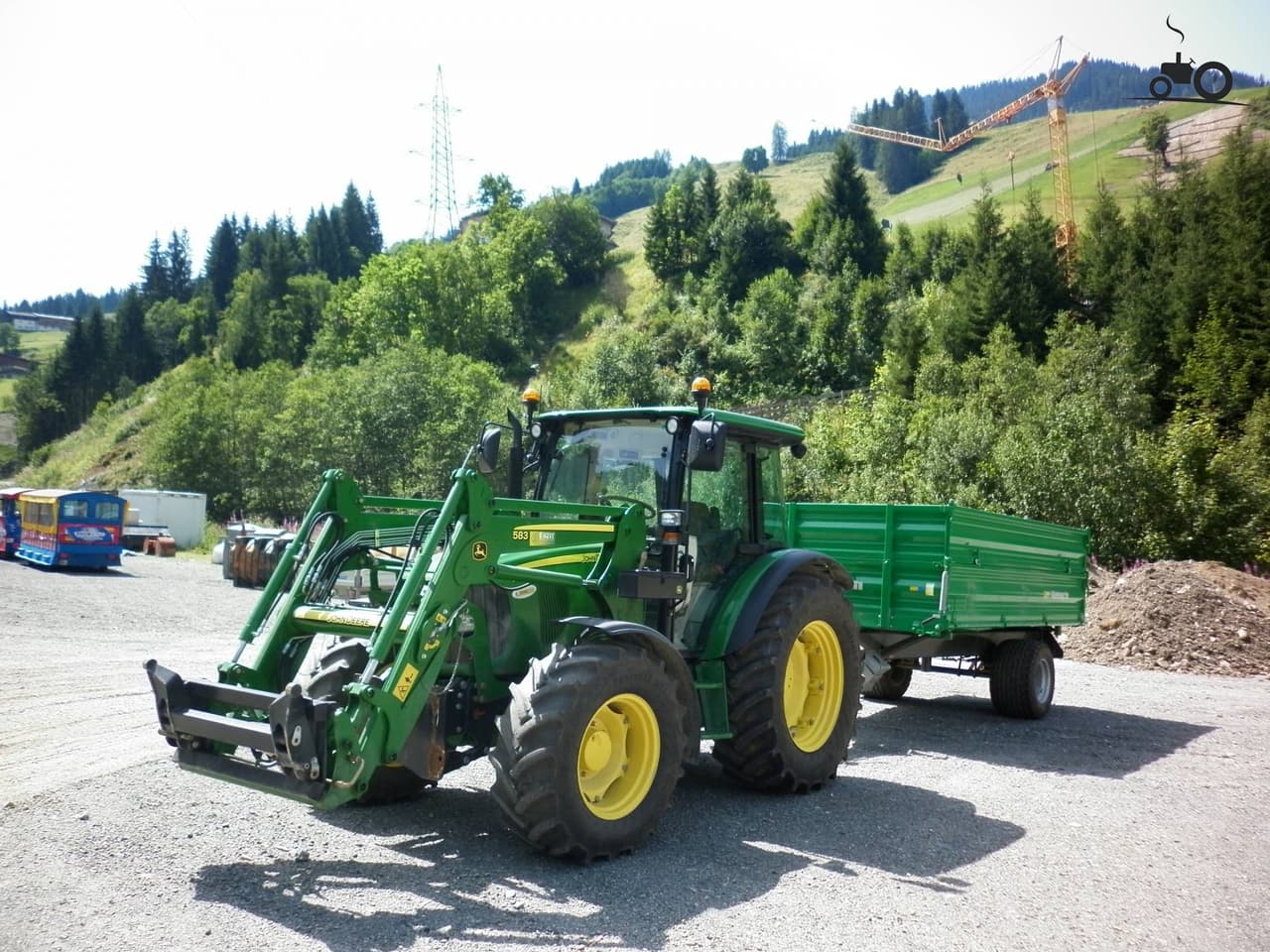

John Deere 5070M Tractor

John Deere 5070M vs. Similar Tractors

Operating Weight

Average

Greater than 57% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 4045HL286
Cooling Type: liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: diesel
Induction Type: turbocharged
Cylinders: 4
Displacement (ci): 276
Bore (in): 4.19
Stroke (in): 5
Rated RPM: 2200
Power Output (hp): 70 (Rated Power), 71 (Maximum Power) - Assumed to be the same due to close proximity of values.

Transmission

Type: Multiple options available: PowrReverser Plus (two-speed power shift), PowrReverser (power shuttle), SyncReverser (partially synchronized)
Forward Gears: 32 (with PowrReverser Plus) or 16 (with other transmission types)
Reverse Gears: 16 (with PowrReverser Plus) or 16 (with other transmission types)
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): 102.2 (with cab)
Operating Weight (lb): 8157

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): 24 (Assuming the 13.6R24, "R" represents radial construction and "24" represents rim diameter)
Front Tire Width (in): 13.6
Rear Tire Diameter (in): 34 (Assuming the 16.9R34, "R" represents radial construction and "34" represents rim diameter)
Rear Tire Width (in): 16.9
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural) type radial tires (Assumed based on the "R" in tire size)
Manufacture - End Year: -
Hitch Type: Three-point hitch (Assumed based on the Rear Type: II specification)
Hitch Category: Category II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab (implied by the presence of cab height)
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open center
