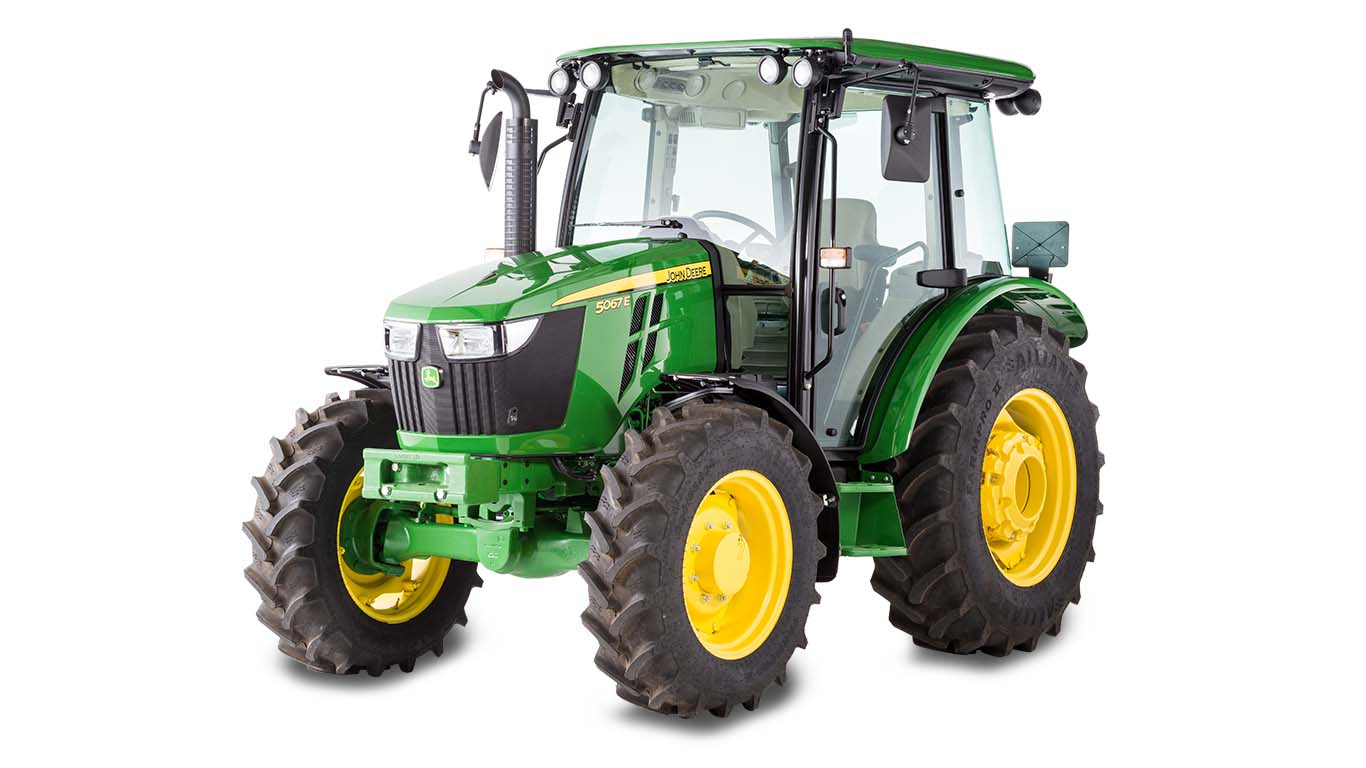

John Deere 5067E

Last Updated: June 2024

Overview

The John Deere 5067E is a tractor designed to deliver robust performance and versatility in various agricultural applications. Equipped with a 3-cylinder, liquid-cooled, turbocharged aftercooled diesel engine, this tractor boasts a displacement of 179 cubic inches, generating a power output of 67.6 horsepower at 2100 RPM. The emissions are managed through a combination of a diesel exhaust catalyst and exhaust gas recirculation to meet the Tier IV standards. The 5067E is available with both 2WD and 4WD options, and a choice of transmissions: the SyncShuttle with 9 forward and 3 reverse gears, or the PowrReverser with 12 forward and reverse gears. This John Deere model is also compatible with various tire options and comes with a type II/I hitch system, emphasizing its adaptability to various farming needs. The tractor's operating weight ranges from 5555 to 6812 pounds, and it maintains a stable presence with a wheelbase of 80.7 inches.
Show more...

Key Specifications

Power Output: 67.6

Operating Weight: 5555 to 6812

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
John Deere
Model
3029 EWR
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
3
Displacement (ci)
179
Bore (in)
4.19
Stroke (in)
4.33
Rated RPM
2100
Power Output (hp)
67.6

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
143.3
Width (in)
-
Height (in)
-
Operating Weight (lb)
5555 to 6812

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
