John Deere 5045E

Last Updated: June 2024

Overview

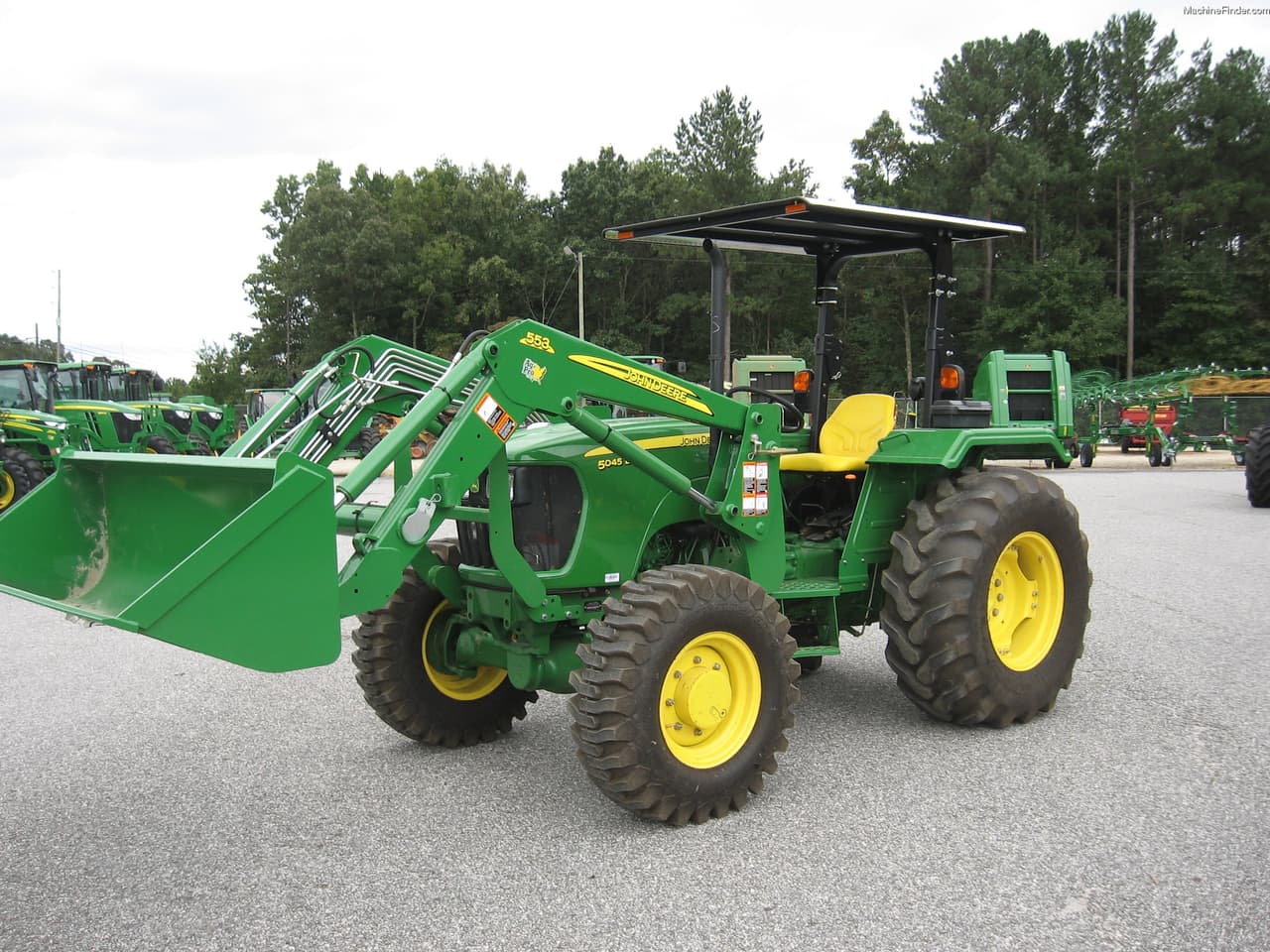

The John Deere 5045E is a utility tractor that is designed for a variety of tasks in the agricultural sector. It has a chassis configuration of 4x4 MFWD 4WD, indicating a four-wheel-drive setup that enhances its capabilities over rough and uneven terrain. The tractor is equipped with a hydrostatic power steering system, making it more manageable for the operator. The heart of the 5045E is the turbocharged, liquid-cooled John Deere PowerTech 3029T engine which has a power output of 45 hp and 179 cubic inches of displacement. The tractor uses a partially synchronized transmission, although the specific number of forward and reverse gears is not specified. The hydraulic system operates under an open center type system, and it runs on different tire configurations, depending on the job at hand, ranging from agricultural to industrial purposes. The 5045E measures 137.8 inches in length and 57.3 inches in width, with a height dependent on whether the ROPS or hood is considered. The tractor's operational weight is 5070 pounds, providing significant stability during operation. Additional specifications such as PTO speeds, hitch lift capacity, and the complete list of features require further details that are not provided in this summary.
Show more...

Key Specifications

Category: Utility

Power Output: 45

Transmission: Partially synchronized

Drive Type: 4WD

Operating Weight: 5070

John Deere 5045E vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Operating Weight
Average
Greater than 43% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
PowerTech 3029T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
179
Bore (in)
4.19
Stroke (in)
4.33
Rated RPM
2400
Power Output (hp)
45

Transmission

Type
Partially synchronized
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
137.8
Width (in)
57.3
Height (in)
Unknown (Dependent on ROPS or Hood height: 93.9 or 53.8 inches)
Operating Weight (lb)
5070

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
10
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag tires (8.3-24), Lawn/Turf tires (9.5-16), Industrial tires (12.5/80-18)
Manufacture - End Year
-
Hitch Type
Category 2
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 volt
Brake Type
-
Hydraulic System Type
Open center
