John Deere 5041C

Last Updated: June 2024

Overview

The John Deere 5041C is a utility tractor that was manufactured starting in 2003. It features a 2WD (4x2) chassis and is powered by a 41 hp John Deere 3029D three-cylinder, liquid-cooled diesel engine, which has a displacement of 179 cubic inches. The power is managed through the tractor's 8-speed collar shift gearbox with 8 forward and 2 reverse gears. The steering is of power type, enhancing maneuverability and comfort. The wheelbase measures at 73.6 inches, supporting an overall length of 115.2 inches and a width of 68.5 inches. Its operating weight is 3814 pounds, and it is equipped with Category II three-point hitch at the rear. The tractor is designed to handle a variety of tasks with ease, suitable for a range of farming operations.

Key Specifications

Category: Utility

Power Output: 41

Transmission: Collar Shift Gear

Drive Type: 2WD

Operating Weight: 3814

Fuel Type: Diesel

Image Gallery

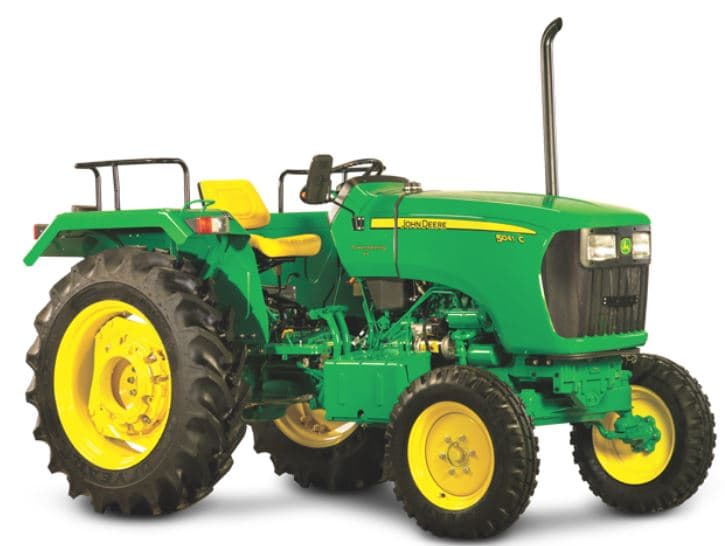

John Deere 5041C Tractor

John Deere 5041C vs. Similar Tractors

Power Output

Average

Greater than 38% of similar tractors.

Operating Weight

Average

Greater than 34% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 3029D
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 3
Displacement (ci): 179
Bore (in): 4.19
Stroke (in): 4.33
Rated RPM: 2100
Power Output (hp): 41

Transmission

Type: Collar Shift Gear
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 115.2
Width (in): 68.5
Height (in): -
Operating Weight (lb): 3814

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: Three-Point Hitch Category II
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
