John Deere 4720

Last Updated: July 2024

Overview

The John Deere 4720 is a versatile 4WD compact utility tractor that was produced by John Deere from 2005 to 2014. It features a hydrostatic transmission with infinite (3-range) forward and reverse, hydrostatic power steering, and a turbocharged diesel engine that generates 58.66 horsepower at 2404 rpm. With a choice of open station or optional cab, the 4720 can easily adapt to various farming operations. Wet disc brakes, a three-point hitch, and independent rear and mid PTO contribute to its functionality for a wide range of attachments and implements. With its comfortable operator station, ease of control, and robust build, the 4720 can handle demanding tasks despite its compact frame. This model holds a reputation for reliability and ease of maintenance among farmers and property owners alike.

Key Specifications

Category: Utility

Power Output: 58.66

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 3850

Fuel Type: Diesel

Image Gallery

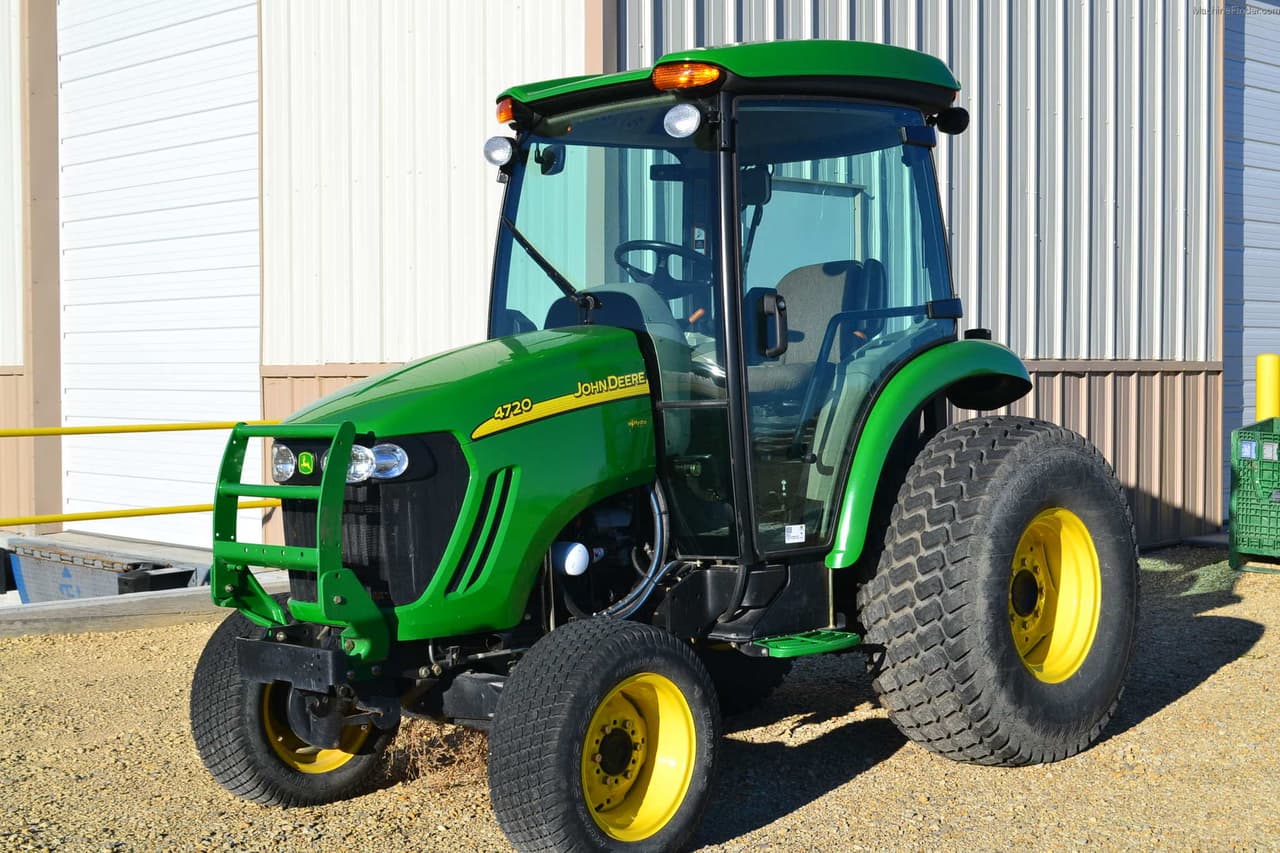

John Deere 4720 Tractor

John Deere 4720 vs. Similar Tractors

Hitch Capacity

Excellent

Greater than 94% of similar tractors.

Operating Weight

Average

Greater than 35% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 4024T
Cooling Type: Liquid-cooled
Cylinder Orientation: Vertical
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 149
Bore (in): 3.386
Stroke (in): 4.134
Rated RPM: 2400
Power Output (hp): 58.66

Transmission

Type: Hydrostatic
Forward Gears: Infinite (3-range)
Reverse Gears: Infinite (3-range)
Total Gears: -

Dimensions

Length (in): 128.2
Width (in): 65.6
Height (in): 97.2 (ROPS) / 92.4 (Cab)
Operating Weight (lb): 3850

Power Take-Off (PTO)

PTO Type: Optional Transmission or Live PTO
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 2100 (Mid PTO)
PTO Speed 3 (rpm): 540/540E (Optional after 2009)

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 6.4 (ROPS) / 8.8 (Cab)
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag: 8.00-16 (Front) Ag: 13.6-28 (Rear) / Lawn/turf and Industrial options available
Manufacture - End Year: 2014
Hitch Type: Three-Point Hitch
Hitch Category: I (Quick Attach: None)
Hitch Position: -
Hitch Capacity (lb): 2523
Operator Station Type: Two-post foldable ROPS or Cab (optional)
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center

Test Results

Nebraska Tractor Test Laboratory - Test Date: March 31 to April 16, 2009

Maximum Power and Fuel Consumption

Maximum Power at Rated Engine Speed: 58.66 HP (43.75 kW) at 2404 rpm
Fuel Consumption at Maximum Power: 4.01 Gal/hr (15.19 l/h) with a fuel efficiency of 0.482 lb/hp.hr (0.293 kg/kW.h)
Maximum Power (1 hour): 59.16 HP (44.12 kW) at 2205 rpm with a fuel consumption of 3.88 Gal/hr (14.68 l/h)

Torque and Engine Performance

Maximum Torque: 171 lb.-ft. (232 Nm) at 1453 rpm
Torque Rise: 33.4%

Hydraulic Performance

Maximum Force Exerted: 2523 lbs (11.2 kN)
Pump Delivery Rate: 11.6 GPM (43.9 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 15.2 HP (11.4 kW) at delivery pressure of 2250 psi (155 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (540 rpm): 14.62 Hp.hr/gal (2.88 kW.h/l)
Fuel Consumption: 4.01 Gal/hr (15.19 l/h) at 2404 rpm

Sound Levels

Sound Level at No Load in B Range-speed setting (4.7 mph at 2600 rpm): 86.6 dB(A)

Nebraska Tractor Test Lab, "Test 1946: John Deere 4720 S/N 65001 and Higher" (2009). Nebraska Tractor Tests. 2353. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2353
