John Deere 4560

Last Updated: June 2024

Overview

The John Deere 4560 is a versatile and durable row-crop tractor that was produced from 1992 to 1994. It features a choice of two transmissions: a 16-speed partial power shift and a 15-speed full power shift, offering flexibility in handling various farming tasks. The tractor is powered by a robust 7.6 L six-cylinder turbocharged diesel engine that provides 172 horsepower, making it capable of handling heavy loads with ease. It has an operating weight of 18,603 pounds and offers power steering, a Sound-Gard cab for operator comfort, and closed-center hydraulics with a lift capacity of up to 10040 pounds for efficient work with heavy implements. Additionally, the tractor could be fitted with a John Deere 840 loader for additional functionality.

Key Specifications

Category: Row Crop

Power Output: 172

Transmission: Partial Power Shift / Full Power Shift

Drive Type: 2WD/4WD

Operating Weight: 18603

Fuel Type: Diesel

Image Gallery

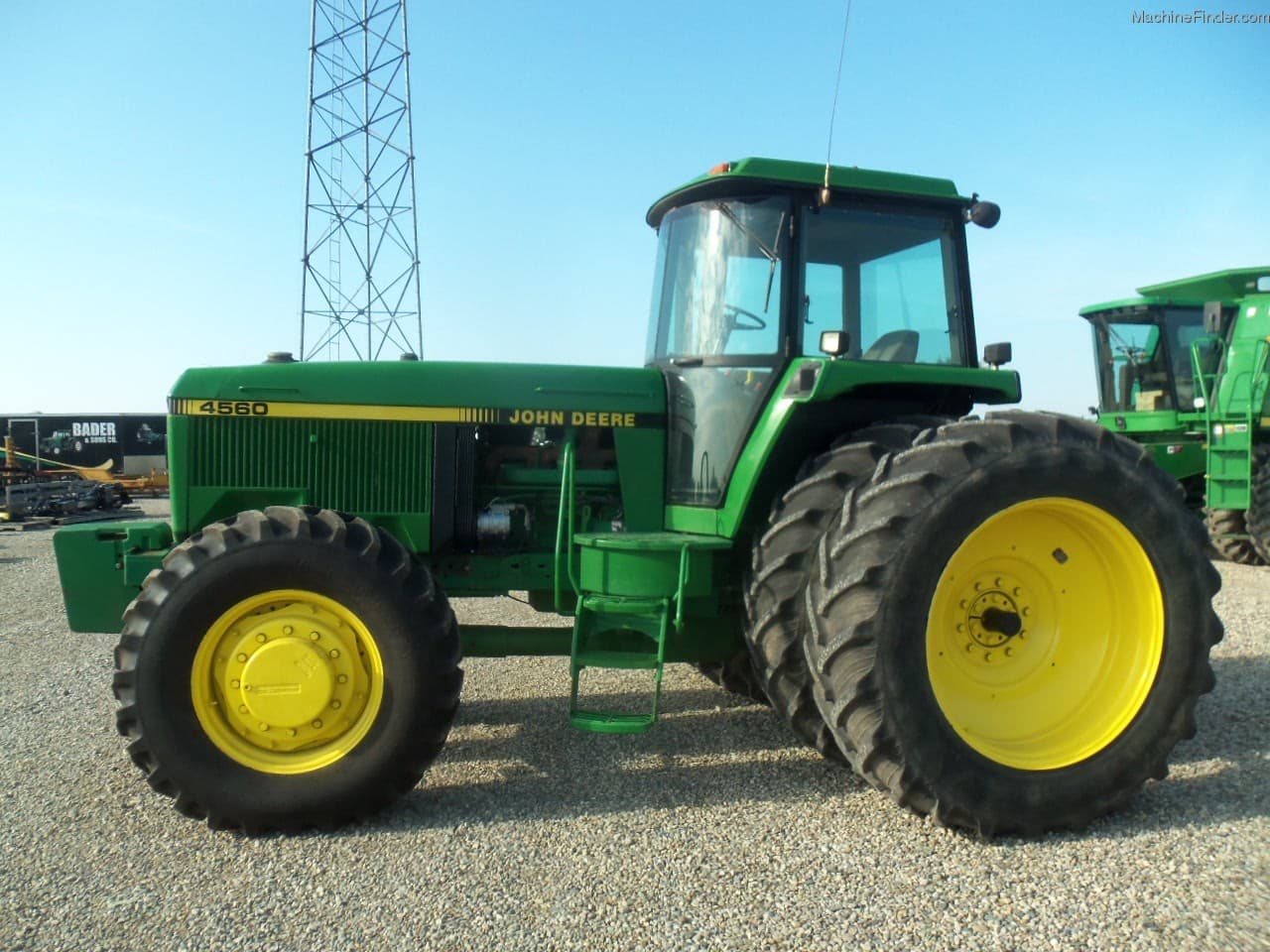

John Deere 4560 Tractor

John Deere 4560 vs. Similar Tractors

Power Output

Average

Greater than 64% of similar tractors.

Hitch Capacity

Excellent

Greater than 96% of similar tractors.

Operating Weight

Average

Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: John Deere
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: Valve-in-head
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 466
Bore (in): 4.5625
Stroke (in): 4.75
Rated RPM: 2200
Power Output (hp): 172

Transmission

Type: Partial Power Shift / Full Power Shift
Forward Gears: 16 (Partial Power Shift) / 15 (Full Power Shift)
Reverse Gears: 6 (Partial Power Shift) / 4 (Full Power Shift)
Total Gears: -

Dimensions

Length (in): -
Width (in): 118.5
Height (in): 118.8
Operating Weight (lb): 18603

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 1000
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD/4WD
Steering Type: Power
Coolant Capacity (qts): 32
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1994
Hitch Type: Three-Point Hitch
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): 8290-10040
Operator Station Type: Sound-Gard cab
Starter Type: Electric
Brake Type: Differential hydraulic wet disc
Hydraulic System Type: Closed center
