John Deere 4210

Last Updated: June 2024

Overview

The John Deere 4210 is a versatile and reliable compact utility tractor that was part of the 4000 Ten Compact series. Manufactured by John Deere in Augusta, Georgia, USA from 2002 to 2004, it features a robust Yanmar 3TNE82A diesel engine with a power output of 27 hp and a rated RPM of 2600. Available in either 2WD or MFWD, it can tackle a variety of tasks with its partial SyncShift transmission offering 9 forward and 3 reverse gears, or its eHydro transmission with infinite 3-range forward and reverse gears. With power steering and wet disc brakes, it ensures smooth operation and control. The tractor is further enhanced with convenient options such as two-post ROPS or a foldable ROPS and a range of PTO speeds, making it suitable for a variety of farming operations.

Key Specifications

Category: Utility

Power Output: 27

Transmission: Partially synchronized or hydrostatic depending on model

Drive Type: 2WD or MFWD depending on model

Operating Weight: 2375 to 2675

Fuel Type: Diesel

Image Gallery

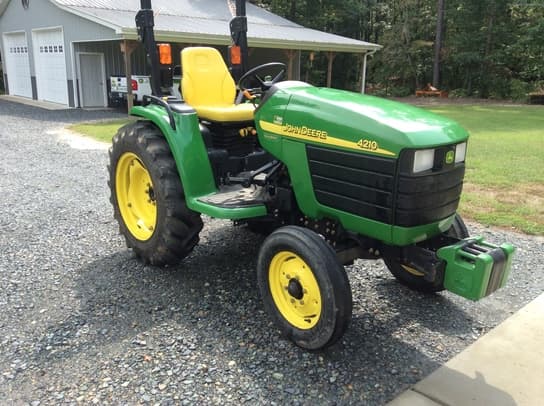

John Deere 4210 Tractor

John Deere 4210 vs. Similar Tractors

Power Output

Below Average

Greater than 21% of similar tractors.

Hitch Capacity

Average

Greater than 30% of similar tractors.

Operating Weight

Above Average

Greater than 82% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 3TNE82A
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspirated
Cylinders: 3
Displacement (ci): 81.2
Bore (in): 3.23
Stroke (in): 3.31
Rated RPM: 2600
Power Output (hp): 27

Transmission

Type: Partially synchronized or hydrostatic depending on model
Forward Gears: 9 (SyncShift) or Infinite (eHydro)
Reverse Gears: 3 (SyncShift) or Infinite (eHydro)
Total Gears: -

Dimensions

Length (in): 116.9
Width (in): 52.8
Height (in): 79.1
Operating Weight (lb): 2375 to 2675

Power Take-Off (PTO)

PTO Type: Optional Transmission or Live PTO
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 2100 (Middle PTO)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD or MFWD depending on model
Steering Type: Power
Coolant Capacity (qts): 5.6
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag tires
Manufacture - End Year: 2004
Hitch Type: Category I
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): 1698
Operator Station Type: Two-post ROPS or foldable ROPS (option)
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
