John Deere 4200

Last Updated: June 2024

Overview

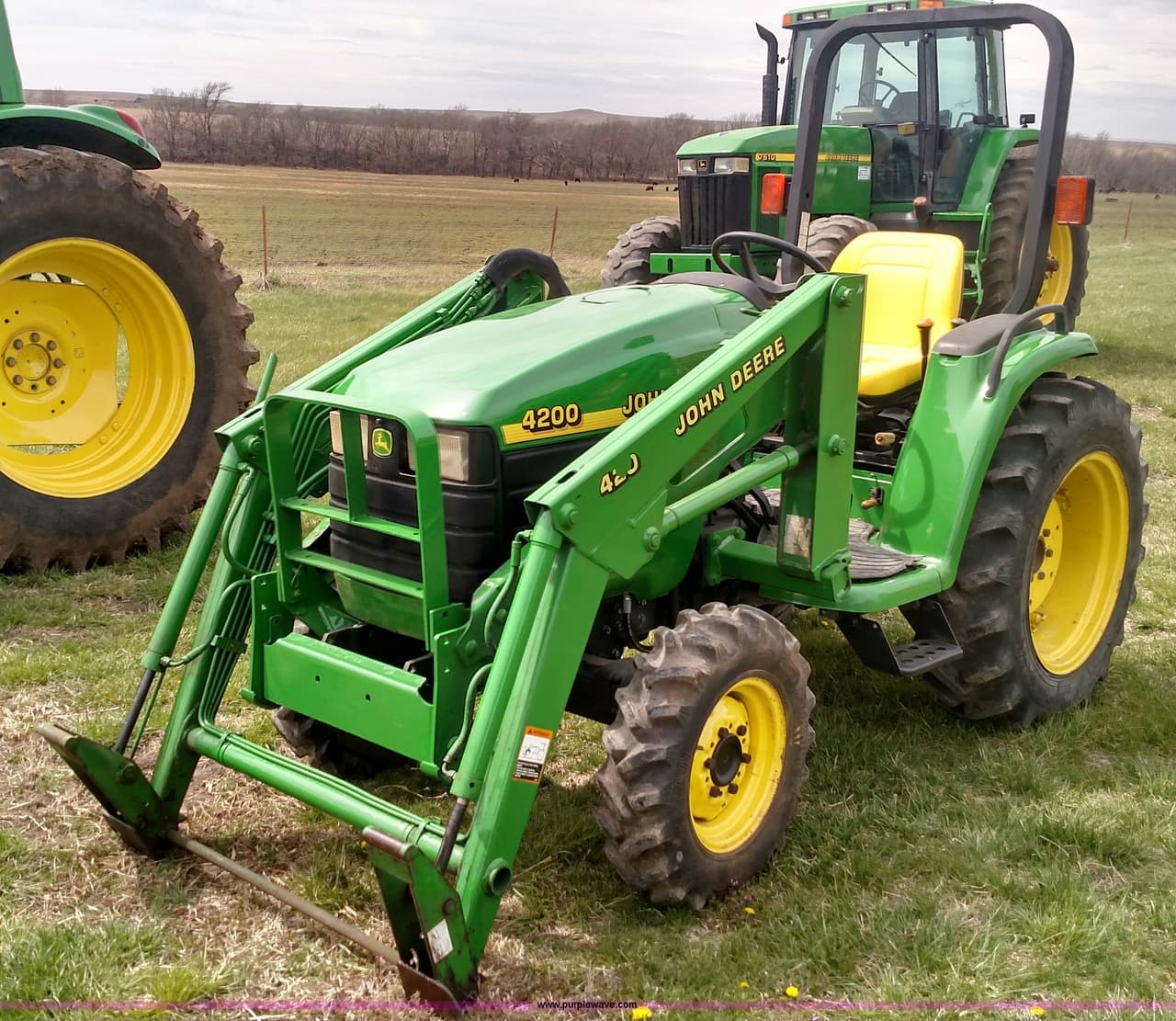

The John Deere 4200 is a versatile 2WD/4WD compact utility tractor that was part of the 4000 Compact series fabricated by John Deere in the United States between 1998-2001. It is equipped with a dependable Yanmar 3TNE78A diesel engine, capable of delivering 26.3 horsepower. This model could be fitted with either a partially synchronized (SyncShift) transmission, encompassing 9 forward and 3 reverse gears, or a hydrostatic transmission with infinite (3-range) forward and reverse speeds. Further characterized by its power steering and differential wet disc brakes, the 4200 exemplified a robust and reliable utility tractor. It was designed with a Category I three-point hitch with a lift capacity of 2198 pounds, catering to a variety of work requirements. Safety is addressed through features like the two-post ROPS station, which provided the propensity for protective structure in the event of a roll-over. This tractor particularly serves those operators needing a compact size coupled with the assurance and backing of the John Deere brand.
Show more...

Key Specifications

Category: Utility

Power Output: 26.3

Transmission: Partially synchronized or Hydrostatic

Drive Type: 2WD / 4WD

Operating Weight: 2425

Fuel Type: Diesel

John Deere 4200 vs. Similar Tractors

Power Output
Below Average
Greater than 20% of similar tractors.
Hitch Capacity
Average
Greater than 38% of similar tractors.
Operating Weight
Below Average
Greater than 19% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNE78A
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
73.5
Bore (in)
3.07
Stroke (in)
3.3
Rated RPM
2700
Power Output (hp)
26.3

Transmission

Type
Partially synchronized or Hydrostatic
Forward Gears
9 (partially synchronized)
Reverse Gears
3 (partially synchronized)
Total Gears
Infinite (3-range) (hydrostatic)

Dimensions

Length (in)
116.9
Width (in)
53.0 (2WD) / 50.0 (4WD)
Height (in)
81.0 (2WD) / 83.9 (4WD fixed) / 87.0 (folding)
Operating Weight (lb)
2425

Power Take-Off (PTO)

PTO Type
Optional Transmission or Live PTO
PTO Speed 1 (rpm)
540 (Rear) / 2100 (Mid)
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
2WD / 4WD
Steering Type
Power
Coolant Capacity (qts)
5.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
2001
Hitch Type
Three-Point Hitch (Category I)
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
2198 lbs
Operator Station Type
Two-post ROPS
Starter Type
Electric
Brake Type
Differential wet disc
Hydraulic System Type
Open Center
